H72725 Dissection Docking Station with Backdraft and Downdraft Ventilation
Image indicative of the range. Configurations may differ.
1 / 5 product images

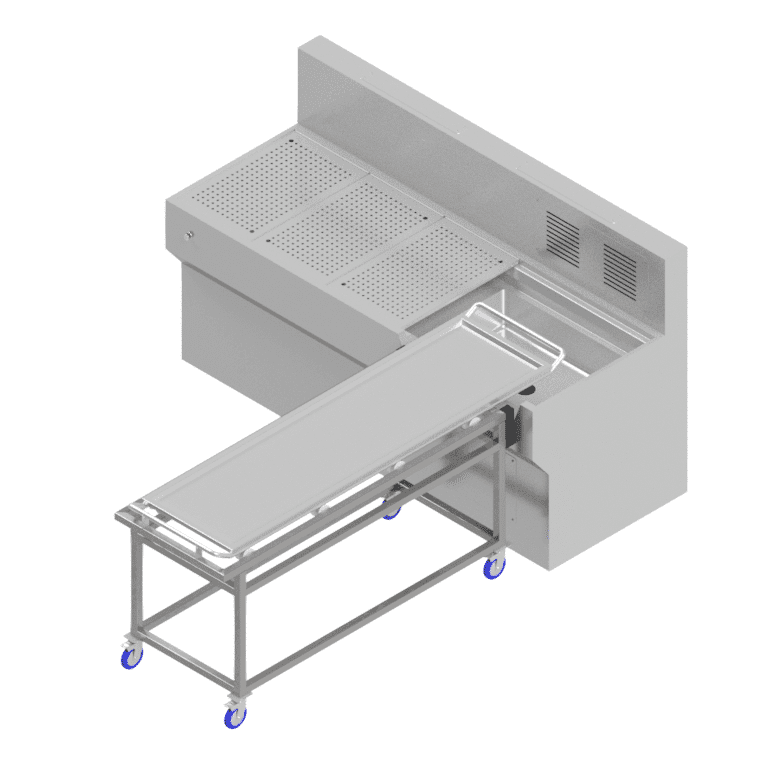

Floor-mounted dissection docking station with backdraft and downdraft ventilation for use with compatible Basterfield docking trolleys.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Share this model with a colleague or reopen its specifications later.
Shortlist this configuration, add project notes and compare your options.
Product overview
Floor-mounted dissection docking station with backdraft and downdraft ventilation for use with compatible Basterfield docking trolleys.
Designed for compatibility with Basterfield docking trolleys, the station integrates downdraft and backdraft ventilation through a 250 mm Ø duct spigot to ensure airborne particulate control. Its construction includes an enclosed case with open rear for wall installation, full 316-grade stainless steel working/contact surfaces, and a recessed sloped work area for optimal drainage.
The station features a right- or left-hand bowl with a 40 mm waste outlet (standard), or optional 90 mm outlet with macerator. A push-button sparge rinse system supports surface cleaning. Maintenance access is provided via a front service door. The ergonomic design includes a recessed shroud to improve operator posture. Optional features include 220 V macerator with isolator, thermostatic mixing valve, flexible rinse gun, and electrical outlet.
Product data
Specifications & models
Specifications
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical files
