H72731 Floor-Mounted Staining Table with Downdraft Ventilation
Image indicative of the range. Configurations may differ.
1 / 2 product images

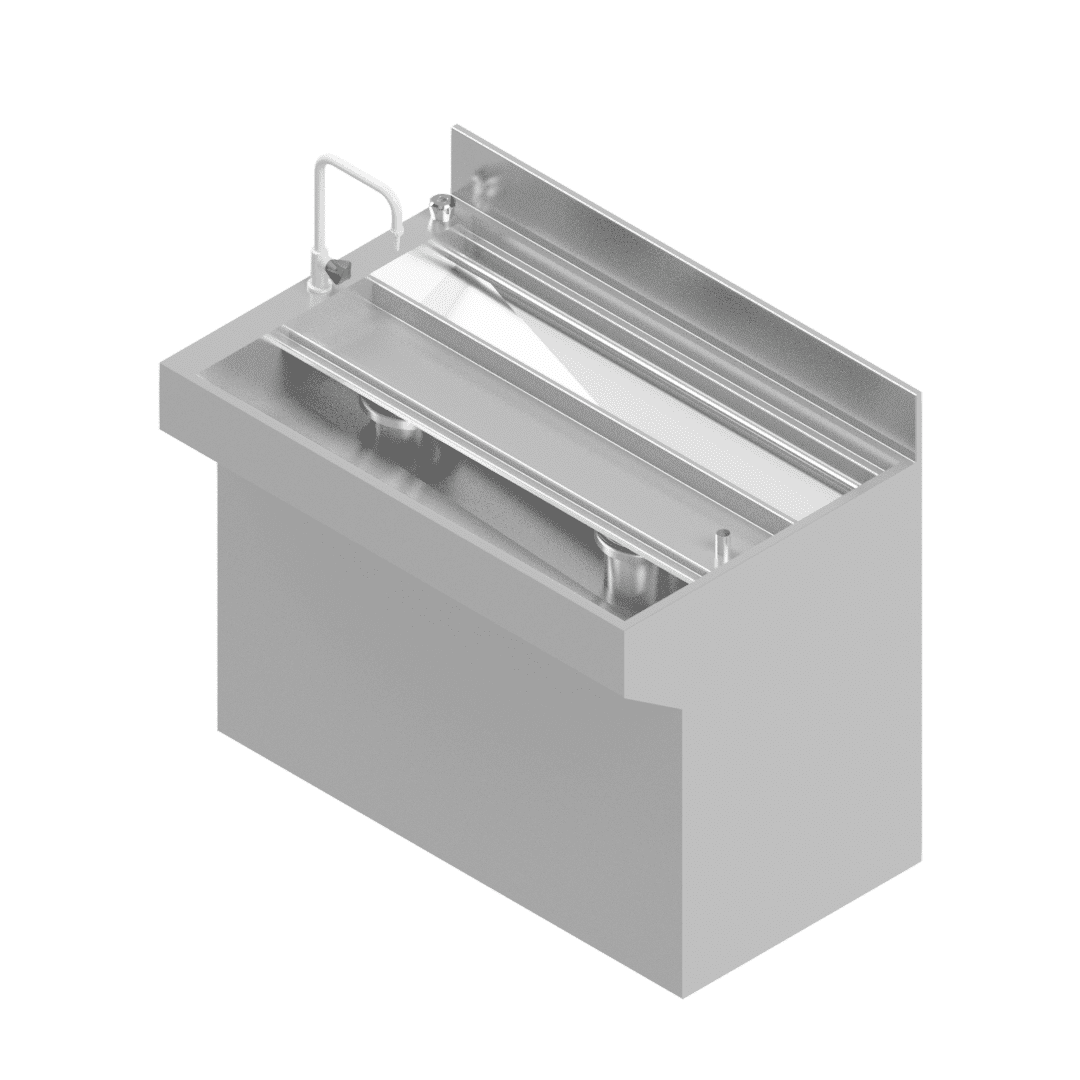

Stainless steel laboratory staining table with dual downdraft ducts, water trough and perforated work trays. Available in Grade 304 or 316.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 2 options selected
Select Material, Length to complete your configuration.
Material
Length
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The H72731 floor-mounted staining table provides a work area for laboratory staining and preparation. Dual downdraft ventilation connects to external extraction through two 150 mm diameter ducts with protective cowling.
The table is available in Grade 304 or Grade 316 stainless steel, with lengths of 1200, 1800 or 2400 mm. Overall width is 770 mm and height is 900 mm.
A continuous-flow laboratory trough has a waste outlet and overflow, while an outer trough with sparge system supports wash-down. Four coarse-perforation trays and one fine-perforation main work tray are provided. A recessed shroud allows foot space, and an access panel provides servicing access.
Confirm the water, waste and external extraction requirements when specifying the installation.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for H72731.
PDFProduct warranty
12-month warranty and claims information for H72731.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 1200 mm
- 1800 mm
- 2400 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Material
- Configurable
- Stainless Steel Grade 304
- Stainless Steel Grade 316
| Specification | Value | Configuration |
|---|---|---|
| Material |
| Configurable |
Available models & compare variants
Compare 6 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||
|---|---|---|---|---|---|
| H72731(115-1200) | H72731(315-2400) Ventilated Staining Table Floor Mounted Stainless Steel Grade 304 1200mm Length Material: Stainless Steel Grade 304. Length: 1200. Ventilated Staining Table Floor Mounted | 1200 mm | Stainless Steel Grade 304 | View specifications
| |
| H72731(115-1800) | H72731(315-2400) Ventilated Staining Table Floor Mounted Stainless Steel Grade 304 1800mm Length Material: Stainless Steel Grade 304. Length: 1800. Ventilated Staining Table Floor Mounted | 1800 mm | Stainless Steel Grade 304 | View specifications
| |
| H72731(115-2400) | H72731(315-2400) Ventilated Staining Table Floor Mounted Stainless Steel Grade 304 2400mm Length Material: Stainless Steel Grade 304. Length: 2400. Ventilated Staining Table Floor Mounted | 2400 mm | Stainless Steel Grade 304 | View specifications
| |
| H72731(315-1200) | H72731 Ventilated Staining Table Floor Mounted | 1200 mm | Stainless Steel Grade 316 | View specifications
| |
| H72731(315-1800) | H72731(315-2400) Ventilated Staining Table Floor Mounted Stainless Steel Grade 316 1800mm Length Material: Stainless Steel Grade 316. Length: 1800. Ventilated Staining Table Floor Mounted | 1800 mm | Stainless Steel Grade 316 | View specifications
| |
| H72731(315-2400) | H72731(315-2400) Ventilated Staining Table Floor Mounted Stainless Steel Grade 316 2400mm Length Material: Stainless Steel Grade 316. Length: 2400. Ventilated Staining Table Floor Mounted | 2400 mm | Stainless Steel Grade 316 | View specifications
|
Specification support
