B17642 Stainless Steel Pedestal Toilets
1 / 5 product images
Basterfield floor-mounted WC pans in 1.2 mm Grade 304 stainless steel for schools, public and institutional washrooms. B17642(P) has a horizontal P-trap outlet; B17642(S) has a vertical S-trap outlet. Both feature a brushed satin finish, integral flushing rim, back-entry flush inlet and a 102 mm outside-diameter outlet for 110 mm PVC soil pipe. Floor flanges have 6 mm fixing holes. Seat holes are provided; toilet seats and flushing systems must be specified separately.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R3,485.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 1 options selected
Select Trap Type to complete your configuration.
Trap Type
Complete the options above to review your configuration and request a quote.
Product overview

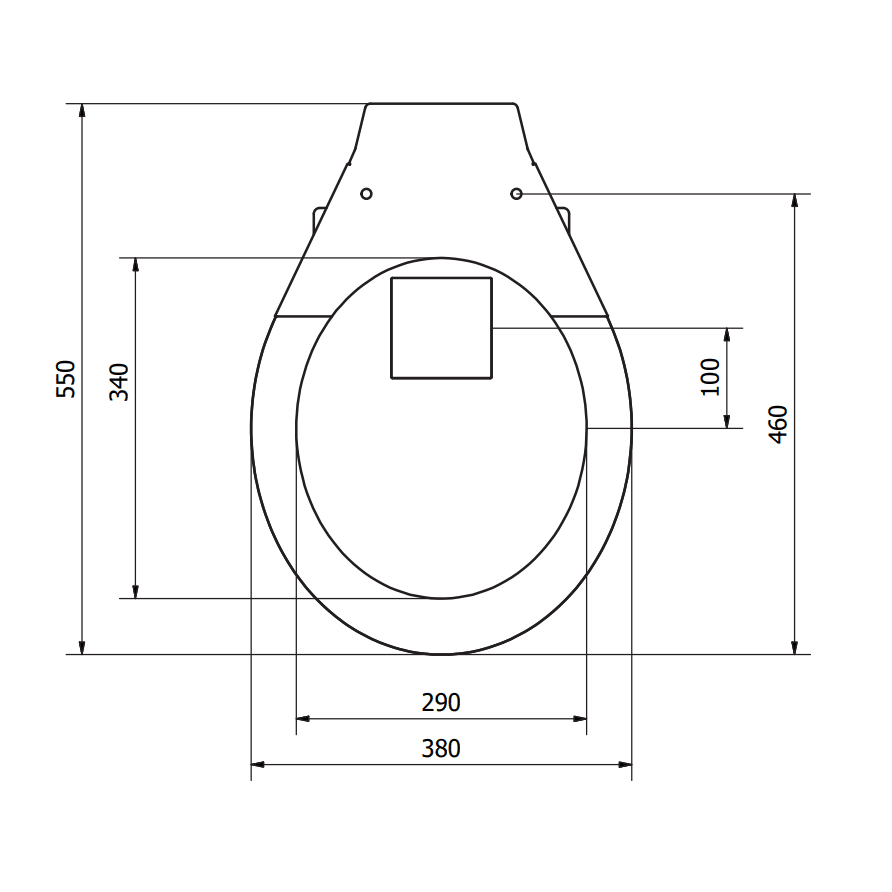

The Basterfield B17642 range provides floor-mounted stainless steel pedestal WC pans for public and institutional washrooms, including schools, hospitality venues and correctional facilities. Both models are manufactured from 1.2 mm Grade 304 stainless steel with a brushed satin finish and smooth, radiused edges for routine cleaning.

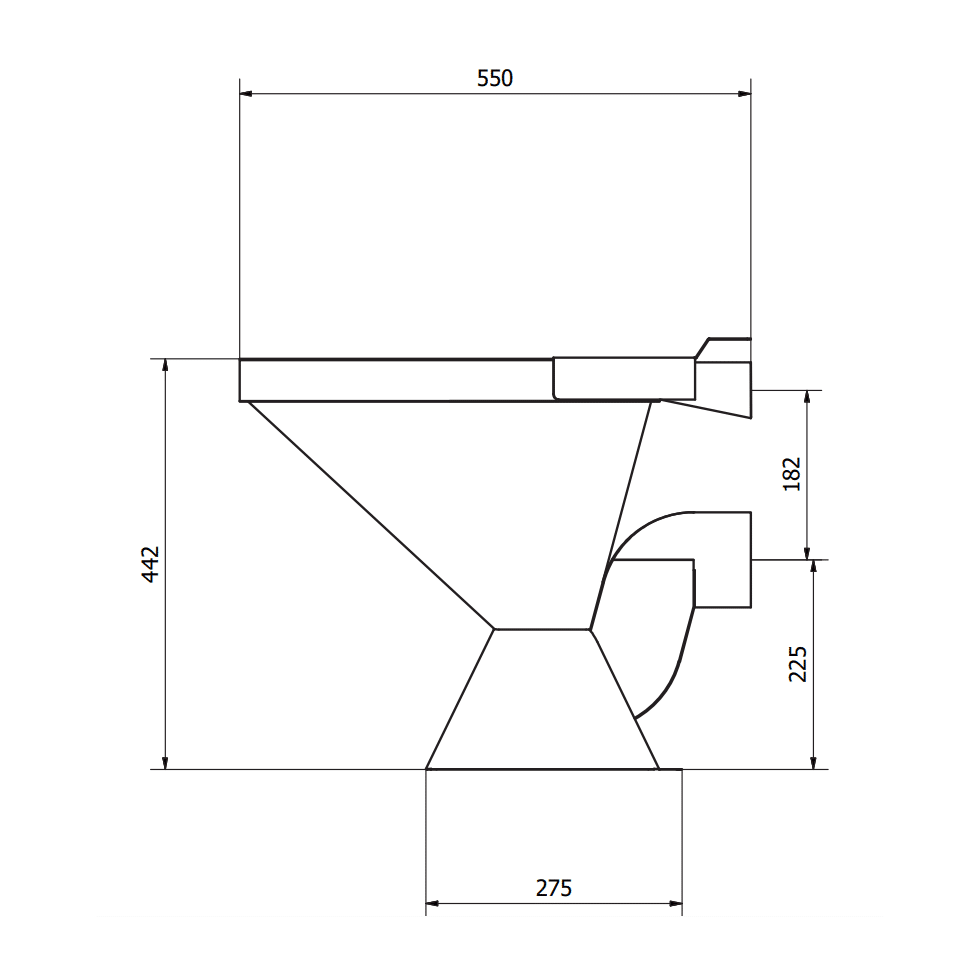

Choose the model to match the waste-pipe arrangement: B17642(P) has a P-trap with a horizontal outlet, while B17642(S) has an S-trap with a vertical outlet. Each outlet has an outside diameter of 102 mm for connection to 110 mm PVC soil pipe.

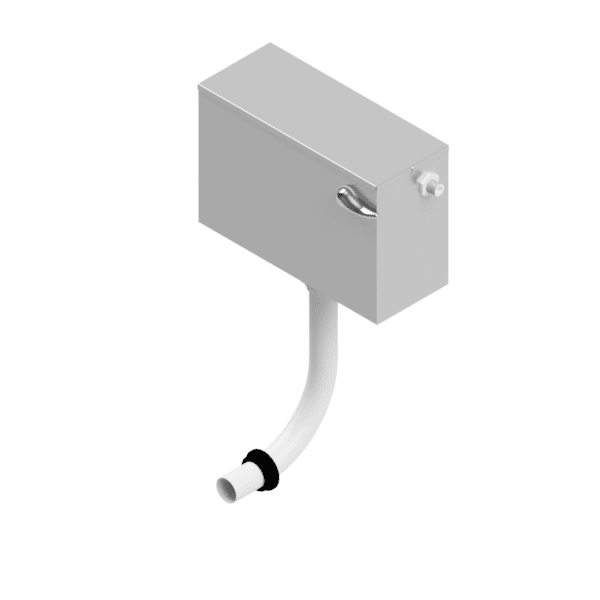

The pan is fixed to the floor through pre-drilled 6 mm holes in its base flanges. An integral flushing rim is supplied with a rear-entry flush-pipe inlet. The inlet accommodates a rubber sealing bung. Choose one separately priced flushing system: B17110(L380-CPB) 9 L stainless steel cistern with PVC flush pipe and rubber bung; 04VF_WAL-106B Walcro 106B exposed lever-operated back-entry valve; or 04VF_WAL-103LC Walcro 103LC concealed back-entry valve with VR push button and concealed pipes.
