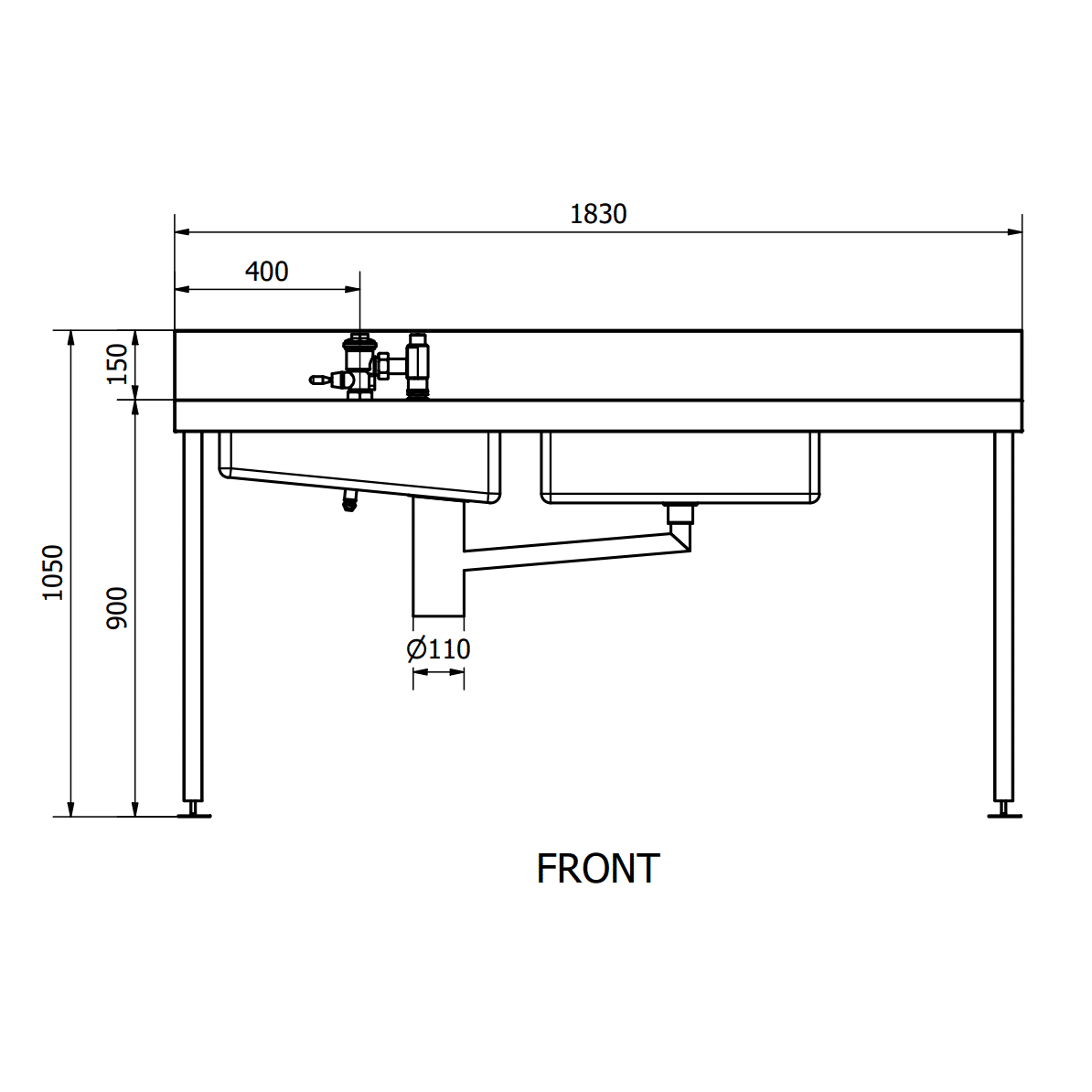

B22330(L-1830-T3) Combination Bedpan & Wash-Up Sink with Flush Valve

The B22330(L-1830-T3) Combination Bedpan & Wash-Up Sink is a robust, wall-mounted sluice unit designed for high-traffic medical and institutional facilities where hygiene, efficiency, and durability are critical. Manufactured from Grade 304 stainless steel with a satin polish finish, this unit ensures easy cleaning and long-term corrosion resistance, making it ideal for hospital environments.

This configuration features the sluice sink with an integrated flush valve on the left-hand side, allowing for efficient disposal of liquid and solid waste. The integral flushing rim ensures thorough waste removal while minimizing water usage. The flush valve mechanism is optimized for municipal water pressure, offering a highly effective, water-efficient flushing system.

For added functionality, the B22330(L-1830-T3) includes a wash-up sink with a 40mm waste outlet, allowing for quick and easy rinsing. A sloped drip ledge prevents water from spilling into the surrounding area, ensuring a dry and sanitary workspace. The unit also incorporates pre-plumbed quarter-turn elbow-action spray nozzles for bedpan and bottle cleaning, providing a complete decontamination solution.

The heavy-duty stainless steel wall mounting brackets ensure stable installation, while optional front support legs with adjustable foot pieces can be provided where additional support is required. The underside of the unit is coated with vermin-proof bitumastic sound-deadening material, reducing noise and preventing pest ingress.

This unit is designed for flexibility and can be configured in various lengths to accommodate specific facility requirements. An alternative high-level cistern version is also available for locations where water pressure may be insufficient.

Technical Features & Benefits

• Premium Construction – Made from Grade 304 stainless steel (18/10) with a satin-polished finish for durability and hygiene.
• Optimized Bedpan Cleaning – Left-hand sluice sink with an integral flushing rim for water-efficient waste removal.
• Integrated Flush Valve – Designed for municipal water pressure; cistern-based alternative available separately.
• Pre-Plumbed Spray Nozzles – Bedpan and bottle spray nozzles operated by quarter-turn elbow-action valves.
• Multi-Function Design – Includes a rinse sink with a 40mm waste outlet for enhanced usability.
• Ergonomic & Hygienic – Sloped drip ledge prevents spillage, and an integral rear splashback maintains a clean environment.
• Flexible Installation – Heavy-duty wall-mounted design with optional front support legs for added stability.
• Noise Reduction & Pest Prevention – Vermin-proof bitumastic coating for sound deadening and added protection.
• Customizable Lengths – Available in various sizes to meet facility-specific requirements.
• Alternative Configuration – A high-level cistern version is also available for facilities with lower water pressure.

Origin of Manufacture

• Designed & manufactured in South Africa, ensuring premium quality and compliance with hospital and institutional sanitation standards.
