04VF_WAL-106B Walcro 106B Back-Entry Flush Valve, 25 mm
1 / 1 product images

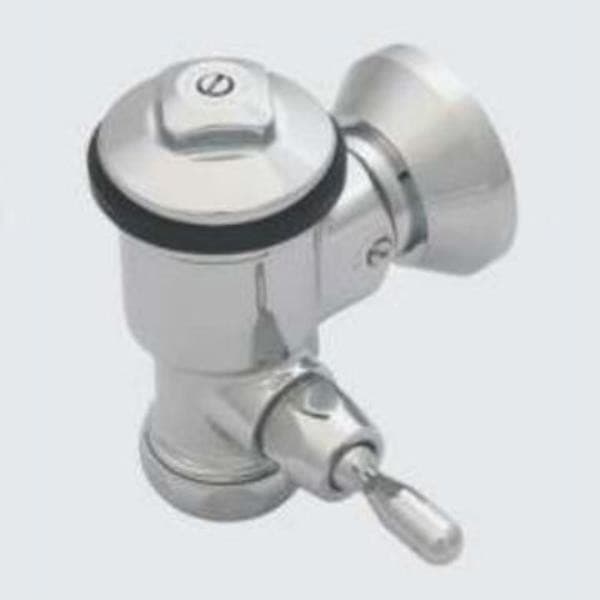

Walcro 106B exposed, lever-operated back-entry toilet flushing valve with a 25 mm BSP inlet, chrome-plated DZR brass body and back-entry flush pipe.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R3,185.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Product overview
The Walcro 106B is an exposed, manually lever-operated toilet flushing valve for a back-entry WC pan. The issued catalogue code is 04VF_WAL-106B and the supplied specification reference is 04VF_WAL106{PSS}.
The valve has a 25 mm BSP water inlet, a chrome-plated DZR brass body and a standard 350 mm back-entry flush pipe. The 25 mm size is the nominal inlet connection, not an overall product length.
The operating-pressure range is 30 kPa to 600 kPa. Confirm the available water supply and flush-pipe alignment for the selected WC pan before installation.
This valve is a separately priced optional flushing system for compatible back-entry WC pans, including B17642(P) and B17642(S). The WC pan is supplied separately. Designed and manufactured in South Africa.
Product data
Specifications & models
Specifications
- Finish
- Fixed
- Chrome
- Flushing Inlet Orientation
- Fixed
- Back Entry
- Material
- Fixed
- DZR Brass
| Specification | Value | Configuration |
|---|---|---|
| Finish |
| Fixed |
| Flushing Inlet Orientation |
| Fixed |
| Material |
| Fixed |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for 04VF_WAL-106B.
PDFProduct warranty
12-month warranty and claims information for 04VF_WAL-106B.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
