B22380(L-1130-T3) Wall Mounted Bedpan Sluice Sink with Flush Valve

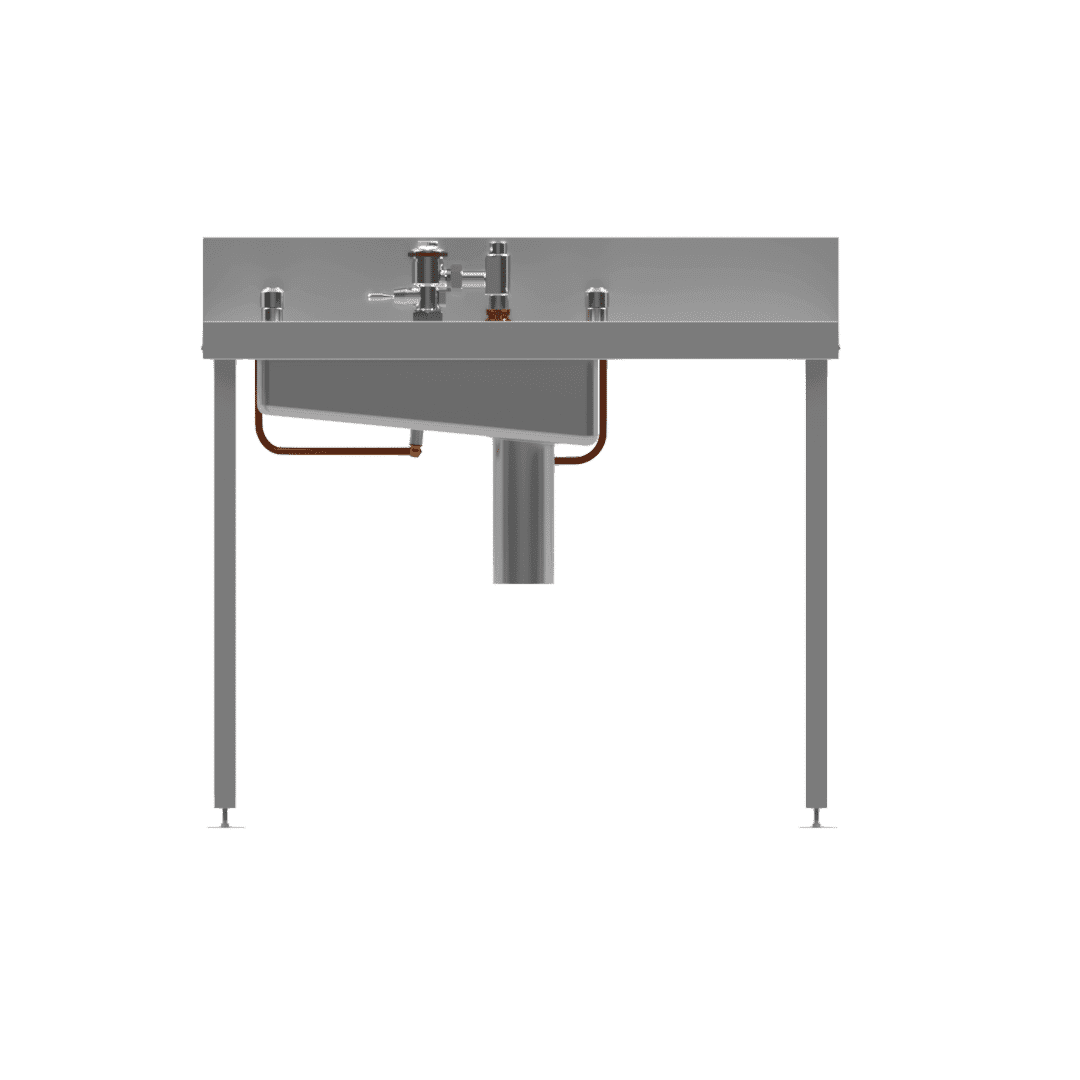

Image indicative of the range. Configurations may differ.
1 / 5 product images
Wall-mounted bedpan sluice sink with a flush valve for healthcare sluice rooms and bedpan washing areas.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
Wall-mounted bedpan sluice sink with a flush valve for healthcare sluice rooms and bedpan washing areas.

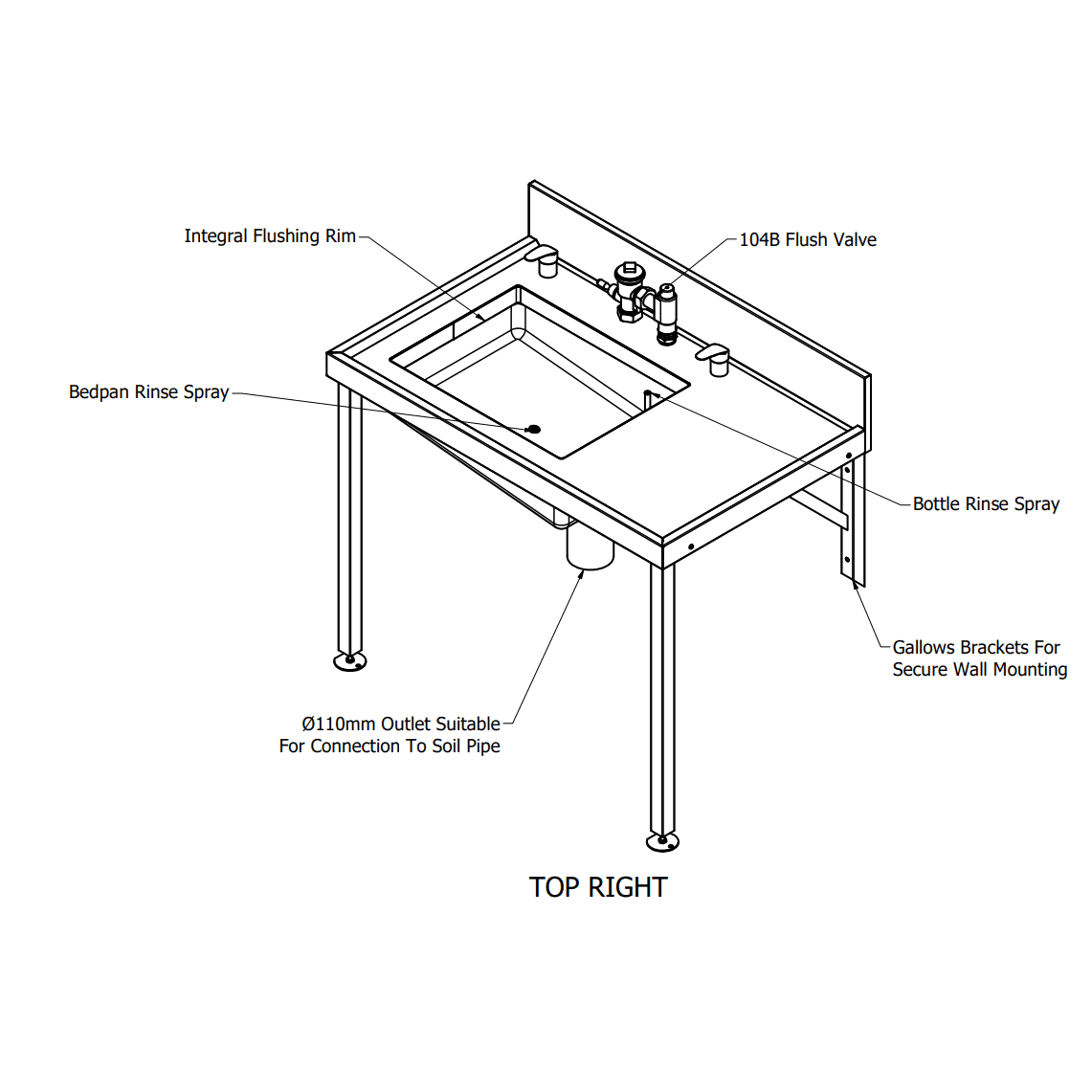

The flushing system is operated via a 104B Flush Valve, suitable for mains pressure water systems. The sink includes an integral spray set for both bedpans and bottles, operated by lever-controlled (wrist-action) valves to ensure hands-free operation and infection control.

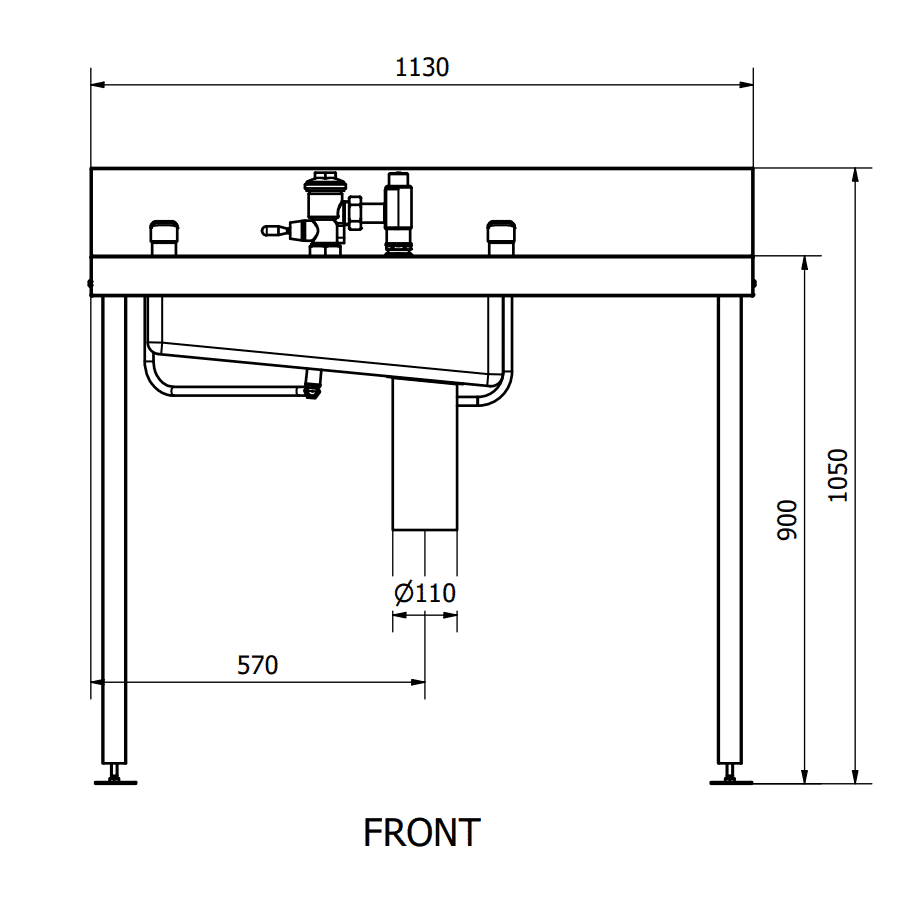

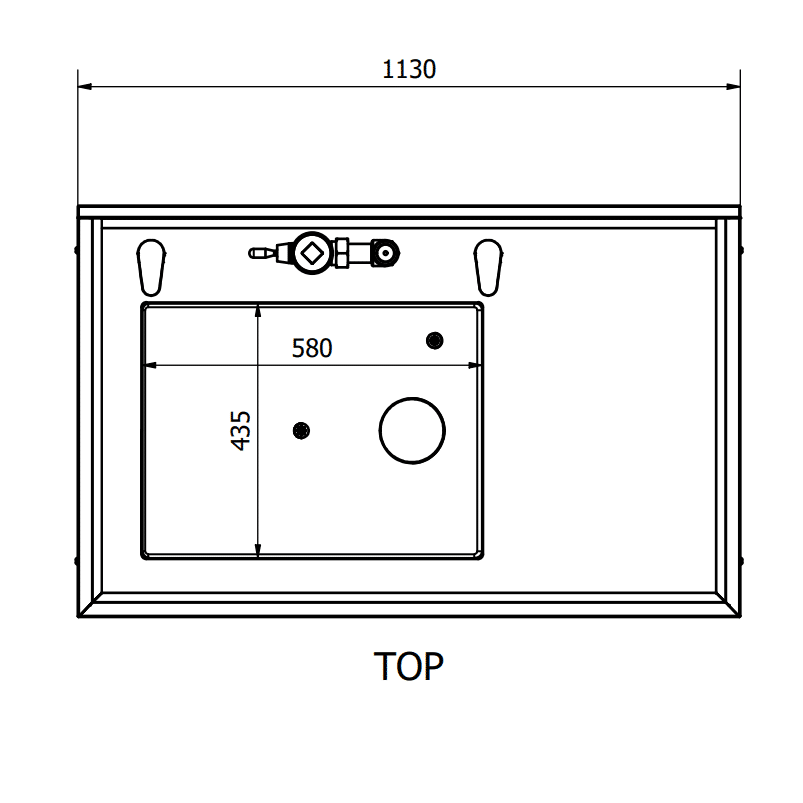

The 1130 mm wide unit features a marine edge to contain liquids and prevent spillover, and a sloped drip ledge to prevent contamination of surrounding surfaces. An integral rear splashback (total height 1050 mm) offers further protection. The unit includes a Ø110 mm waste outlet compatible with standard sewerage/soil pipes (P-trap/gulley not included) and adjustable stainless steel front support legs with levelling feet, in addition to heavy-duty wall brackets for stable wall mounting.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B22380(L-1130-T3).
PDFProduct warranty
24-month warranty and claims information for B22380(L-1130-T3).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Specification support
