B34656 Knee-Operated Stainless Steel Wash Trough with Upstand

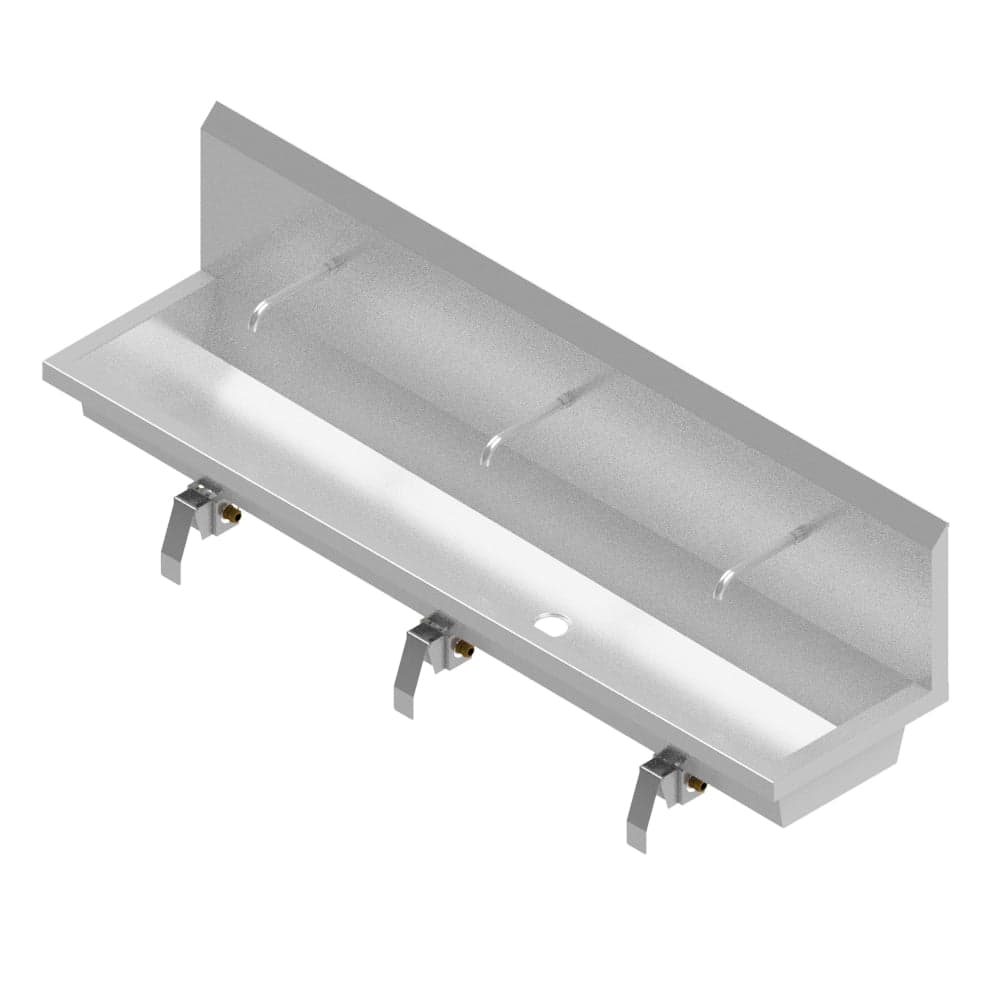

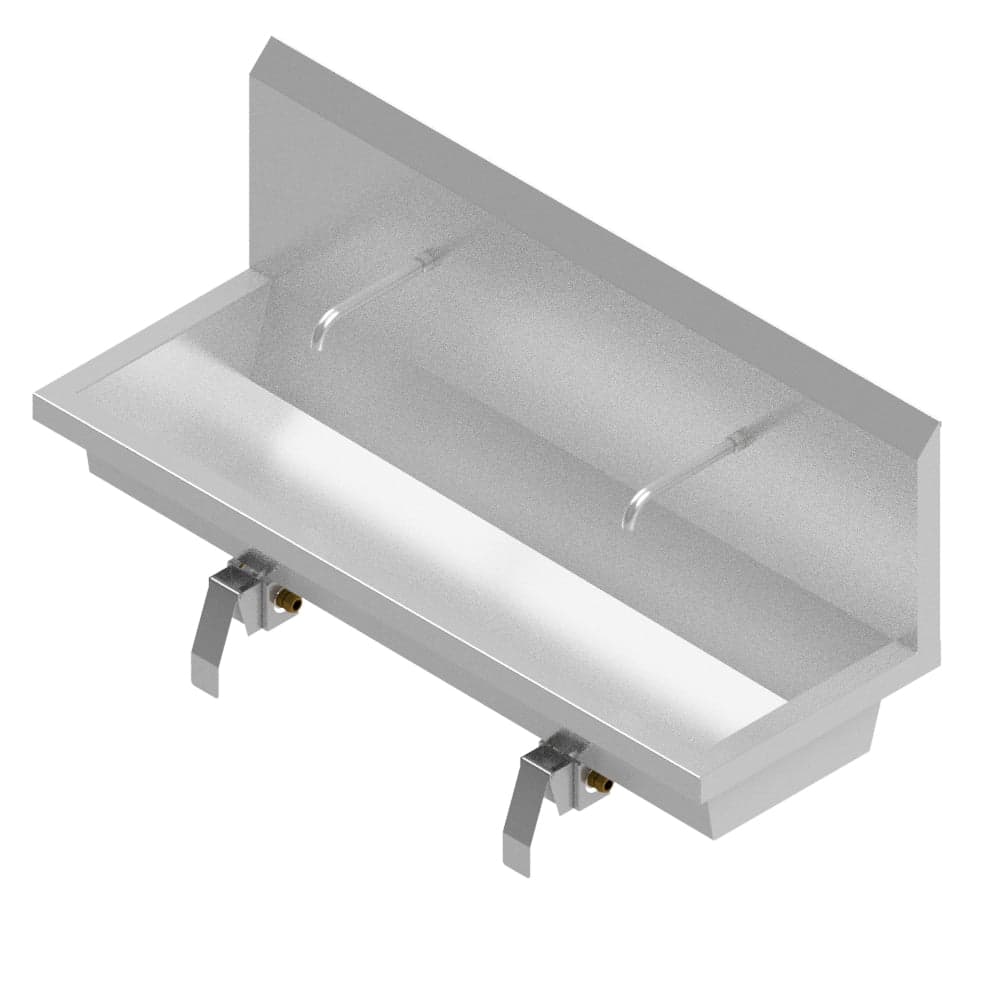

Image indicative of the range. Configurations may differ.
1 / 3 product images
Wall-mounted wash trough in 1.2 mm Grade 304 stainless steel with knee-operated demand valves, upstand-mounted bib spouts and a sloped basin. Choose 1200 mm with two stations, 1800 mm with three, or 2400 mm with four; left- or right-hand waste outlet; and optional Grade 304 front support legs. Supplied with heavy-duty wall brackets.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R10,388.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
1 of 4 options selected
Select Length, Number of Stations / Spouts, Waste Outlet Orientation to complete your configuration.
Length
Number of Stations / Spouts
Waste Outlet Orientation
Front Support Legs
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B34656 wall-mounted wash trough provides shared handwashing in production areas, staff changing facilities and institutional washrooms. Applications include food processing, packing and general manufacturing facilities.
Fully welded 1.2 mm Grade 304 stainless steel construction with a brushed finish provides a durable surface for routine cleaning. Bib spouts are installed in the integral upstand, which provides a splash barrier behind the washing area. The sloped trough directs water towards the waste outlet.
Knee-operated demand valves control the water flow. This allows users to wash without turning a hand tap. A thermostatic valve can be specified for a premixed warm-water supply; it is not included in the standard configurations.
Station count is matched to length: 1200 mm has two stations, 1800 mm has three stations, and 2400 mm has four stations. Select a left-hand or right-hand waste outlet to suit the plumbing route.
The trough is supplied with heavy-duty wall brackets. Optional front support legs use 40 x 40 mm square tube in Grade 304 stainless steel and are included as part of the selected complete trough configuration. Support legs are optional but recommended when the unit is mounted to ISO panels without additional support, and for 2400 mm units. Front legs supplement the wall mounting.
Features & benefits
Knee-Operated Demand Valves
Knee-operated demand valves control water flow, allowing handwashing without turning a hand tap.
Upstand-Mounted Bib Spouts
Bib spouts are installed in the integral upstand, which also provides a splash barrier behind the washing area.
Optional Front Support Legs
Select Yes to include 40 x 40 mm square-tube Grade 304 stainless steel support legs as part of the complete trough. Support legs are optional but recommended when the unit is mounted to ISO panels without additional support, and for 2400 mm units.
Grade 304 Stainless Steel
Fully welded 1.2 mm Grade 304 stainless steel construction with a brushed finish provides a durable surface for routine cleaning.
Sloped Trough for Drainage
The sloped trough directs water towards the waste outlet after use.
Two, Three or Four Washing Stations
Station count is matched to length: 1200 mm has two stations, 1800 mm has three stations, and 2400 mm has four stations.
Left- or Right-Hand Waste Outlet
Both outlet orientations are available at every published length to suit the plumbing route. The waste outlet diameter is shown in the specifications.
Heavy-Duty Wall Brackets
Supplied wall brackets support the trough at the wall. Optional front legs supplement the wall mounting.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B34656.
PDFProduct warranty
12-month warranty and claims information for B34656.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 1200 mm
- 1800 mm
- 2400 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Number of Stations / Spouts
- Configurable
- Four
- Three
- Two
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
- Front Support Legs
- Configurable
- No
- Yes
- Demand / Metered Valve
- Fixed
- Demand Valve
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Waste Outlet Diameter
- Fixed
- 40 mm
- Support Leg Section
- Fixed
- 40 x 40 mm
| Specification | Value | Configuration |
|---|---|---|
| Number of Stations / Spouts |
| Configurable |
| Waste Outlet Orientation |
| Configurable |
| Front Support Legs |
| Configurable |
| Demand / Metered Valve |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
| Support Leg Section |
| Fixed |
Available models & compare variants
Compare 12 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B34656(D-112-1200L-SL) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1200 mm. Number of Stations: Two. Waste Outlet: Left Hand. Front Support Legs Included: Yes. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1200 mm, Left Hand, Legs Yes | Demand Valve | Yes | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | Two | 40 mm | Left Hand | 40 x 40 mm | View specifications
| |
| B34656(D-112-1200L) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1200 mm. Number of Stations: Two. Waste Outlet: Left Hand. Front Support Legs Included: No. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1200 mm, Left Hand, Legs No | Demand Valve | No | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | Two | 40 mm | Left Hand | - | View specifications
| |
| B34656(D-112-1200R-SL) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1200 mm. Number of Stations: Two. Waste Outlet: Right Hand. Front Support Legs Included: Yes. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1200 mm, Right Hand, Legs Yes | Demand Valve | Yes | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | Two | 40 mm | Right Hand | 40 x 40 mm | View specifications
| |
| B34656(D-112-1200R) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1200 mm. Number of Stations: Two. Waste Outlet: Right Hand. Front Support Legs Included: No. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1200 mm, Right Hand, Legs No | Demand Valve | No | 1200 mm | Stainless Steel Grade 304 | 1.2 mm | Two | 40 mm | Right Hand | - | View specifications
| |
| B34656(D-112-1800L-SL) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1800 mm. Number of Stations: Three. Waste Outlet: Left Hand. Front Support Legs Included: Yes. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1800 mm, Left Hand, Legs Yes | Demand Valve | Yes | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | Three | 40 mm | Left Hand | 40 x 40 mm | View specifications
| |
| B34656(D-112-1800L) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1800 mm. Number of Stations: Three. Waste Outlet: Left Hand. Front Support Legs Included: No. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1800 mm, Left Hand, Legs No | Demand Valve | No | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | Three | 40 mm | Left Hand | - | View specifications
| |
| B34656(D-112-1800R-SL) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1800 mm. Number of Stations: Three. Waste Outlet: Right Hand. Front Support Legs Included: Yes. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1800 mm, Right Hand, Legs Yes | Demand Valve | Yes | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | Three | 40 mm | Right Hand | 40 x 40 mm | View specifications
| |
| B34656(D-112-1800R) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 1800 mm. Number of Stations: Three. Waste Outlet: Right Hand. Front Support Legs Included: No. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 1800 mm, Right Hand, Legs No | Demand Valve | No | 1800 mm | Stainless Steel Grade 304 | 1.2 mm | Three | 40 mm | Right Hand | - | View specifications
| |
| B34656(D-112-2400L-SL) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 2400 mm. Number of Stations: Four. Waste Outlet: Left Hand. Front Support Legs Included: Yes. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 2400 mm, Left Hand, Legs Yes | Demand Valve | Yes | 2400 mm | Stainless Steel Grade 304 | 1.2 mm | Four | 40 mm | Left Hand | 40 x 40 mm | View specifications
| |
| B34656(D-112-2400L) | Wall-Mounted 1.2 mm Grade 304 Stainless Steel Wash Trough with Knee-Operated Demand Valves and Upstand-Mounted Bib Spouts. Length: 2400 mm. Number of Stations: Four. Waste Outlet: Left Hand. Front Support Legs Included: No. Brushed Finish, Sloped Trough, Integral Upstand and Heavy-Duty Wall Brackets. Leg-Equipped Configurations Include 40 x 40 mm Square-Tube Grade 304 Stainless Steel Support Legs as Part of the Complete Trough. Demand Knee Trough 2400 mm, Left Hand, Legs No | Demand Valve | No | 2400 mm | Stainless Steel Grade 304 | 1.2 mm | Four | 40 mm | Left Hand | - | View specifications
|
