B34655 Shrouded Wall-Mounted Knee-Operated Wash Trough

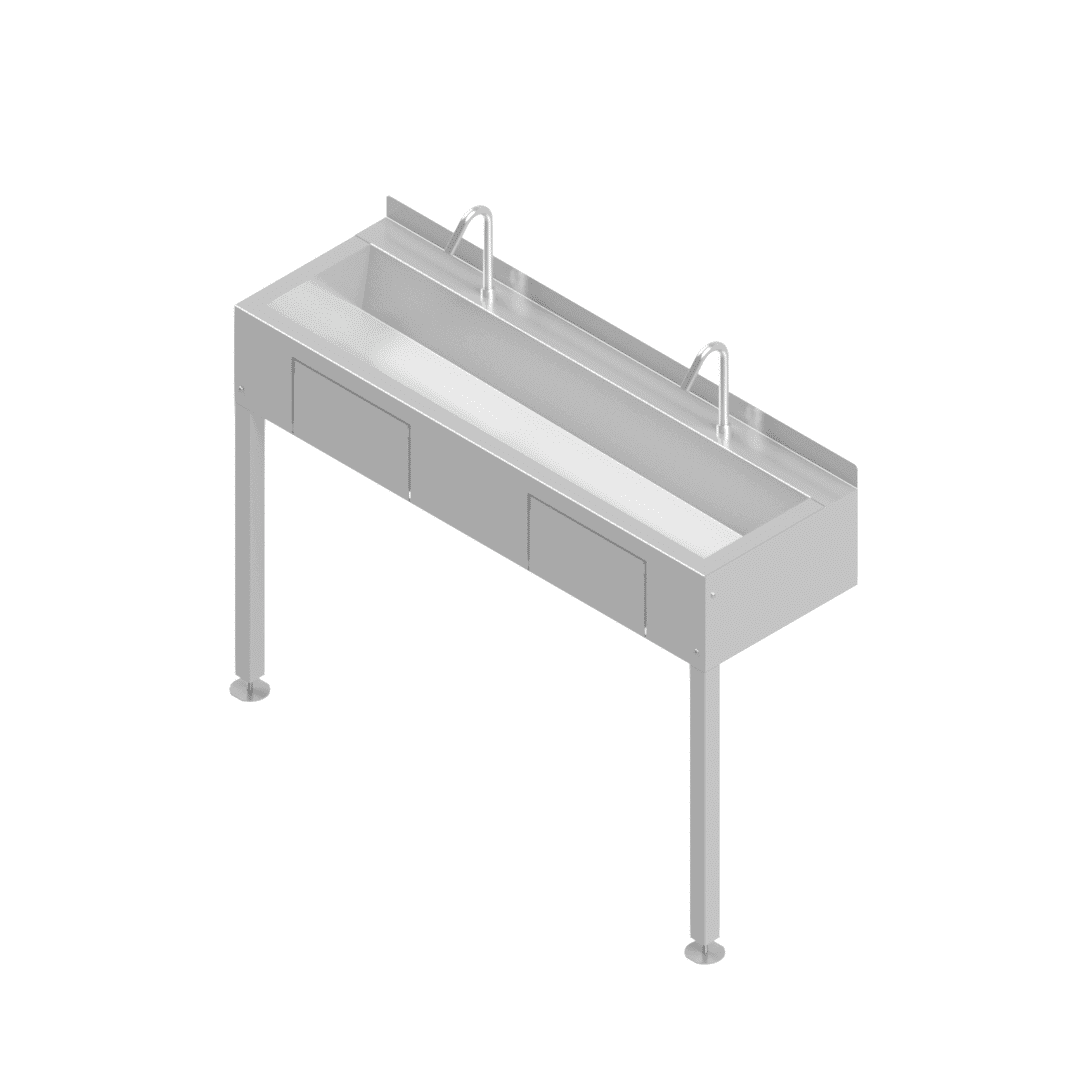

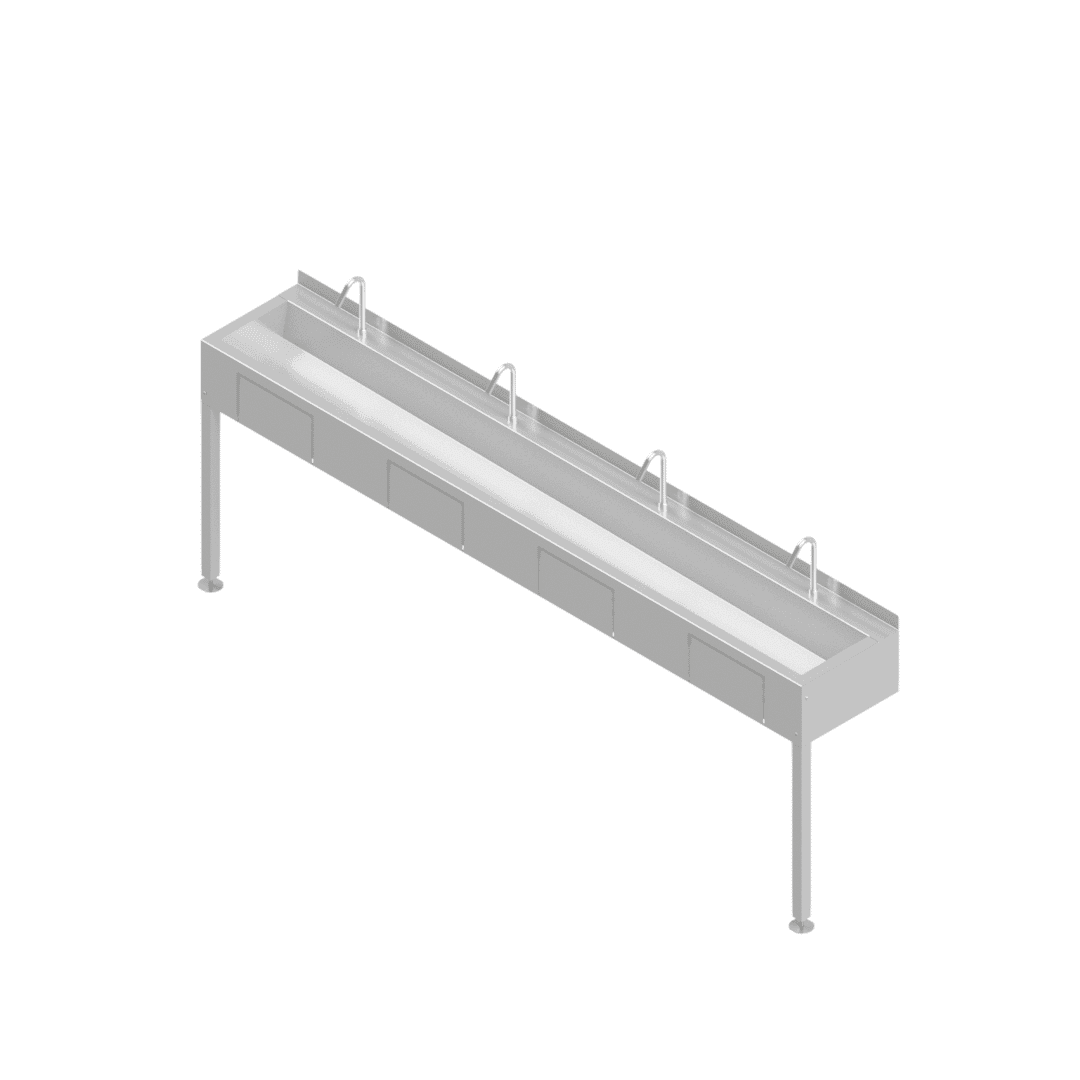

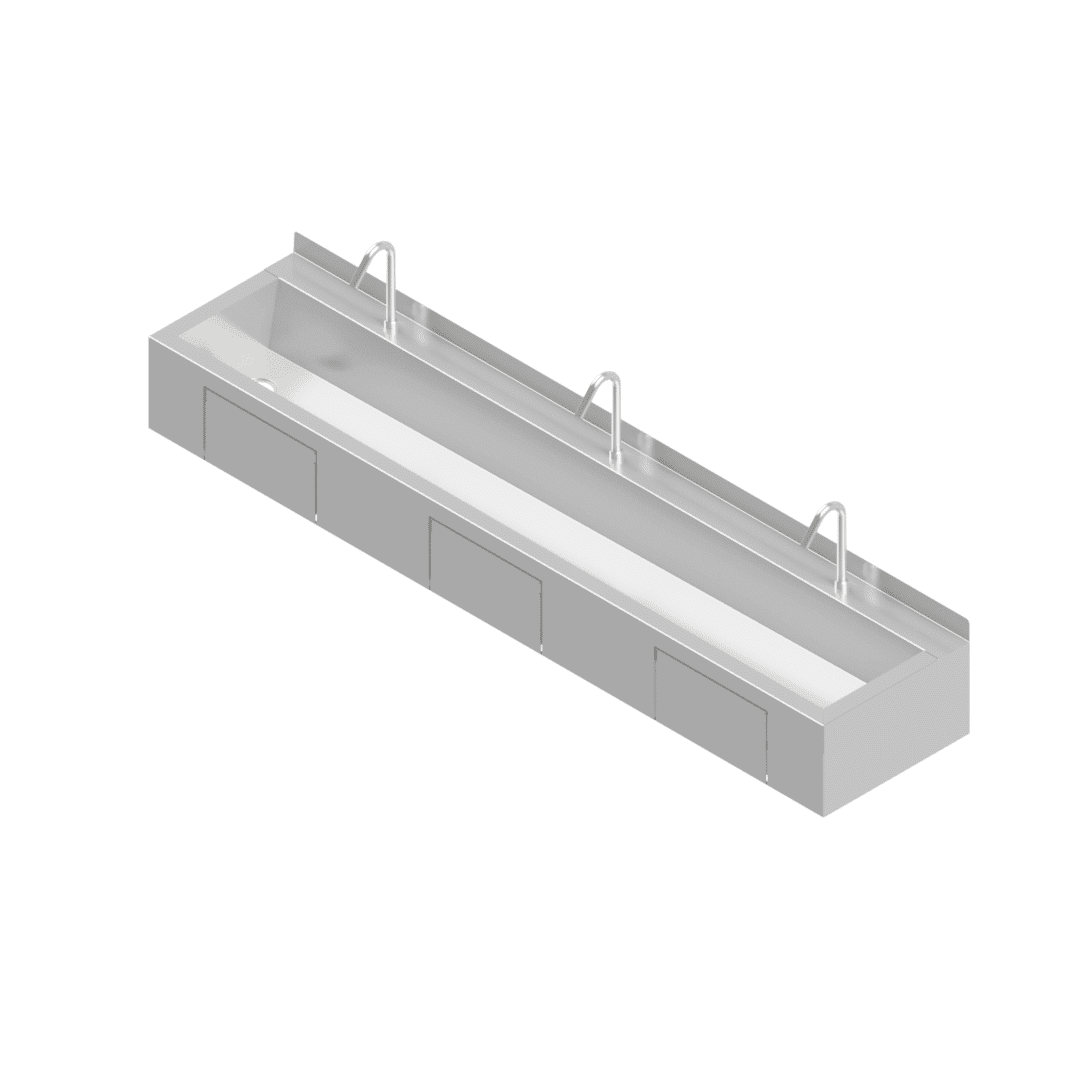

Image indicative of the range. Configurations may differ.
1 / 4 product images
Shrouded wall-mounted stainless steel wash trough with knee-operated demand valves, low-level deck-mounted spouts and a sloped basin. Choose 1200 mm with two stations, 1800 mm with three, or 2400 mm with four; left- or right-hand waste outlet; and optional 40 x 40 mm front support legs. Legs are recommended for ISO-panel mounting without additional support and for 2400 mm units. The shroud conceals plumbing, the splashback limits splashing, and gallows brackets support the trough at the wall.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R10,931.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
1 of 4 options selected
Select Length, Number of Stations / Spouts, Waste Outlet Orientation to complete your configuration.
Length
Number of Stations / Spouts
Waste Outlet Orientation
Front Support Legs
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B34655 shrouded wall-mounted stainless steel wash trough provides shared handwashing in production areas, staff changing facilities and institutional washrooms. It suits handwashing points in food-processing, packing and manufacturing facilities.
Knee-operated demand valves start the water flow while pressed and close when released. Low-level deck-mounted spouts serve the washing stations, allowing the user to operate the water without turning a hand tap.
The stainless steel shroud conceals plumbing beneath the trough. A sloped basin directs water towards the waste outlet, and the integral splashback helps protect the wall behind the washing area. Basin depth, splashback height, shroud height and waste outlet diameter are shown in the structured specifications.
Choose the length and its matching station arrangement, then select a left-hand or right-hand waste outlet. These choices are available with or without front support legs.
Gallows brackets support the trough at the wall. Leg-equipped configurations include 40 x 40 mm stainless steel front support legs as part of the complete trough. The front legs supplement the wall mounting.
Station count is matched to length: 1200 mm has two stations, 1800 mm has three stations, and 2400 mm has four stations. Support legs are optional but recommended when the unit is mounted to ISO panels without additional support, and for 2400 mm units.
Features & benefits
Knee-Operated Water Control
Knee-operated demand valves run water while pressed and close when released, allowing handwashing without turning a hand tap.
Shroud Conceals Plumbing
The stainless steel shroud covers the plumbing beneath the trough and gives the washing area a tidy appearance.
Low-Level Deck-Mounted Spouts
Standard low-level deck-mounted spouts provide water at the washing stations. The spout arrangement is part of this model’s standard configuration.
Sloped Basin for Drainage
The sloped basin directs water towards the waste outlet after use.
Integral Splashback
The integral splashback helps protect the wall behind the trough from splashing during handwashing.
Lengths Matched to Washing Stations
Station count is matched to length: 1200 mm has two stations, 1800 mm has three stations, and 2400 mm has four stations.
Left- or Right-Hand Waste Outlet
Both waste outlet orientations are available at each published length, allowing selection to suit the plumbing route.
Optional Front Support Legs
The optional 40 x 40 mm stainless steel front support legs are specified as part of the complete trough. Support legs are optional but recommended when the unit is mounted to ISO panels without additional support, and for 2400 mm units.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B34655.
PDFProduct warranty
12-month warranty and claims information for B34655.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 1200 mm
- 1800 mm
- 2400 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Number of Stations / Spouts
- Configurable
- Two
- Three
- Four
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
- Front Support Legs
- Configurable
- No
- Yes
- Splashback Height
- Fixed
- 50 mm
- Bowl Depth
- Fixed
- 150 mm
- Shroud Height
- Fixed
- 225 mm
- Waste Outlet Diameter
- Fixed
- 40 mm
- Support Leg Section
- Fixed
- 40 x 40 mm
| Specification | Value | Configuration |
|---|---|---|
| Number of Stations / Spouts |
| Configurable |
| Waste Outlet Orientation |
| Configurable |
| Front Support Legs |
| Configurable |
| Splashback Height |
| Fixed |
| Bowl Depth |
| Fixed |
| Shroud Height |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
| Support Leg Section |
| Fixed |
Available models & compare variants
Compare 12 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B34655(1200L) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1200 mm. Waste Outlet: Left Hand. Front Support Legs Included: No. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1200 mm, Left Hand, Legs No | 50 mm | 150 mm | No | 1200 mm | Two | 225 mm | 40 mm | Left Hand | - | View specifications
| |
| B34655(1200LL) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1200 mm. Waste Outlet: Left Hand. Front Support Legs Included: Yes. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1200 mm, Left Hand, Legs Yes | 50 mm | 150 mm | Yes | 1200 mm | Two | 225 mm | 40 mm | Left Hand | 40 x 40 mm | View specifications
| |
| B34655(1200R) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1200 mm. Waste Outlet: Right Hand. Front Support Legs Included: No. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1200 mm, Right Hand, Legs No | 50 mm | 150 mm | No | 1200 mm | Two | 225 mm | 40 mm | Right Hand | - | View specifications
| |
| B34655(1200RL) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1200 mm. Waste Outlet: Right Hand. Front Support Legs Included: Yes. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1200 mm, Right Hand, Legs Yes | 50 mm | 150 mm | Yes | 1200 mm | Two | 225 mm | 40 mm | Right Hand | 40 x 40 mm | View specifications
| |
| B34655(1800L) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1800 mm. Waste Outlet: Left Hand. Front Support Legs Included: No. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1800 mm, Left Hand, Legs No | 50 mm | 150 mm | No | 1800 mm | Three | 225 mm | 40 mm | Left Hand | - | View specifications
| |
| B34655(1800LL) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1800 mm. Waste Outlet: Left Hand. Front Support Legs Included: Yes. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1800 mm, Left Hand, Legs Yes | 50 mm | 150 mm | Yes | 1800 mm | Three | 225 mm | 40 mm | Left Hand | 40 x 40 mm | View specifications
| |
| B34655(1800R) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1800 mm. Waste Outlet: Right Hand. Front Support Legs Included: No. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1800 mm, Right Hand, Legs No | 50 mm | 150 mm | No | 1800 mm | Three | 225 mm | 40 mm | Right Hand | - | View specifications
| |
| B34655(1800RL) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 1800 mm. Waste Outlet: Right Hand. Front Support Legs Included: Yes. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 1800 mm, Right Hand, Legs Yes | 50 mm | 150 mm | Yes | 1800 mm | Three | 225 mm | 40 mm | Right Hand | 40 x 40 mm | View specifications
| |
| B34655(2400L) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 2400 mm. Waste Outlet: Left Hand. Front Support Legs Included: No. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 2400 mm, Left Hand, Legs No | 50 mm | 150 mm | No | 2400 mm | Four | 225 mm | 40 mm | Left Hand | - | View specifications
| |
| B34655(2400LL) | Shrouded Wall-Mounted Stainless Steel Wash Trough with Knee-Operated demand Valves and Low-Level Deck-Mounted Spouts. Length: 2400 mm. Waste Outlet: Left Hand. Front Support Legs Included: Yes. Sloped Basin, Integral Splashback and Gallows Brackets. Leg-Equipped Configurations Include 40 x 40 mm Stainless Steel Front Support Legs as Part of the Complete Trough. Knee Wash Trough 2400 mm, Left Hand, Legs Yes | 50 mm | 150 mm | Yes | 2400 mm | Four | 225 mm | 40 mm | Left Hand | 40 x 40 mm | View specifications
|
