B34676 Shrouded Wash Trough with Tap Landing
Image indicative of the range. Configurations may differ.
1 / 5 product images
Wall-mounted Grade 304 stainless steel wash trough with a shroud and tap landing for pillar tapware, also suitable for a bib-tap installation. Choose 1200mm, 1800mm or 2400mm; left or right waste outlet; and optional front support legs. Tap quantity depends on the tap-hole arrangement. Tapware and pre-punched tap holes are excluded as standard. Optional Cobra sensor taps provide hands-free operation.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R5,828.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
1 of 3 options selected
Front Support Legs: No
Select Length, Waste Outlet Orientation to complete your configuration.
Length
Waste Outlet Orientation
Front Support Legs
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The B34676 is a wall-mounted shrouded wash trough for personnel handwashing in food hygiene environments. Its stainless steel shroud conceals the plumbing beneath the trough. The tap landing accommodates pillar taps; bib taps can be mounted above the trough to suit the installation.
Choose a trough length of 1200mm, 1800mm or 2400mm. The 1200mm and 1800mm models use 1.2mm Grade 304 stainless steel; the 2400mm model uses 1.5mm Grade 304 stainless steel. Each length is available with a left-hand or right-hand waste outlet.
Tapware and pre-punched tap holes are not included as standard. Specify the tap arrangement, mounting position and required hole diameter for the selected tapware. The trough is supplied without knee-operated controls.
For hands-free handwashing, select the optional Cobra Cobratron EL-1000 sensor pillar taps. As a guide, we recommend 1200mm for 2 taps, 1800mm for 3 taps and 2400mm for 4 taps. The number of taps can vary for the same trough length according to the tap-hole arrangement. Specify the required number, positions and diameter of tap holes for the selected tapware. Each tap is supplied and priced separately. The sensor tap controls water flow; it requires a cold or suitably pre-blended water supply. For knee-operated water control, consider the B34655 shrouded knee-operated wash trough.
Front support legs are available on every length and outlet arrangement as part of a complete trough configuration. The front legs supplement the wall mounting; the trough remains wall-mounted.
Features & benefits
Shrouded Construction
The stainless steel shroud conceals plumbing beneath the wall-mounted trough.
Tap Landing
Accommodates pillar taps and a suitable bib-tap installation above the trough. Tapware and pre-punched holes are excluded as standard.
Grade 304 Stainless Steel
1.2mm construction for 1200mm and 1800mm models; 1.5mm for the 2400mm model.
Flexible Tap Arrangement
As a guide, we recommend 1200mm for 2 taps, 1800mm for 3 taps and 2400mm for 4 taps. The number of taps can vary for the same trough length according to the tap-hole arrangement. Specify the required number, positions and diameter of tap holes for the selected tapware.
Outlet and Support Options
Choose a left-hand or right-hand waste outlet, with optional front support legs on every model.
Optional Sensor Tapware

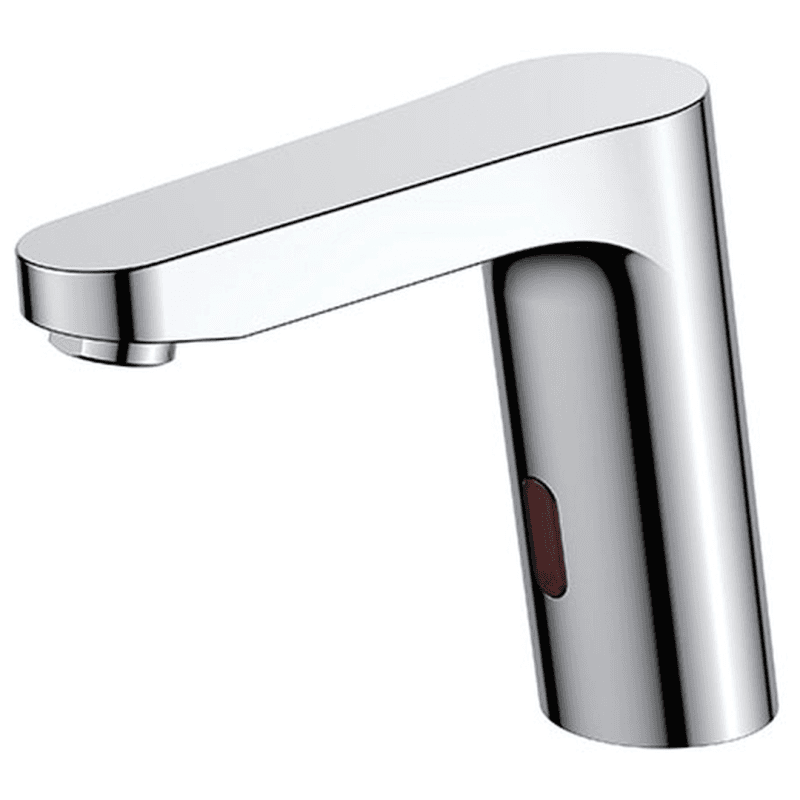

Cobra Cobratron EL-1000 sensor pillar taps are available separately for hands-free handwashing.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 1200 mm
- 1800 mm
- 2400 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
- Front Support Legs
- Configurable
- No
- Yes
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- By model
- 1.2 mm
- 1.5 mm
- Tap Hole Provision
- Fixed
- Not punched as standard
| Specification | Value | Configuration |
|---|---|---|
| Waste Outlet Orientation |
| Configurable |
| Front Support Legs |
| Configurable |
| Material |
| Fixed |
| Material Thickness |
| By model |
| Tap Hole Provision |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| B34676(112-1200L) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.2mm Thick, 1200mm Length, with Wall Mounting, Shroud, Tap Landing and Left-Hand Waste Outlet. Tapware, Knee-Operated Controls and Pre-Punched Tap Holes Excluded Wash Trough Shrouded 1200mm Length Left-Hand | No | 1200 mm | 1.2 mm | Left Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(112-1200LL) | Wash Trough Neutral-Type Stainless Steel Grade 304, 1.2mm Thick, 1200mm Length, with Wall Mounting, Shroud, Tap Landing, Left-Hand Waste Outlet and Front Support Legs; Tapware Supplied Separately, Knee-Operated Controls Not Included and Tap Holes Not Punched as Standard Wash Trough Shrouded 1200mm Length Left-Hand Waste | Yes | 1200 mm | 1.2 mm | Left Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(112-1200R) | Wash Trough Wall Mounted Stainless Steel Grade 304 1.2mm Thick, 1200mm Length, with Shroud, Tap Landing and Right-Hand Waste Outlet. Tapware, Knee-Operated Controls and Pre-Punched Tap Holes Excluded Wash Trough Shrouded 1200mm Length Right-Hand | No | 1200 mm | 1.2 mm | Right Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(112-1200RL) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.2mm Thick, 1200mm Length, with Wall Mounting, Shroud, Tap Landing and Right-Hand Waste Outlet, with Front Support Legs. Tapware, Knee-Operated Controls and Pre-Punched Tap Holes Excluded Wash Trough Shrouded 1200mm Right-Hand Outlet | Yes | 1200 mm | 1.2 mm | Right Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(112-1800L) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.2mm Thick, 1800mm Length, with Wall Mounting, Shroud, Tap Landing and Left-Hand Waste Outlet. Tapware, Knee-Operated Controls and Pre-Punched Tap Holes Excluded. Wash Trough Shrouded 1800mm Length Left-Hand | No | 1800 mm | 1.2 mm | Left Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(112-1800LL) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.2mm Thick, 1800mm Length, with Wall Mounting, Shroud, Tap Landing, Left-Hand Waste Outlet and Front Support Legs, Tapware Supplied Separately, Knee-Operated Controls Not Included and Tap Holes Not Punched as Standard Wash Trough Shrouded 1800mm Left Hand Waste | Yes | 1800 mm | 1.2 mm | Left Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(112-1800R) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.2mm Thick, 1800mm Length, with Wall Mounting, Shroud, Tap Landing and Right-Hand Waste Outlet. Tapware, Knee-Operated Controls and Pre-Punched Tap Holes Excluded Wash Trough Shrouded 1800mm Length Right-Hand | No | 1800 mm | 1.2 mm | Right Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(112-1800RL) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.2mm Thick, 1800mm Length, with Wall Mounting, Shroud, Tap Landing, Right-Hand Waste Outlet and Front Support Legs; Tapware Supplied Separately, Knee-Operated Controls Not Included and Tap Holes Not Punched as Standard Wash Trough Shrouded 1800mm Right-Hand Outlet | Yes | 1800 mm | 1.2 mm | Right Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(115-2400L) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.5mm Thick, 2400mm Length, with Wall Mounting, Shroud, Tap Landing and Left-Hand Waste Outlet. Tapware, Knee-Operated Controls and Pre-Punched Tap Holes Excluded Wash Trough Shrouded 2400mm Length Left-Hand | No | 2400 mm | 1.5 mm | Left Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
| |
| B34676(115-2400LL) | Wash Trough Neutral-Type Stainless Steel Grade 304 1.5mm Thick, 2400mm Length, with Wall Mounting, Shroud, Tap Landing and Left-Hand Waste Outlet, with Front Support Legs. Tapware, Knee-Operated Controls and Pre-Punched Tap Holes Excluded Wash Trough Shrouded Left-Hand Waste 2400mm | Yes | 2400 mm | 1.5 mm | Left Hand | Stainless Steel Grade 304 | Not punched as standard | View specifications
|
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Technical media
- View file
Range front view: length varies by model. Dimensions in mm. Trough shown without optional front support legs.
Image · Technical media
- View file
Range top view: overall length and bowl length vary by model. Dimensions in mm. Outlet arrangement follows the selected model.
Image · Technical media
- View file
Typical range right-side view; dimensions in mm. Front support legs are optional.
Image · Technical media
- View file

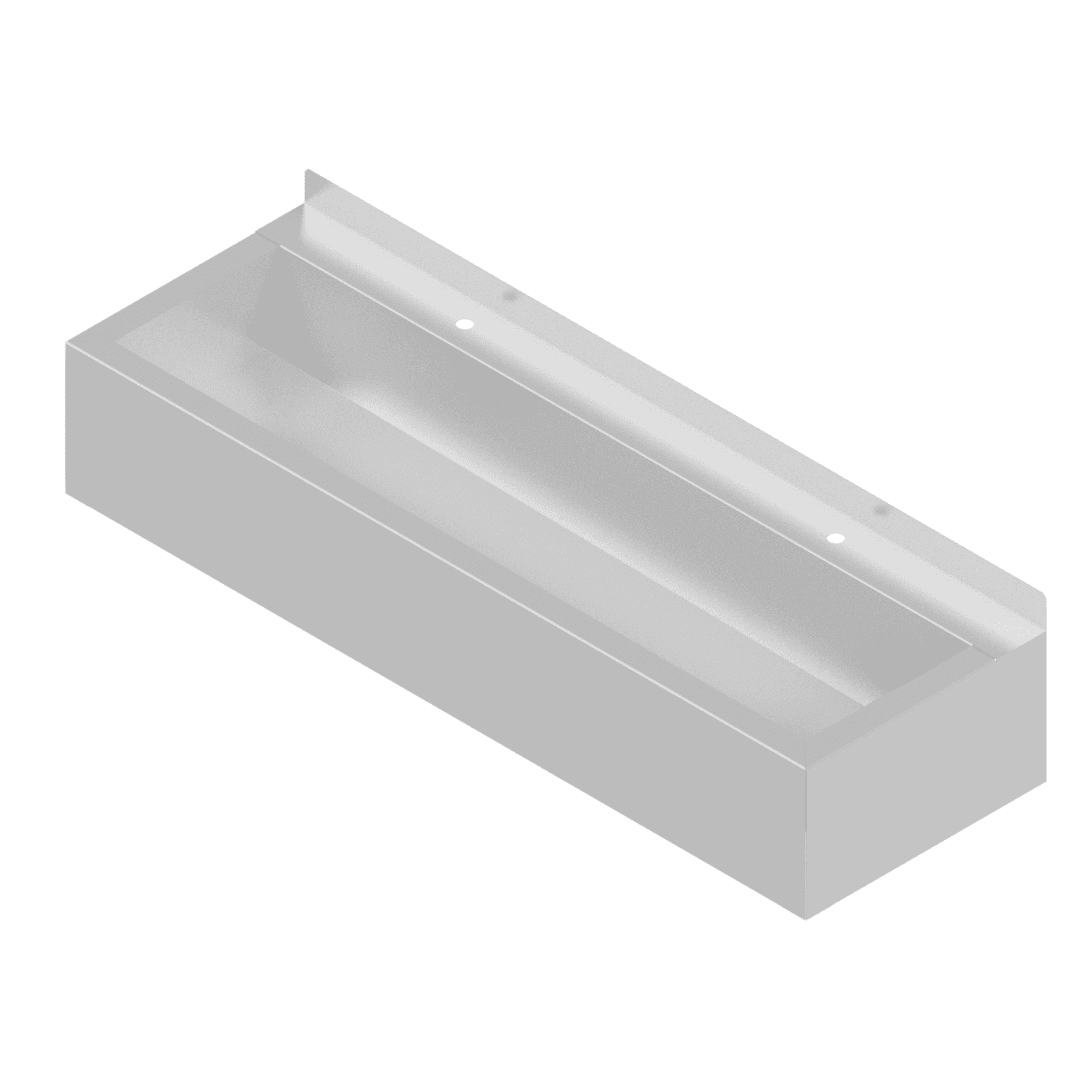

Typical range isometric view, shown without front support legs. Length and outlet side depend on the selected model. Pre-punched tap holes are excluded as standard.
Image · Technical media
