B36645 Knee-Operated Wash Basin with Upstand
1 / 3 product images
Wall-mounted knee-operated wash hand basin in 1.2 mm Grade 304 stainless steel. Measures 600 x 435 x 692 mm overall, with a 150 mm bowl, central 40 mm waste outlet, rear upstand and bib spout. Demand activation is standard; metered activation is an advanced option.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
R6,846.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Standard configuration
B36645(D-112-0600C) is ready to quote at R6,846.00 (excl. VAT).
Selected model
B36645(D-112-0600C)
- Valve activation
- Demand Valve
- Bowl Depth
- 150 mm
- Material
- Stainless Steel Grade 304
- Material Thickness
- 1.2 mm
- Mounting Type
- Wall Mounted
- Waste Outlet Diameter
- 40 mm
- Waste Outlet Orientation
- Centre
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
The Basterfield B36645(D-112-0600C) is a wall-mounted knee-operated wash hand basin with demand valve activation. It is manufactured from 1.2 mm Grade 304 stainless steel and measures 600 mm long x 435 mm wide x 692 mm overall height.
The trough-style bowl is 150 mm deep, with smooth radiused corners and a central 40 mm waste outlet. An integral rear upstand helps protect the wall from splash, and a standard bib spout supplies water to the basin.
The front-mounted control can be operated with either knee, leaving both hands free for washing. Water flows while the knee control is pressed. This is the standard demand-valve configuration.
Specifications
Basterfield B36645(D-112-0600C) knee-operated wash hand basin; Grade 304 stainless steel, 1.2 mm thick; 600 x 435 x 692 mm overall (L x W x H); 150 mm deep trough bowl with radiused corners and central 40 mm waste outlet; integral rear upstand; wall-mounted; front-mounted knee-operated demand valve; standard bib spout.
- Model: B36645(D-112-0600C)
- Material: Grade 304 stainless steel
- Material thickness: 1.2 mm
- Overall dimensions (L x W x H): 600 x 435 x 692 mm
- Bowl depth: 150 mm
- Bowl corners: Radiused
- Waste outlet: 40 mm diameter, centre
- Rear upstand: Integral
- Mounting: Wall mounted
- Valve activation: Knee-operated demand valve
- Operation: Water flows while the knee control is pressed.
- Spout: Standard bib spout
What it is and why it works
Product overview
Product description
The Basterfield B36645 is a wall-mounted knee-operated wash hand basin for personnel handwashing in commercial and institutional facilities. The front-mounted control can be operated with either knee, leaving both hands free for washing, while a standard bib spout delivers water to the bowl.
The basin is manufactured from 1.2 mm Grade 304 stainless steel and measures 600 mm long x 435 mm wide x 692 mm overall height. Its trough-style bowl is 150 mm deep, with smooth radiused corners and a central 40 mm waste outlet. An integral rear upstand helps protect the adjacent wall from splash.
Demand valve activation is the standard configuration, supplied as B36645(D-112-0600C). Water flows while the knee control is pressed. For a preset flow period after activation, enable advanced customisation and select the metered model B36645(M-112-0600C).
Use the B36645 at handwashing points in food-processing plants, commercial kitchens, catering facilities and staff change rooms. It is also an option for healthcare, laboratory and pharmaceutical support areas where the project specification calls for knee-operated handwashing. Confirm wall support, mounting height, water supply and waste connections before installation.
Features & benefits
Hands-free knee-operated water control
The front-mounted control can be operated with either knee, keeping both hands free for washing. Demand activation is standard; metered activation is an advanced option.
Grade 304 stainless steel, 1.2 mm thick
The basin is manufactured from 1.2 mm Grade 304 stainless steel for commercial and workplace handwashing installations.
150 mm bowl with central 40 mm waste outlet
The trough-style bowl has smooth radiused corners and a central waste outlet, providing a clear specification for drainage planning.
Wall-mounted basin with integral rear upstand
Wall mounting provides a dedicated handwashing point. The integral rear upstand helps protect the adjacent wall from splash.
600 x 435 x 692 mm overall dimensions
The recorded overall length, width and height support installation planning. The mounting height above the floor is set to suit the installation.
Standard bib spout
A standard bib spout supplies water to the bowl, with flow controlled by the selected knee-operated valve.
Product data
Specifications & models
Specifications
- Valve activation
- Configurable
- Demand Valve
- Metered Valve
- Bowl Depth
- Fixed
- 150 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 1.2 mm
- Mounting Type
- Fixed
- Wall Mounted
- Waste Outlet Diameter
- Fixed
- 40 mm
- Waste Outlet Orientation
- Fixed
- Centre
| Specification | Value | Configuration |
|---|---|---|
| Valve activation |
| Configurable |
| Bowl Depth |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Mounting Type |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
| Waste Outlet Orientation |
| Fixed |
Available models & compare variants
Compare 2 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price | Spec sheet | Actions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| B36645(D-112-0600C) | Knee Operated Wash Hand Basin, Grade 304 Stainless Steel 1.2mm, 600 x 435 x 692mm, Demand Valve, Rear Upstand and Bib Spout Knee Basin with Upstand, Demand Valve | 150 mm | Demand Valve | Stainless Steel Grade 304 | 1.2 mm | Wall Mounted | 40 mm | Centre | R6,846.00 (excl. VAT) | ||
| B36645(M-112-0600C) | Knee Operated Wash Hand Basin, Grade 304 Stainless Steel 1.2mm, 600 x 435 x 692mm, Metered Valve, Rear Upstand and Bib Spout Knee Basin with Upstand, Metered Valve | 150 mm | Metered Valve | Stainless Steel Grade 304 | 1.2 mm | Wall Mounted | 40 mm | Centre | Quote required |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B36645.
PDFProduct warranty
12-month warranty and claims information for B36645.

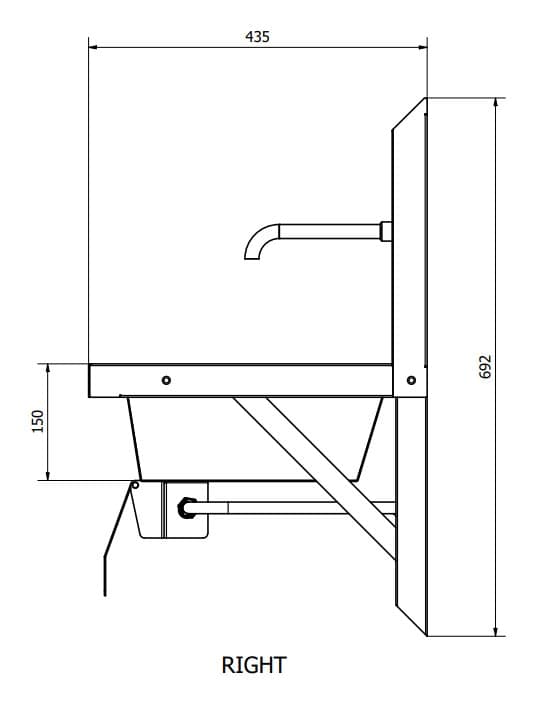

PDFTechnical drawing 1
Image · Technical media

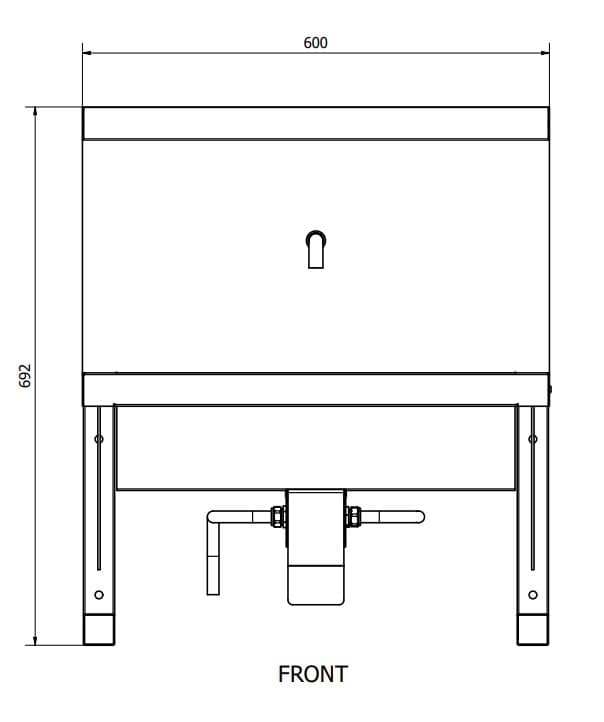

Technical drawing 2
Image · Technical media
