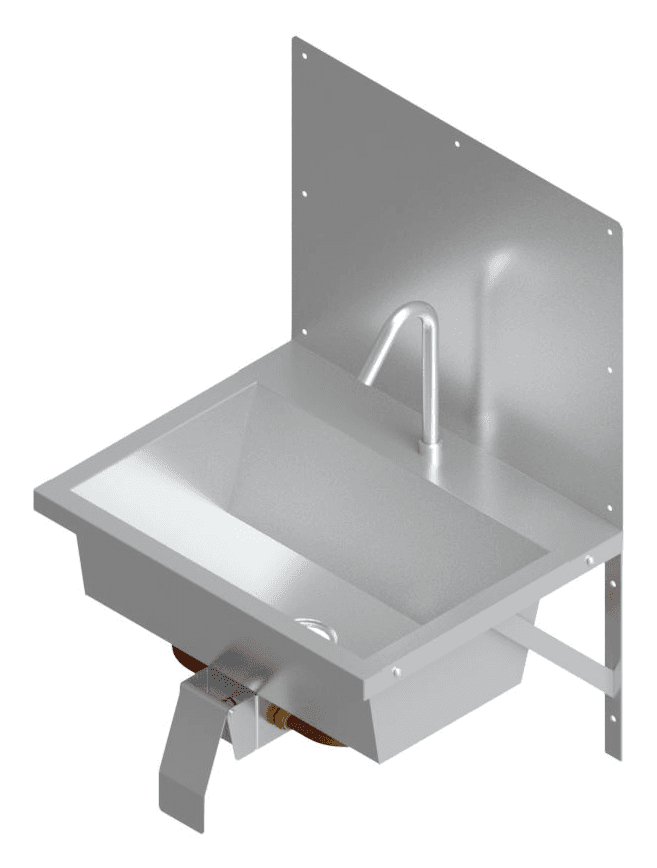

B36658 Stainless Steel Knee Activated Wash Hand Basin
Image indicative of the range. Configurations may differ.
1 / 10 product images
Make hands-free handwashing easy in busy workplaces. This knee-operated stainless steel basin is a practical choice for commercial kitchens, food preparation areas and staff wash stations.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
0 of 1 option selected
Choose your specifications
Select Extended Splashback to complete your configuration.
Extended Splashback
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B36658 is a Grade 304 stainless steel knee-operated wash hand basin with 0.9mm main construction for hands-free water control at workplace handwashing points. Its Easy Push front panel can be operated with either knee, leaving both hands free for washing. An aerated gooseneck spout supplies the basin, and an easy-mount wall bracket with multiple fixing holes supports installation. The basin has a pre-punched 40mm waste outlet and a 15mm water inlet.
Demand valve activation is the standard choice: water flows while the knee panel is pressed. Choose B36658(D) with the 50mm standard splashback or B36658(DE) with the extended stainless steel splashback.
Metered valve activation is available under advanced customisation. It supplies water for a preset period after activation. Select B36658(M) with the 50mm standard splashback or B36658(ME) with the extended splashback.
Use the B36658 at personnel handwashing points in food-processing facilities, commercial kitchens, catering areas and staff change rooms. It also provides a knee-operated option for healthcare and laboratory support areas where this arrangement meets the project specification. Confirm overall and bowl dimensions, mounting height, site services and access before installation.
An Advanced Ø22mm thermostatic mixing valve is available as a separately priced optional extra. See the mixing-valve FAQ for selection guidance.
Features & benefits
Knee-operated Easy Push panel
Operate the front panel with either knee to keep both hands free for washing.
Aerated gooseneck spout
A gooseneck spout delivers aerated water into the handwashing basin.
Grade 304 stainless steel construction
Grade 304 stainless steel with 0.9mm main construction for commercial and workplace handwashing points.
Wall mounting bracket
The easy-mount bracket includes multiple fixing holes for wall installation.
Extended splashback option
D and M models have a 50mm standard splashback. DE and ME models include the extended stainless steel splashback.
Demand or metered control
Demand valve activation is standard. Metered valve activation is available through advanced customisation.
Optional Pre-Tempered Water
An Advanced Ø22mm thermostatic mixing valve is available as a separately priced optional extra for a pre-tempered water supply.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
- Extended Splashback
- Configurable
- No
- Yes
- Valve activation
- Configurable
- Demand Tap
- Metered Tap
- Bowl Depth
- Fixed
- 150 mm
- Bowl Length
- Fixed
- 446 mm
- Bowl Width
- Fixed
- 284 mm
- Inlet Diameter
- Fixed
- 15 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 0.9 mm
- Splashback Height
- By model
- 50 mm
- 400 mm
- Waste Outlet Diameter
- Fixed
- 40 mm
| Specification | Value | Configuration |
|---|---|---|
| Extended Splashback |
| Configurable |
| Valve activation |
| Configurable |
| Bowl Depth |
| Fixed |
| Bowl Length |
| Fixed |
| Bowl Width |
| Fixed |
| Inlet Diameter |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Splashback Height |
| By model |
| Waste Outlet Diameter |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B36658(D) | Wash Basin, Grade 304 Stainless Steel, 0.9mm Main Construction, 500mm × 417mm × 508mm Overall, 446mm × 284mm × 150mm Bowl with 50mm Standard Splashback, Ø40mm Pre-Punched Waste Outlet, 15mm Water Inlet, Easy Push Knee-Operated Front Panel, Demand Valve Activation, Aerated Gooseneck Spout and Specification Reference B36658{PSS} Wash Basin, Knee Operated, Demand Valve | 150 mm | 446 mm | 284 mm | Demand Tap | No | 15 mm | Stainless Steel Grade 304 | 0.9 mm | 50 mm | 40 mm | View specifications
| |
| B36658(DE) | Wash Basin, Grade 304 Stainless Steel, 0.9mm Main Construction, Ø40mm Pre-Punched Waste Outlet and 15mm Water Inlet with Easy Push Knee-Operated Front Panel, Demand Valve Activation, Aerated Gooseneck Spout, 400mm Extended Stainless Steel Splashback and Specification Reference B36658{PSS} Wash Basin, Knee, Demand, Extended Splashback | - | - | - | Demand Tap | Yes | 15 mm | Stainless Steel Grade 304 | 0.9 mm | 400 mm | 40 mm | View specifications
| |
| B36658(M) | Wash Basin, Grade 304 Stainless Steel, 0.9mm Main Construction, with 50mm Standard Splashback, Ø40mm Pre-Punched Waste Outlet, 15mm Water Inlet, Easy Push Knee-Operated Front Panel, Metered Valve Activation, Aerated Gooseneck Spout and Specification Reference B36658{PSS} Wash Basin, Knee Operated, Metered Valve | - | - | - | Metered Tap | No | 15 mm | Stainless Steel Grade 304 | 0.9 mm | 50 mm | 40 mm | View specifications
| |
| B36658(ME) | Wash Basin, Grade 304 Stainless Steel, 0.9mm Main Construction, with Ø40mm Pre-Punched Waste Outlet, 15mm Water Inlet, Easy Push Knee-Operated Front Panel, Metered Valve Activation, Aerated Gooseneck Spout, Extended Stainless Steel Splashback and Specification Reference B36658{PSS} Basin, Knee-Operated, Metered, Extended Splashback | - | - | - | Metered Tap | Yes | 15 mm | Stainless Steel Grade 304 | 0.9 mm | - | 40 mm | View specifications
|
