B52672 Footwear Sanitation Baths without Handrails
Image indicative of the range. Configurations may differ.
1 / 1 product images
Floor-mounted Grade 304 stainless steel footwear sanitation baths without handrails, with removable aluminium treadplate or Grade 304 stainless steel grid inserts.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
Price on request
1 of 1 option selected
Removable Insert: Grade 304 Stainless Steel Grid
B52672(0600G) is ready to quote.
Removable Insert
Selected model
B52672(0600G)
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
Floor-mounted footwear sanitation bath with Grade 304 stainless steel main construction. Bath dimensions: 650mm (L) x 600mm (W) x 190mm (H). The 600mm width provides 1 walkway. Supplied without handrails. The removable grid insert is Grade 304 stainless steel.
Specifications
Floor Mounted Footwear Sanitation Bath, 1 Walkway, 650mm (L) x 600mm (W) x 190mm (H), Grade 304 Stainless Steel Construction, without Handrails, with Removable Grade 304 Stainless Steel Grid Insert.
- Model: B52672(0600G)
- Main Construction: Grade 304 Stainless Steel
- Bath Dimensions: 650mm (L) x 600mm (W) x 190mm (H)
- Number of Walkways: 1
- Safety Handrails: No
- Insert: Removable Grade 304 Stainless Steel Grid Insert
Shortlist this configuration, add project notes and compare your options.
Product overview
B52672 footwear sanitation baths provide a defined footwear treatment point at production entrances, changing-room exits and transitions between work areas. They can be included in footwear hygiene procedures for food and beverage facilities and meat and poultry processing areas.
The main construction is Grade 304 stainless steel. Choose removable aluminium treadplate inserts or a removable Grade 304 stainless steel grid insert. B52672 is supplied without handrails; select the corresponding B52673 range where safety handrails are required.
The range is available in one, two and three walkway widths. The listed single-walkway models are B52672(0600) with aluminium treadplate and B52672(0600G) with a stainless steel grid. Wider configurations are available on enquiry. Exact dimensions apply to the selected model.

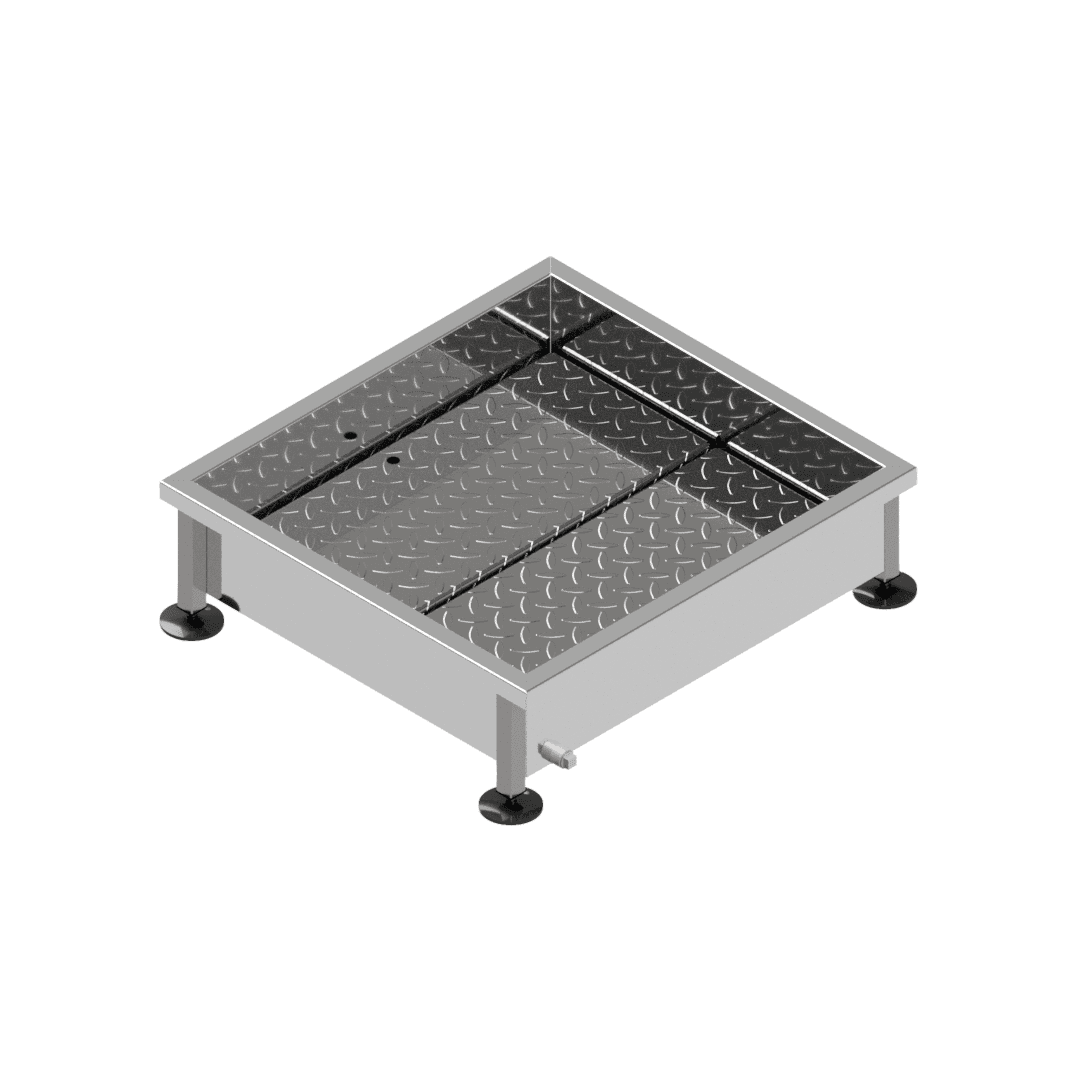

The B52672(0600) aluminium model has two removable treadplate panels with lifting holes, four screw-adjustable feet for levelling and a low-level side drain outlet for solution changes and cleaning. Its overall outside dimensions are 689mm (L) x 602mm (W) x 187mm (H), including the feet projection. Bath-body length is 642mm. Overall height varies with foot adjustment.
Features & benefits
Grade 304 Stainless Steel Construction
Stainless steel main construction provides a durable bath for repeated use at production entrances.
Removable Walking Inserts
Aluminium treadplate or Grade 304 stainless steel grid inserts lift out to provide access to the bath interior for cleaning.
Adjustable Feet for Levelling
The B52672(0600) aluminium model has four screw-adjustable feet for levelling the bath during installation.
Walkway Width Options
One, two or three walkway widths let you match the bath to the entrance layout and number of walkways required.
Drain Outlet for Solution Changes
The B52672(0600) aluminium model has a low-level side outlet that provides a drainage point for solution changes and cleaning.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 187 mm
- Length
- By model
- 650 mm
- 689 mm
- Width
- By model
- 600 mm
- 602 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Adjustable Feet
- Fixed
- Yes
- Removable Insert
- Configurable
- Aluminium Treadplate
- Grade 304 Stainless Steel Grid
- Bath Body Length
- Fixed
- 642 mm
- Drain Outlet Centre Height
- Fixed
- 49 mm
- Drainage
- Fixed
- Side Drain Outlet
- Feet Quantity
- Fixed
- 4
- Insert Quantity
- Fixed
- 2
- Material
- Fixed
- Stainless Steel Grade 304
- Number of Walkways
- Fixed
- 1
- Safety Handrails
- Fixed
- No
- Bath Height
- Fixed
- 190 mm
| Specification | Value | Configuration |
|---|---|---|
| Adjustable Feet |
| Fixed |
| Removable Insert |
| Configurable |
| Bath Body Length |
| Fixed |
| Drain Outlet Centre Height |
| Fixed |
| Drainage |
| Fixed |
| Feet Quantity |
| Fixed |
| Insert Quantity |
| Fixed |
| Material |
| Fixed |
| Number of Walkways |
| Fixed |
| Safety Handrails |
| Fixed |
| Bath Height |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B52672(0600) | Footwear Sanitation Bath, Grade 304 Stainless Steel, 689mm (L) x 602mm (W) x 187mm (H) Overall, with Floor Mounting, 1 Walkway, Two Removable Aluminium Treadplate Inserts, Four Adjustable Feet and Side Drain Outlet, without Handrails; Bath Body Length 642mm. Overall Length Includes Feet Projection; Height Varies with Foot Adjustment and Is 187mm at the Stated Foot Setting Sanitation Bath, Footwear, 1 Walkway | Yes | 642 mm | 49 mm | Side Drain Outlet | 4 | 187 mm | 2 | 689 mm | Stainless Steel Grade 304 | 1 | Aluminium Treadplate | No | 602 mm | - | View specifications
| |
| B52672(0600G) | Footwear Sanitation Bath, Grade 304 Stainless Steel, 650mm (L) x 600mm (W) x 190mm (H), with Floor Mounting, 1 Walkway, No Handrails and Removable Grade 304 Stainless Steel Grid Insert Sanitation Bath, Footwear, 1 Walkway | - | - | - | - | - | - | - | 650 mm | Stainless Steel Grade 304 | 1 | Grade 304 Stainless Steel Grid | No | 600 mm | 190 mm | View specifications
|
