B57110(0700) Large Two-Basket Grease Trap — 110 mm Connections

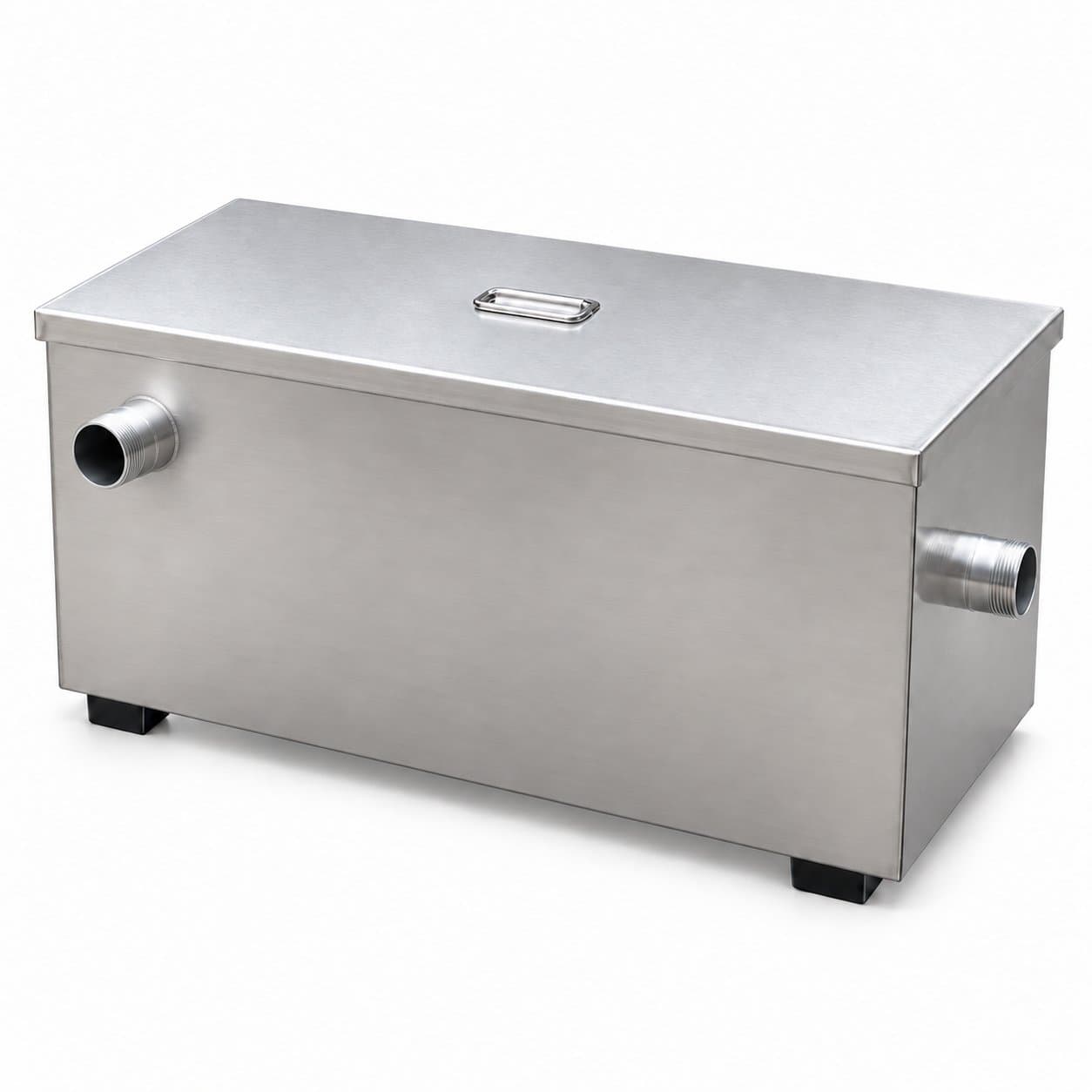

Image indicative of the range. Configurations may differ.
1 / 4 product images
Large Two-Basket Grease Trap for large format sinks and pot sinks. Grade 304 stainless steel, 700 × 400 × 400 mm, with 110 mm connections and three outlet-layout choices.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
1 of 1 options selected
B57110(FS-0700-110-2B) is ready to quote.
Outlet Configuration
Selected model
B57110(FS-0700-110-2B)
Your configuration
Price on request
- Outlet Configuration
- Front and Side (90°)
- Height
- 400 mm
- Drop-On Lid
- With Handle
- Inlet Diameter
- 110 mm
- Length
- 700 mm
- Material
- Stainless Steel Grade 304
- Material Thickness
- 0.9 mm
- Primary Basket Perforation Diameter
- 6 mm
- Secondary Basket Perforation Diameter
- 3 mm
- Trap Basket Count
- 2
- Waste Outlet Diameter
- 110 mm
- Width
- 400 mm
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
Suitable for large format sinks and pot sinks. Grade 304 stainless steel grease trap with 0.9 mm main-body thickness, 700 mm (L) x 400 mm (W) x 400 mm (H). Diameter 110 mm inlet and outlet on the front and side at 90° to each other. Two-basket system: primary basket with diameter 6 mm perforations and secondary basket with diameter 3 mm perforations. Drop-on lid with handle.
Specifications
Basterfield B57110(FS-0700-110-2B). Grade 304 stainless steel grease trap with 0.9 mm main-body thickness, 700 mm (L) x 400 mm (W) x 400 mm (H). Diameter 110 mm inlet and outlet on the front and side at 90° to each other. Two-basket system: primary basket with diameter 6 mm perforations and secondary basket with diameter 3 mm perforations. Drop-on lid with handle.
- Material: Stainless Steel Grade 304
- Length: 700 mm
- Width: 400 mm
- Height: 400 mm
- Inlet Diameter: 110 mm
- Waste Outlet Diameter: 110 mm
- Trap Basket Count: 2
- Primary Basket Perforation Diameter: 6 mm
- Secondary Basket Perforation Diameter: 3 mm
- Drop-On Lid: With Handle
- Main-Body Thickness: 0.9 mm
- Inlet/Outlet Arrangement: Front and Side (90°)
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield B57110(0700) large two-basket grease trap is suitable for large format sinks and pot sinks. It measures 700 × 400 × 400 mm (L × W × H) and has diameter 110 mm inlet and outlet connections.
Grade 304 stainless steel construction uses a 0.9 mm main-body thickness. The two-basket system has a primary basket with diameter 6 mm perforations and a secondary basket with diameter 3 mm perforations. A drop-on lid with a handle provides access from above.
Choose one of three inlet/outlet layouts: opposite sides; both connections on the same side (front); or front and side at 90° to each other. Each configuration has one inlet and one outlet.
The range also includes a compact 500 × 300 × 400 mm model with 50 mm connections for single bowls and prep sinks. Confirm the sink discharge flow, grease load, pipe connections and installation space when selecting a model.
Features & benefits
For Large Format Sinks and Pot Sinks
700 × 400 × 400 mm body with diameter 110 mm connections, suitable for large format sinks and pot sinks.
Three Outlet Layouts
Opposite sides, both connections on the front, or front and side at 90°.
Grade 304 Stainless Steel
Grade 304 stainless steel construction with a 0.9 mm main-body thickness.
Two-Basket System
Primary basket with diameter 6 mm perforations and secondary basket with diameter 3 mm perforations.
Drop-On Lid with Handle
Lift-off lid and removable baskets provide access for cleaning.
Product data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 400 mm
- Length
- Fixed
- 700 mm
- Width
- Fixed
- 400 mm
- Outlet Configuration
- Configurable
- Opposite Sides
- Same Side (Front)
- Front and Side (90°)
- Drop-On Lid
- Fixed
- With Handle
- Inlet Diameter
- Fixed
- 110 mm
- Material
- Fixed
- Stainless Steel Grade 304
- Material Thickness
- Fixed
- 0.9 mm
- Primary Basket Perforation Diameter
- Fixed
- 6 mm
- Secondary Basket Perforation Diameter
- Fixed
- 3 mm
- Trap Basket Count
- Fixed
- 2
- Waste Outlet Diameter
- Fixed
- 110 mm
| Specification | Value | Configuration |
|---|---|---|
| Outlet Configuration |
| Configurable |
| Drop-On Lid |
| Fixed |
| Inlet Diameter |
| Fixed |
| Material |
| Fixed |
| Material Thickness |
| Fixed |
| Primary Basket Perforation Diameter |
| Fixed |
| Secondary Basket Perforation Diameter |
| Fixed |
| Trap Basket Count |
| Fixed |
| Waste Outlet Diameter |
| Fixed |
Available models & compare variants
Compare 3 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price | Spec sheet | Actions | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B57110(FF-0700-110-2B) | Grease Trap Stainless Steel Grade 304 0.9mm Main-Body Thickness, 700mm (L) X 400mm (W) X 400mm (H) with Ø110mm Inlet and Outlet on the Same Side (Front), Two-Basket System, and Drop-On Lid with Handle Grease Trap 700x400x400, 304 SS, Same-Side | 400 mm | With Handle | 110 mm | Same Side (Front) | 700 mm | Stainless Steel Grade 304 | 0.9 mm | 6 mm | 3 mm | 2 | 110 mm | 400 mm | Quote required | ||
| B57110(FS-0700-110-2B) | Grease Trap Stainless Steel Grade 304 0.9mm Main-Body Thickness, 700mm (L) X 400mm (W) X 400mm (H) with Ø110mm Inlet and Outlet on the Front and Side at 90°, Two-Basket System, and Drop-On Lid with Handle Grease Trap 700x400x400, 304 SS, Front/Side 90° | 400 mm | With Handle | 110 mm | Front and Side (90°) | 700 mm | Stainless Steel Grade 304 | 0.9 mm | 6 mm | 3 mm | 2 | 110 mm | 400 mm | Quote required | ||
| B57110(OS-0700-110-2B) | Grease Trap Stainless Steel Grade 304 0.9mm Main-Body Thickness, 700mm (L) X 400mm (W) X 400mm (H) with Ø110mm Inlet and Outlet on Opposite Sides, Two-Basket System, and Drop-On Lid with Handle Grease Trap 700x400x400, 304 SS, Opposite-Side | 400 mm | With Handle | 110 mm | Opposite Sides | 700 mm | Stainless Steel Grade 304 | 0.9 mm | 6 mm | 3 mm | 2 | 110 mm | 400 mm | Quote required |
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B57110(0700).
PDFProduct warranty
12-month warranty and claims information for B57110(0700).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product FAQ
