B65145 Boot Scrubber
Image indicative of the range. Configurations may differ.
1 / 5 product images
Single-station Grade 304 stainless steel boot wash unit with a water-fed hand brush, foot-operated valve and centre waste outlet. Assembly with brush stored: 499 mm across × 556 mm front-to-back × 869 mm high, excluding the flexible hose and working clearance. Tray: 400 × 492 mm; rim height: 299 mm front, 397 mm rear, at the foot setting shown. Adjustable feet; ½″ BSP water inlet and 1½″ BSPT waste outlet.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R7,657.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview

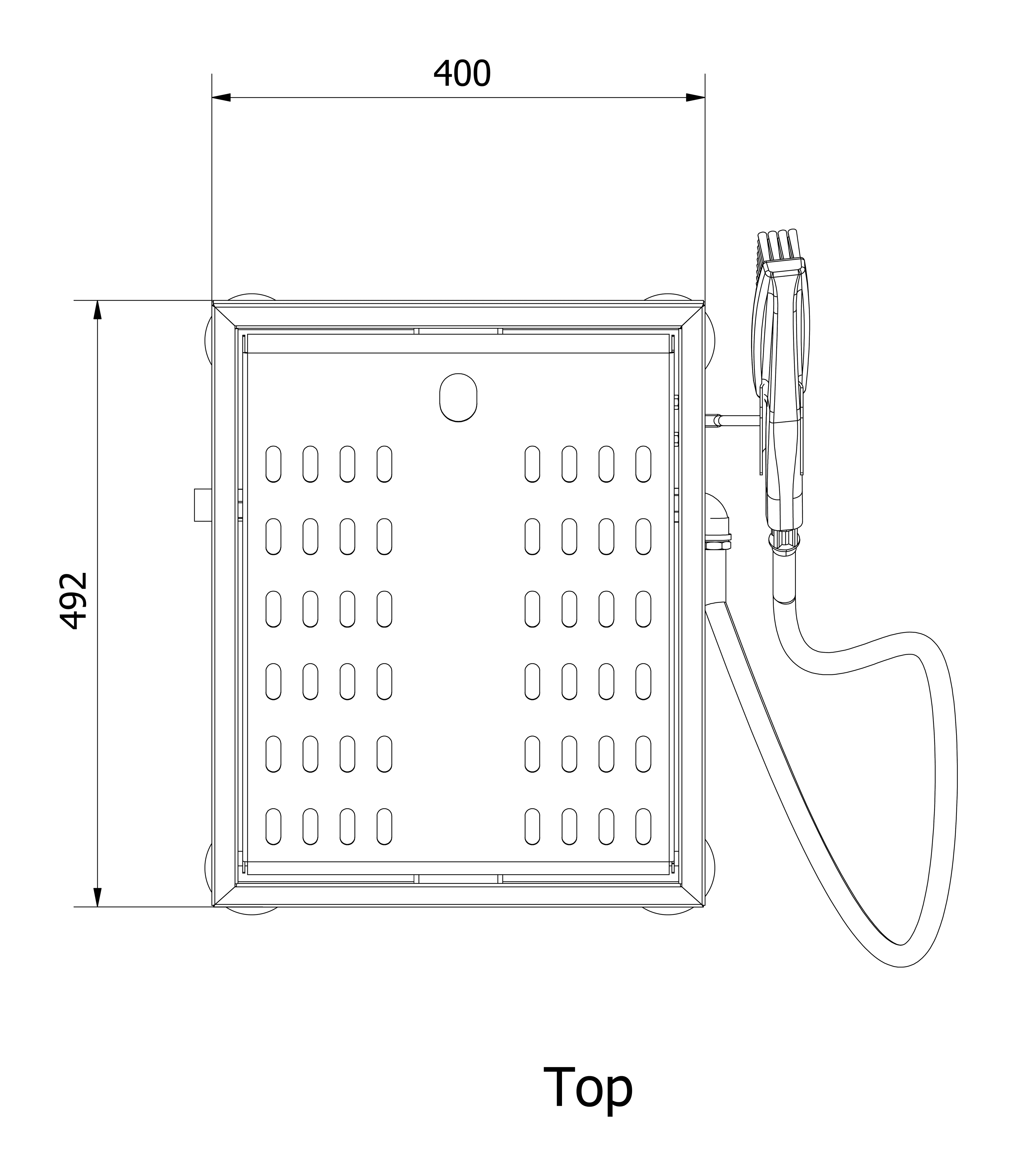

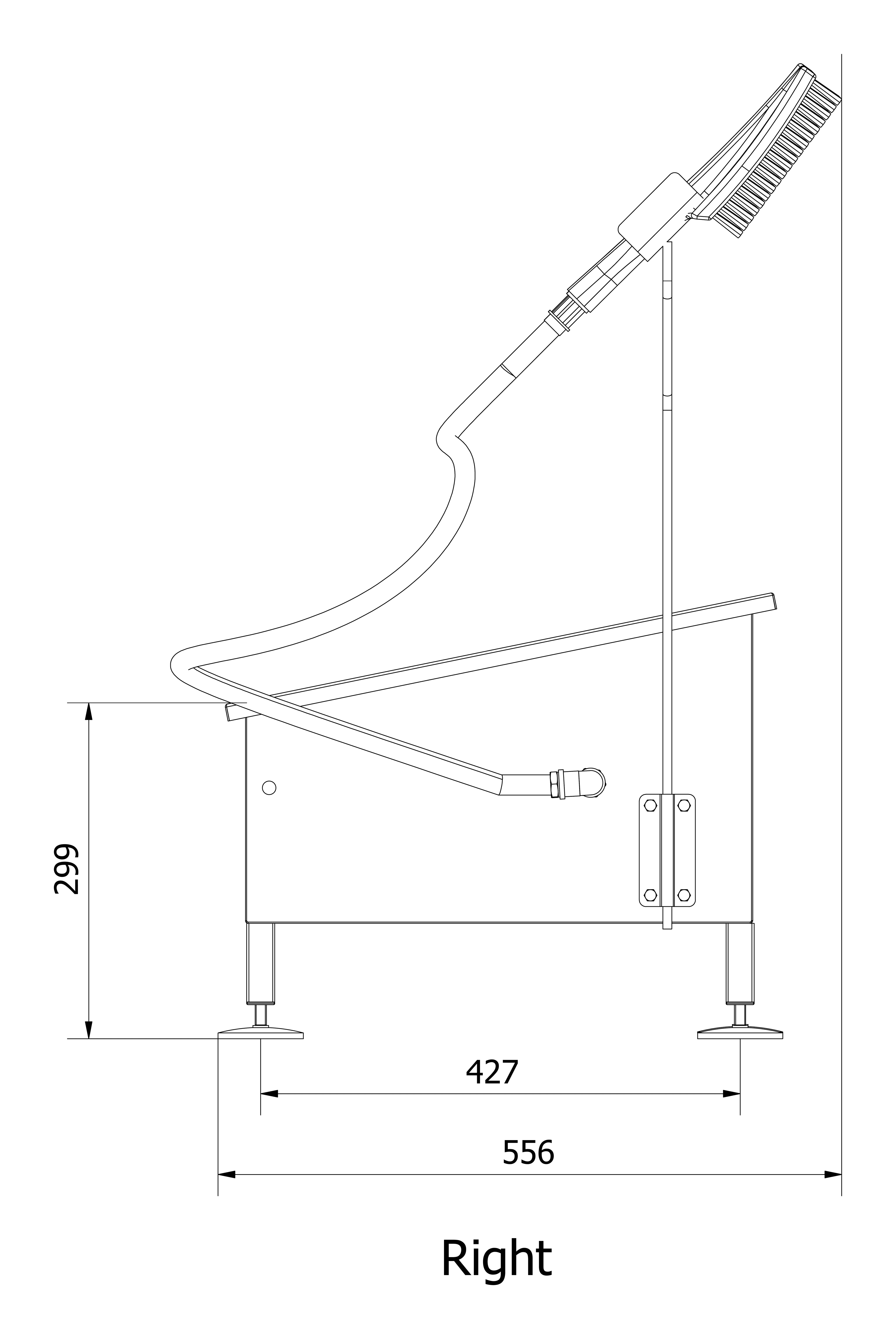

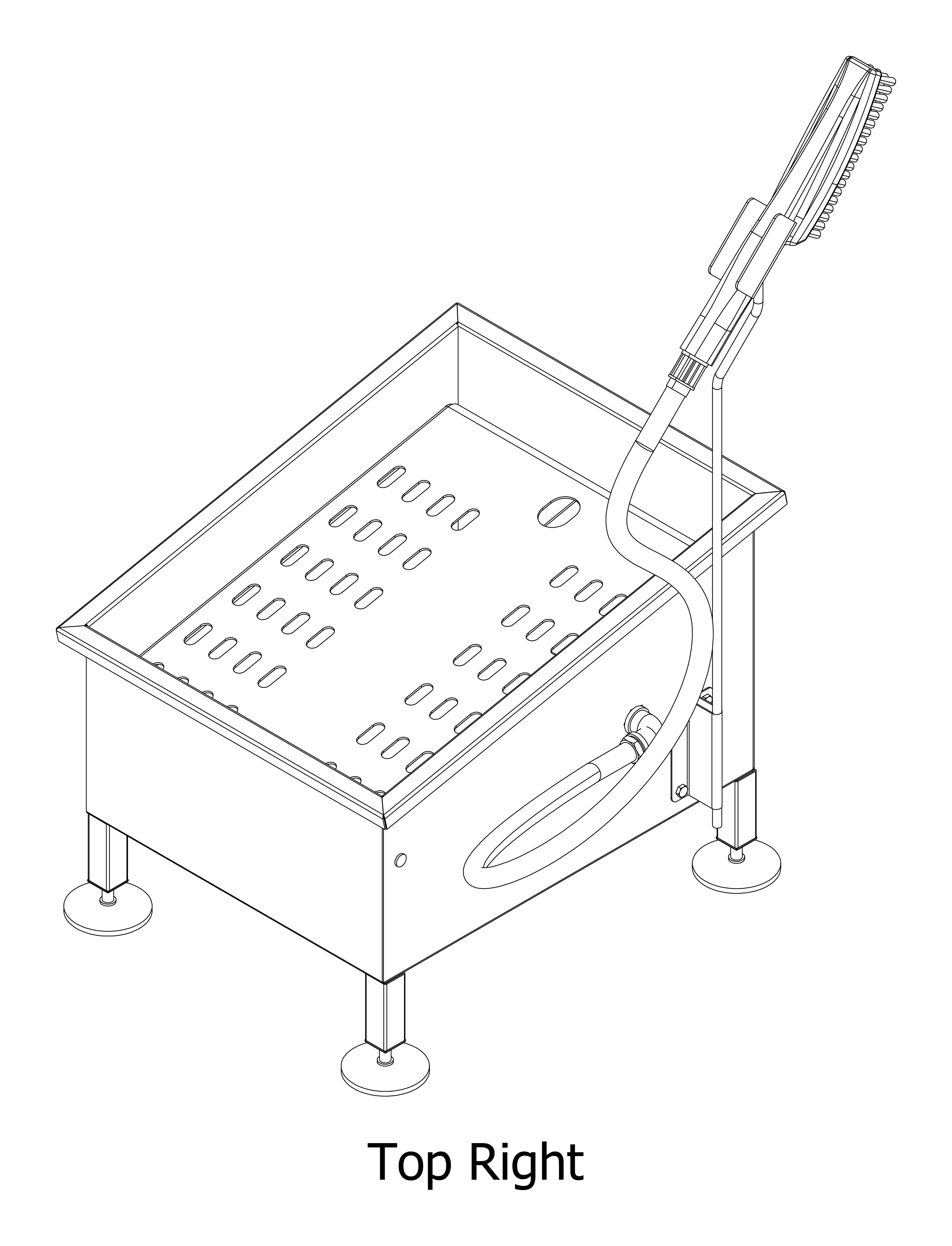

The Basterfield B65145 is a single-station manual boot wash unit for cleaning footwear at changing-room and production-area entrances. With the brush in its holder, the dimensioned assembly measures 499 mm across the front view × 556 mm front-to-back × 869 mm high, excluding the flexible hose loop and working clearance. The tray measures 400 mm across × 492 mm front-to-back. Rim heights above the floor are 299 mm at the front and 397 mm at the rear; foot centres are 337 mm across × 427 mm front-to-back. Heights are shown at the levelling-foot setting in the GA drawings and vary with adjustment. The drainage enclosure has a centre waste outlet.
A hand-held, water-fed brush lets the user direct scrubbing and rinsing to the areas of the boot that need attention. Water is activated by a foot-operated valve, while the brush is moved by hand. The unit can be used at butcheries, abattoirs, poultry processors, fresh-produce packhouses, dairies, and fish and seafood processors where manual wet boot washing forms part of the site's entry procedure. Position it at changing-room or production entrances to serve processing, preparation and packing areas.
Grade 304 stainless steel construction provides a durable, easy-to-clean framework. The drainage enclosure collects wash water and directs it to the centre outlet, while adjustable feet allow the unit to be levelled on the floor.
Connect the water supply to the ½″ BSP water inlet and provide a suitable waste connection for the centre 1½″ BSPT waste outlet. Allow clear working space around the station and plan the installation layout before ordering. Use the unit as part of the site's footwear-cleaning procedure; scrubbing and rinsing alone do not establish disinfection.
Features & benefits
Grade 304 stainless steel
Stainless steel construction provides a durable framework with surfaces that can be cleaned as part of routine wash-area housekeeping.
Foot-operated water control
A foot-operated valve activates the water supply while the user guides the scrubbing brush by hand. The water inlet connection is ½″ BSP.
Water-fed hand brush
The hand-held brush combines manual scrubbing with water delivery, allowing the user to work on areas of the boot that need attention.
Compact single-station layout
The tray measures 400 × 492 mm. With the brush in its holder, the dimensioned assembly spans 499 mm across × 556 mm front-to-back × 869 mm high at the foot setting shown. Allow additional space for the flexible hose, user and cleaning access.
Centre waste outlet
The drainage enclosure collects wash water and directs it to a centre 1½″ BSPT waste outlet connection.
Adjustable levelling feet
Adjustable feet allow the boot wash unit to be levelled on the floor during installation.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Technical media
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Specification support
Need a second set of eyes?
Compatible spares

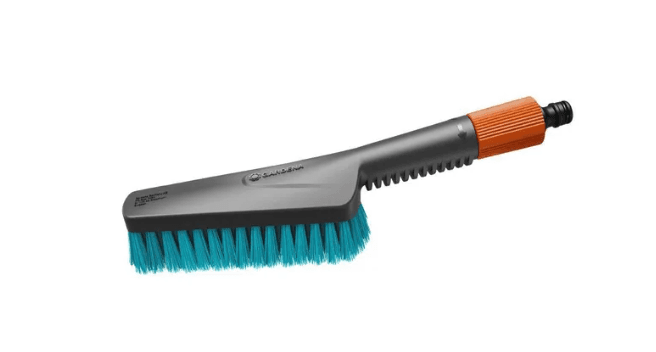

Hand Brush Assembly
Fits: All models
Quantity: 1
