B65166(2P) Manual Boot Washer with Sole Brushes

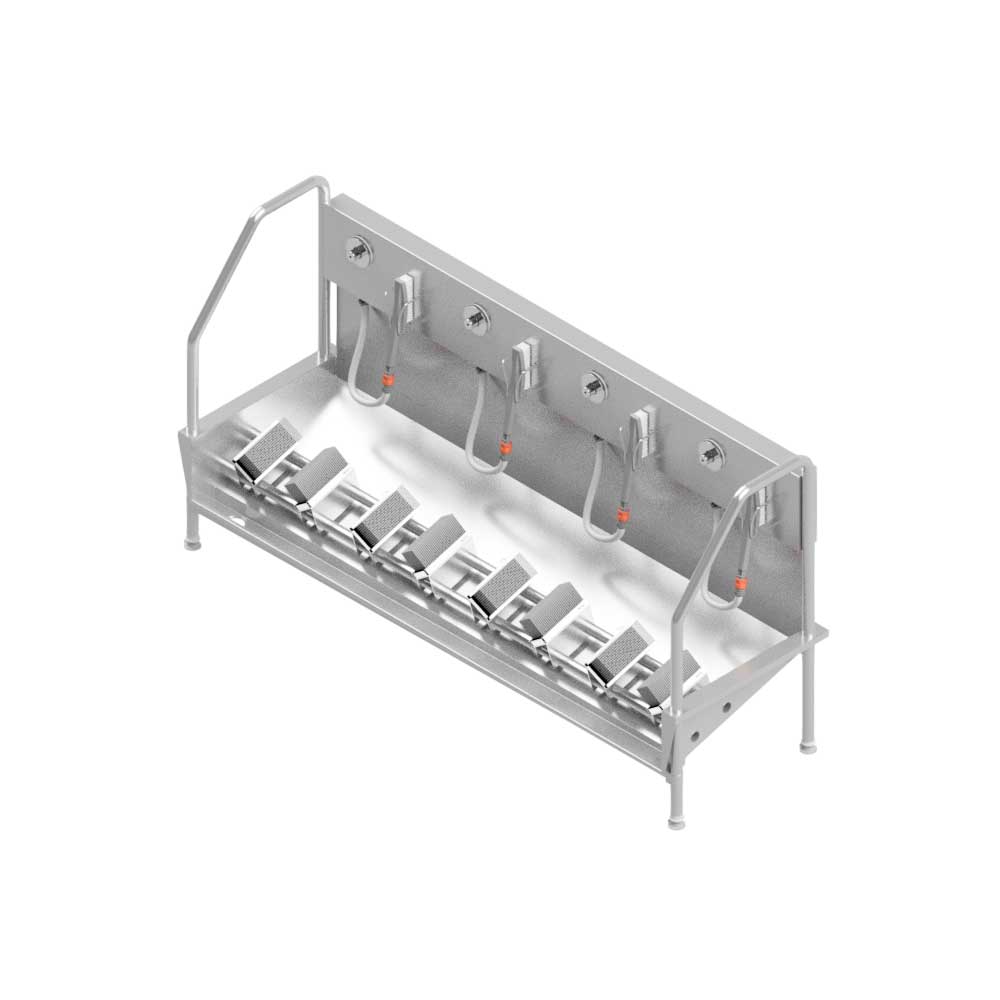

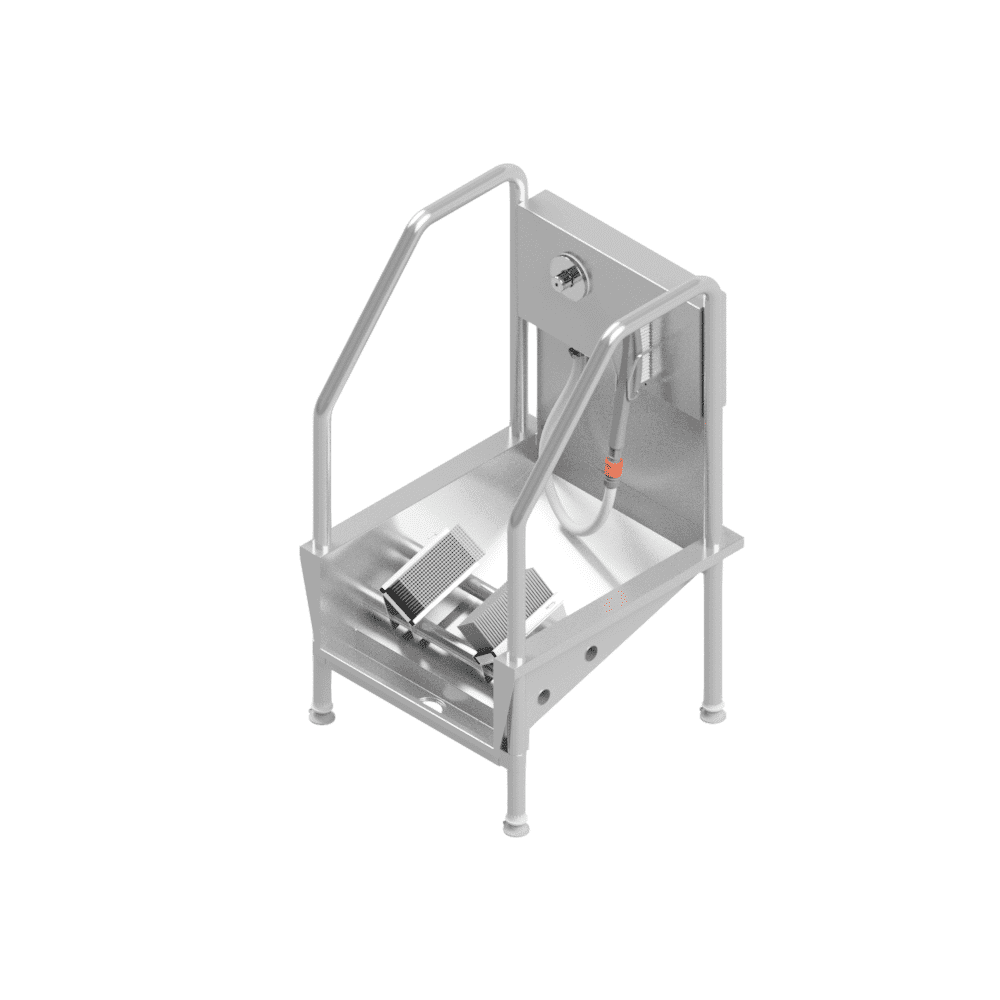

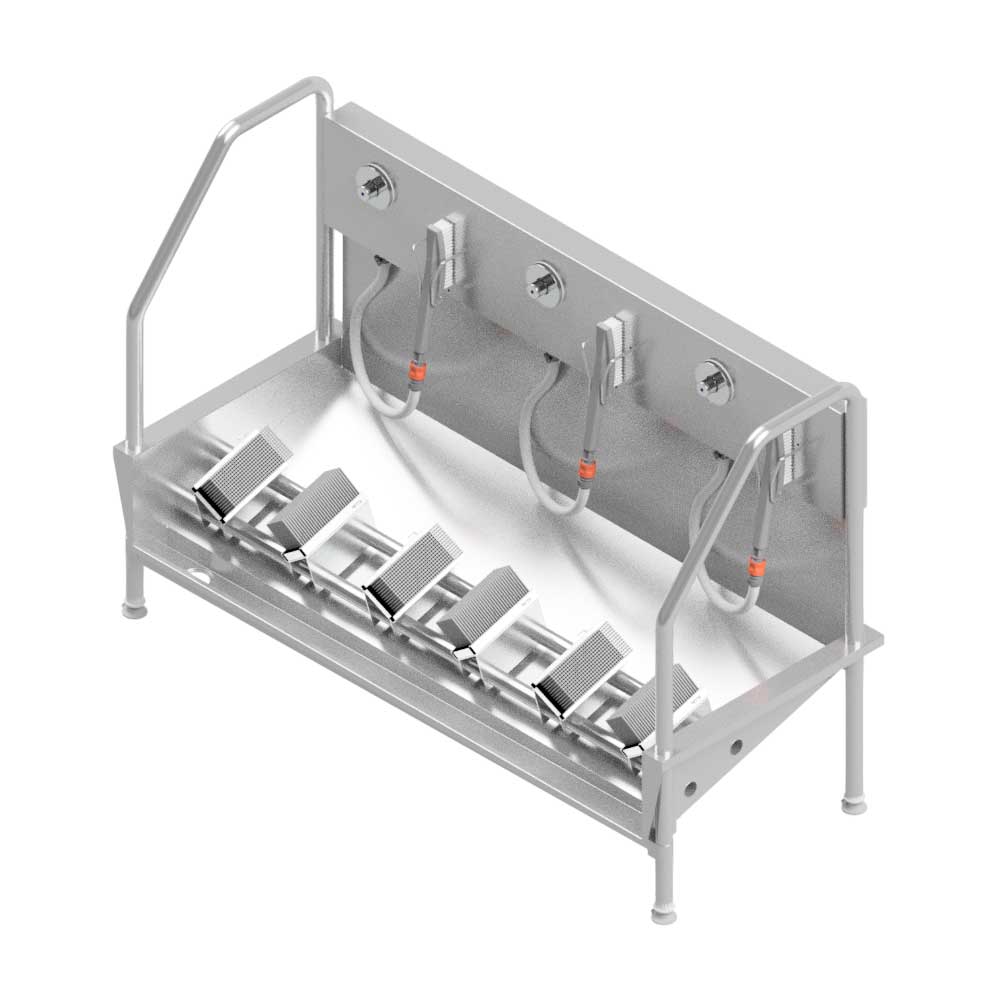

Image indicative of the range. Configurations may differ.
1 / 4 product images
Manual boot washer with fixed sole-cleaning brushes and a hand-held water-fed brush at each station. Grade 304 stainless steel body, frame and handrails, with other materials used for functional components.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
From R8,448.00 (excl. VAT)
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
0 of 1 options selected
Select Number of stations to complete your configuration.
Number of stations
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
Each station has fixed brushes for cleaning boot soles and a hand-held water-fed scrubbing brush for the sides and uppers. The fixed brush arrangement is for sole cleaning only.
Water operation Water flow is controlled by a mixer lever that can be operated by hand or wrist. Wrist operation can reduce direct hand contact with the lever. The current design uses a mixer rather than a push-button valve.
Materials The main body, structural frame, handrails and wetted surfaces of the wash enclosure are Grade 304 stainless steel. The non-wetted rear cover panel is galvanised mild steel, the internal water pipework is copper, and proprietary valves and fittings may have a chrome-plated finish. Brushes and other functional components use materials appropriate to their function. The complete assembly is not manufactured entirely from Grade 304 stainless steel.
Waste connection The standard waste outlet is 1½-inch BSP with a BSPT tapered thread. Outlet position is specified by the selected station configuration.
Operating water pressure Connect to a normal reticulated water supply. A nominal supply pressure of approximately 300 kPa is recommended. Pressure at the mixer must not exceed 600 kPa; install a suitable pressure-reducing valve where the site pressure exceeds this limit.
Installation The unit is freestanding on adjustable feet for levelling. Where required, the adjustable footplates may be anchored to the floor to secure the unit.
Intended use and operating load Normal use allows one user per station to rest one foot on the unit during cleaning. The unit is designed to support the loads imposed under these normal operating conditions. Users must not stand or climb on the unit. No separately certified maximum user-load rating has been established. The product is warranted for its intended use under normal operating conditions.
Dimensions Overall dimensions (L x W x H): one station 610 x 650 x 1100 mm; two stations 1110 x 650 x 1100 mm; three stations 1610 x 650 x 1100 mm; four stations 2110 x 650 x 1100 mm.
Features & benefits
Hand- or wrist-operated mixer lever
Water flow is controlled by a mixer lever that can be operated by hand or wrist. Wrist operation reduces direct hand contact with the lever.
Key wash-area components in Grade 304 stainless steel
The main body, structural frame, handrails and wetted surfaces of the wash enclosure are Grade 304 stainless steel. The complete assembly also includes a galvanised mild-steel rear cover, copper internal pipework, and functional components made from other suitable materials.
1½-inch BSPT waste connection
The standard waste outlet is 1½-inch BSP with a BSPT tapered thread. Outlet position depends on the selected station configuration, helping match the unit to the intended drainage layout.
Installation-ready water-pressure guidance
Connect to a normal reticulated water supply. A nominal supply pressure of approximately 300 kPa is recommended, and pressure at the mixer must not exceed 600 kPa. Where site pressure exceeds this limit, install a suitable pressure-reducing valve.
Freestanding levelling feet with optional floor anchoring
The unit is freestanding on adjustable feet for levelling. Where required, the adjustable footplates may be anchored to the floor to secure the unit.
Fixed sole brushes and water-fed hand brush
Each station combines fixed brushes for cleaning boot soles with a hand-held water-fed scrubbing brush for the sides and uppers. The fixed brushes clean soles only.
One to four stations
Available with one, two, three or four stations: 610, 1110, 1610 or 2110 mm long respectively. All configurations are 650 mm wide and 1100 mm high.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for B65166(2P).
PDFProduct warranty
12-month warranty and claims information for B65166(2P).
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
- Number of stations
- Configurable
- One
- Two
- Three
- Four
- Waste Outlet Orientation
- By model
- Centre
- Left Hand
| Specification | Value | Configuration |
|---|---|---|
| Number of stations |
| Configurable |
| Waste Outlet Orientation |
| By model |
Available models & compare variants
Compare 4 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | |||||
|---|---|---|---|---|---|
| B65166(S1-112-2PC) | B65166(2P) Manual Boot Washer. Overall Dimensions: 610 mm (L) x 650 mm (W) x 1100 mm (H). One Station; Centre Waste Outlet. Each Station Has Fixed Brushes for Cleaning Boot Soles and a Hand-Held Water-Fed Scrubbing Brush for the Sides and Uppers. The Fixed Brush Arrangement Is for Sole Cleaning Only. Water Flow Is Controlled by a Mixer Lever That Can Be Operated by Hand or Wrist. Wrist Operation Can Reduce Direct Hand Contact with the Lever. The Current Design Uses a Mixer Rather than a Push-Button Valve. The Main Body, Structural Frame, Handrails and Wetted Surfaces of the Wash Enclosure Are Grade 304 Stainless Steel. The Non-Wetted Rear Cover Panel Is Galvanised Mild Steel, the Internal Water Pipework Is Copper, and Proprietary Valves and Fittings May Have a Chrome-Plated Finish. Brushes and Other Functional Components Use Materials Appropriate to Their Function. The Complete Assembly Is Not Manufactured Entirely from Grade 304 Stainless Steel. The Standard Waste Outlet Is 1½-Inch BSP with a BSPT Tapered Thread. Outlet Position Is Specified by the Selected Station Configuration. Connect to a Normal Reticulated Water Supply. A Nominal Supply Pressure of Approximately 300 kPa Is Recommended. Pressure at the Mixer Must Not Exceed 600 kPa; Install a Suitable Pressure-Reducing Valve Where the Site Pressure Exceeds This Limit. The Unit Is Freestanding on Adjustable Feet for Levelling. Where Required, the Adjustable Footplates May Be Anchored to the Floor to Secure the Unit. Normal Use Allows One User per Station to Rest One Foot on the Unit During Cleaning. The Unit Is Designed to Support the Loads Imposed Under These Normal Operating Conditions. Users Must Not Stand or Climb on the Unit. No Separately Certified Maximum User-Load Rating Has Been Established. The Product Is Warranted for Its Intended Use Under Normal Operating Conditions. Boot Washer 2P One Station | One | Centre | View specifications
| |
| B65166(S2-112-2PL) | B65166(2P) Manual Boot Washer. Overall Dimensions: 1110 mm (L) x 650 mm (W) x 1100 mm (H). Two Stations; Left Hand Waste Outlet. Each Station Has Fixed Brushes for Cleaning Boot Soles and a Hand-Held Water-Fed Scrubbing Brush for the Sides and Uppers. The Fixed Brush Arrangement Is for Sole Cleaning Only. Water Flow Is Controlled by a Mixer Lever That Can Be Operated by Hand or Wrist. Wrist Operation Can Reduce Direct Hand Contact with the Lever. The Current Design Uses a Mixer Rather than a Push-Button Valve. The Main Body, Structural Frame, Handrails and Wetted Surfaces of the Wash Enclosure Are Grade 304 Stainless Steel. The Non-Wetted Rear Cover Panel Is Galvanised Mild Steel, the Internal Water Pipework Is Copper, and Proprietary Valves and Fittings May Have a Chrome-Plated Finish. Brushes and Other Functional Components Use Materials Appropriate to Their Function. The Complete Assembly Is Not Manufactured Entirely from Grade 304 Stainless Steel. The Standard Waste Outlet Is 1½-Inch BSP with a BSPT Tapered Thread. Outlet Position Is Specified by the Selected Station Configuration. Connect to a Normal Reticulated Water Supply. A Nominal Supply Pressure of Approximately 300 kPa Is Recommended. Pressure at the Mixer Must Not Exceed 600 kPa; Install a Suitable Pressure-Reducing Valve Where the Site Pressure Exceeds This Limit. The Unit Is Freestanding on Adjustable Feet for Levelling. Where Required, the Adjustable Footplates May Be Anchored to the Floor to Secure the Unit. Normal Use Allows One User per Station to Rest One Foot on the Unit During Cleaning. The Unit Is Designed to Support the Loads Imposed Under These Normal Operating Conditions. Users Must Not Stand or Climb on the Unit. No Separately Certified Maximum User-Load Rating Has Been Established. The Product Is Warranted for Its Intended Use Under Normal Operating Conditions. Boot Washer 2P Two Station | Two | Left Hand | View specifications
| |
| B65166(S3-112-2PL) | B65166(2P) Manual Boot Washer. Overall Dimensions: 1610 mm (L) x 650 mm (W) x 1100 mm (H). Three Stations; Left Hand Waste Outlet. Each Station Has Fixed Brushes for Cleaning Boot Soles and a Hand-Held Water-Fed Scrubbing Brush for the Sides and Uppers. The Fixed Brush Arrangement Is for Sole Cleaning Only. Water Flow Is Controlled by a Mixer Lever That Can Be Operated by Hand or Wrist. Wrist Operation Can Reduce Direct Hand Contact with the Lever. The Current Design Uses a Mixer Rather than a Push-Button Valve. The Main Body, Structural Frame, Handrails and Wetted Surfaces of the Wash Enclosure Are Grade 304 Stainless Steel. The Non-Wetted Rear Cover Panel Is Galvanised Mild Steel, the Internal Water Pipework Is Copper, and Proprietary Valves and Fittings May Have a Chrome-Plated Finish. Brushes and Other Functional Components Use Materials Appropriate to Their Function. The Complete Assembly Is Not Manufactured Entirely from Grade 304 Stainless Steel. The Standard Waste Outlet Is 1½-Inch BSP with a BSPT Tapered Thread. Outlet Position Is Specified by the Selected Station Configuration. Connect to a Normal Reticulated Water Supply. A Nominal Supply Pressure of Approximately 300 kPa Is Recommended. Pressure at the Mixer Must Not Exceed 600 kPa; Install a Suitable Pressure-Reducing Valve Where the Site Pressure Exceeds This Limit. The Unit Is Freestanding on Adjustable Feet for Levelling. Where Required, the Adjustable Footplates May Be Anchored to the Floor to Secure the Unit. Normal Use Allows One User per Station to Rest One Foot on the Unit During Cleaning. The Unit Is Designed to Support the Loads Imposed Under These Normal Operating Conditions. Users Must Not Stand or Climb on the Unit. No Separately Certified Maximum User-Load Rating Has Been Established. The Product Is Warranted for Its Intended Use Under Normal Operating Conditions. Boot Washer 2P Three Station | Three | Left Hand | View specifications
| |
| B65166(S4) | B65166(2P) Manual Boot Washer. Overall Dimensions: 2110 mm (L) x 650 mm (W) x 1100 mm (H). Four Stations; Left Hand Waste Outlet. Each Station Has Fixed Brushes for Cleaning Boot Soles and a Hand-Held Water-Fed Scrubbing Brush for the Sides and Uppers. The Fixed Brush Arrangement Is for Sole Cleaning Only. Water Flow Is Controlled by a Mixer Lever That Can Be Operated by Hand or Wrist. Wrist Operation Can Reduce Direct Hand Contact with the Lever. The Current Design Uses a Mixer Rather than a Push-Button Valve. The Main Body, Structural Frame, Handrails and Wetted Surfaces of the Wash Enclosure Are Grade 304 Stainless Steel. The Non-Wetted Rear Cover Panel Is Galvanised Mild Steel, the Internal Water Pipework Is Copper, and Proprietary Valves and Fittings May Have a Chrome-Plated Finish. Brushes and Other Functional Components Use Materials Appropriate to Their Function. The Complete Assembly Is Not Manufactured Entirely from Grade 304 Stainless Steel. The Standard Waste Outlet Is 1½-Inch BSP with a BSPT Tapered Thread. Outlet Position Is Specified by the Selected Station Configuration. Connect to a Normal Reticulated Water Supply. A Nominal Supply Pressure of Approximately 300 kPa Is Recommended. Pressure at the Mixer Must Not Exceed 600 kPa; Install a Suitable Pressure-Reducing Valve Where the Site Pressure Exceeds This Limit. The Unit Is Freestanding on Adjustable Feet for Levelling. Where Required, the Adjustable Footplates May Be Anchored to the Floor to Secure the Unit. Normal Use Allows One User per Station to Rest One Foot on the Unit During Cleaning. The Unit Is Designed to Support the Loads Imposed Under These Normal Operating Conditions. Users Must Not Stand or Climb on the Unit. No Separately Certified Maximum User-Load Rating Has Been Established. The Product Is Warranted for Its Intended Use Under Normal Operating Conditions. Boot Washer 2P Four Station | Four | Left Hand | View specifications
|
Specification support
Need a second set of eyes?
Compatible spares

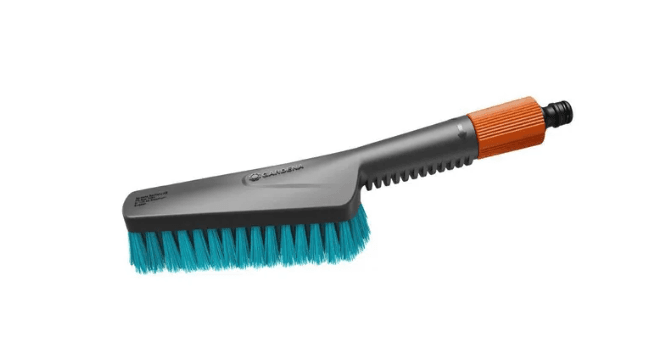

Hand Brush Assembly
Fits: All models
Quantity: 1
Hose Assembly with Clamp and Hand Brush Adaptor
Fits: All models
Quantity: 1

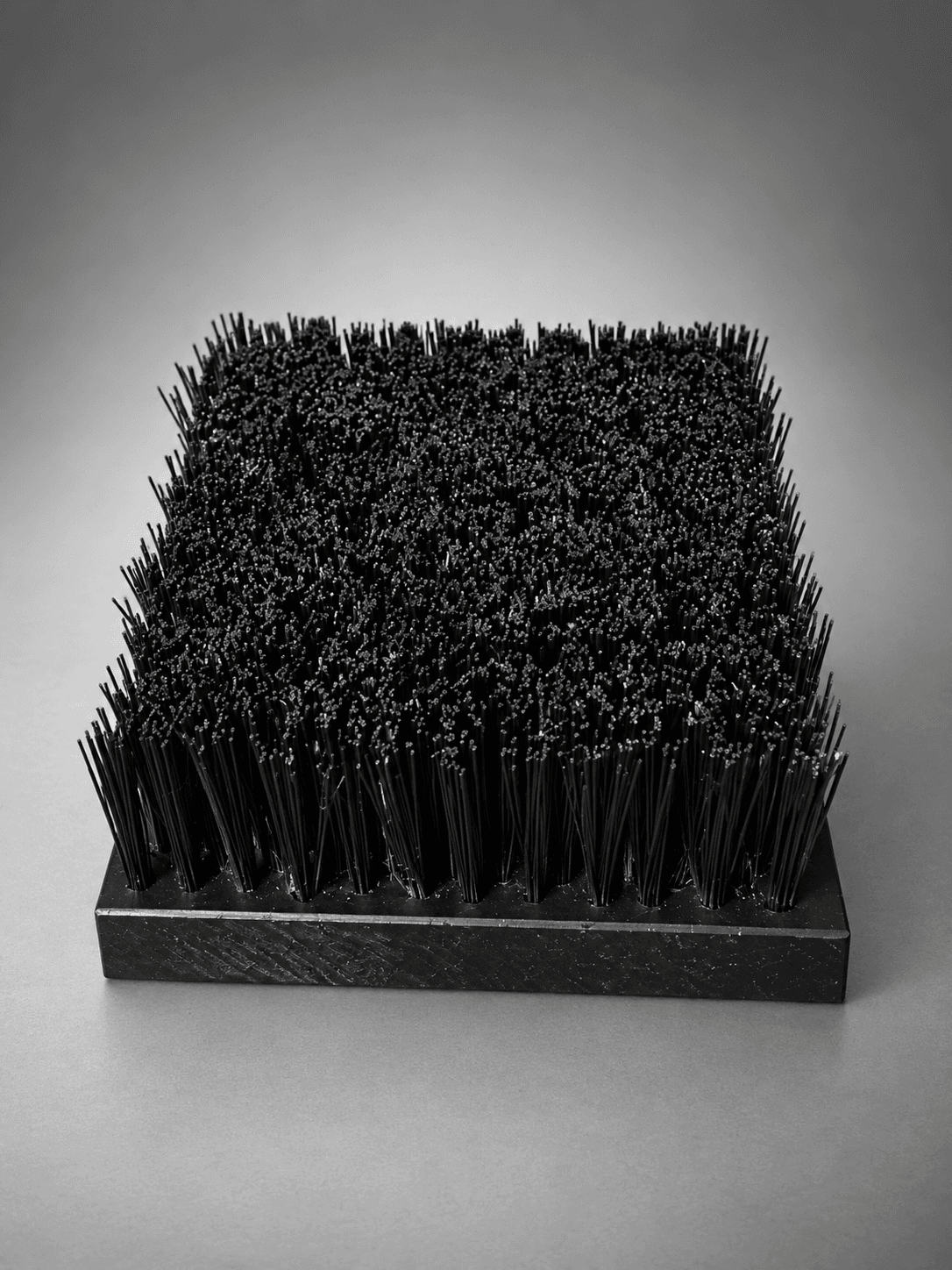

Sole Scrub Brush SG | 204 L x 150 W x 20 H
Fits: B65166(S1-112-2PC) — Boot Washer 2P One Station
Quantity: 1
Sole Scrub Brush SG | 204 L x 150 W x 20 H
Fits: B65166(S2-112-2PL) — Boot Washer 2P Two Station
Quantity: 2
Sole Scrub Brush SG | 204 L x 150 W x 20 H
Fits: B65166(S3-112-2PL) — Boot Washer 2P Three Station
Quantity: 3
Sole Scrub Brush SG | 204 L x 150 W x 20 H
Fits: B65166(S4) — Boot Washer 2P Four Station
Quantity: 4
