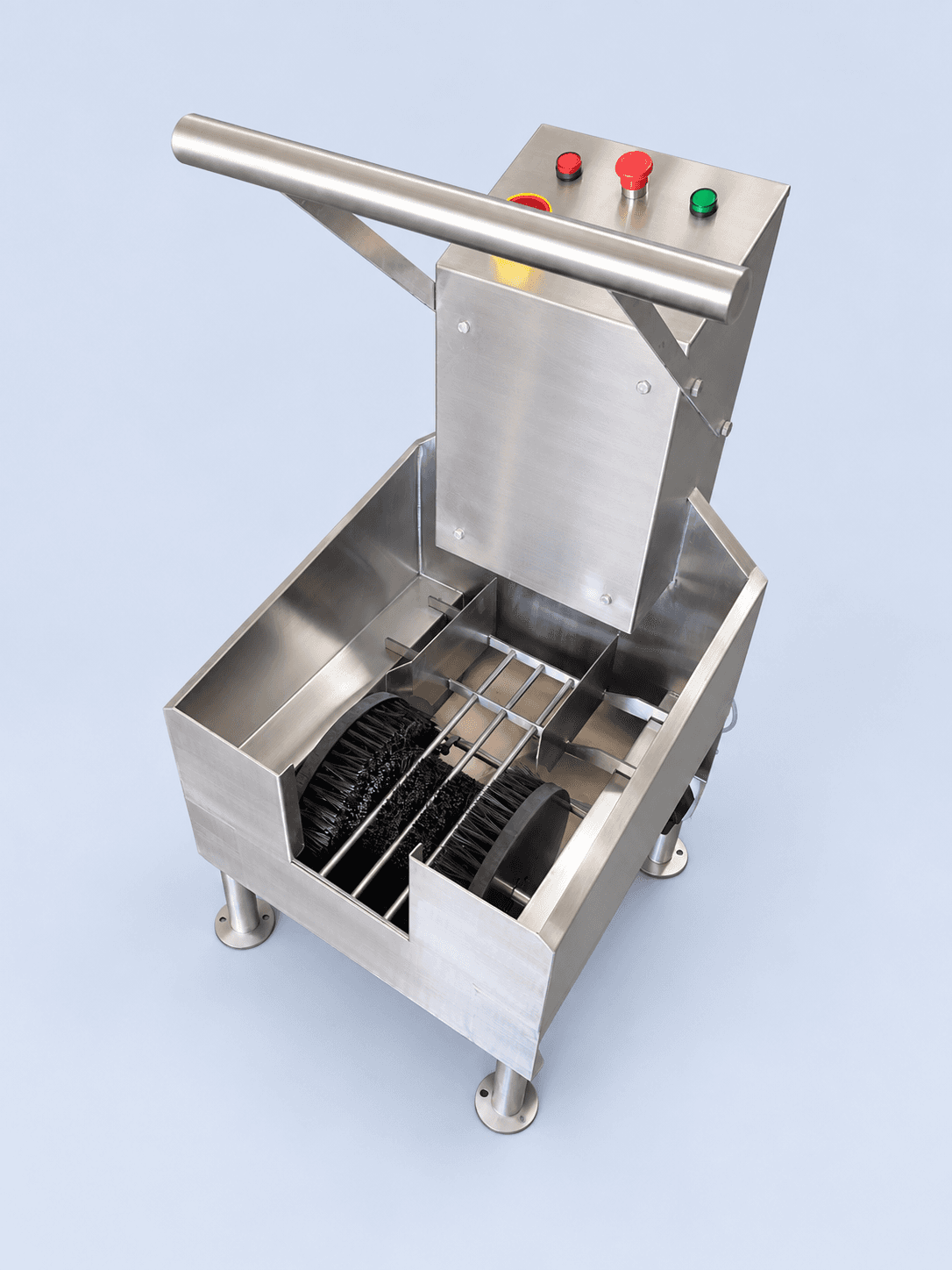

B65230 Single-Station Motorised Boot Scrubber
1 / 2 product images
A durable boot-cleaning station that helps staff remove dirt from soles and lower sides before entering production areas. Brushing, water and soap work together in one simple routine, with straightforward controls and adjustable soap dosing to suit your cleaning process.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
Price on request
1 of 1 option selected
Electrical supply: 380 V three-phase
B65230(R) is ready to quote.
Electrical supply
Selected model
B65230(R)
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
The B65230(R) is the 380V three-phase configuration of the B65230 motorised boot scrubber. It is used by one person at a time to clean one boot at a time, brushing the sole and lower sides. The Grade 304 stainless steel unit has robust, hard-wearing bristles and a protective grid.
Manual on/off controls start the 0.37kW brush motor, water spray and inline peristaltic soap dosing together. Water is controlled by a ½″ solenoid, and the peristaltic pump has an adjustable soap flow rate.
A built-in motor starter provides motor protection. The unit includes an isolator, emergency stop and pilot lights for power and unit-running status. The trough drains through a 1½″ BSP outlet at its bottom rear.
Specifications
Basterfield B65230(R). Boot Scrubber Stainless Steel Grade 304 380V Three-Phase 0.37kW with Manual On/Off Control, Sole and Lower Side Brushes, Protective Grid, ½″ Solenoid Water Control, Adjustable Peristaltic Soap Dosing and 1½″ BSP Drainage Outlet. One user and one boot at a time; built-in motor starter protection, isolator, emergency stop and power/running pilot lights. Drainage outlet at the bottom rear of the trough.
- Construction: Stainless Steel Grade 304
- Electrical configuration: 380V three-phase
- Motor rated output: 0.37kW
- Operation: manual on/off; brushes, water spray and soap dosing start together
- Capacity: one user at a time; one boot at a time
- Brushing: sole and lower sides; robust, hard-wearing bristles; protective grid
- Water control: ½″ solenoid; water sprays onto the brushes
- Soap dosing: inline peristaltic pump with adjustable flow rate
- Motor protection: built-in motor starter
- Controls: isolator, emergency stop and manual on/off controls
- Indicators: power and unit-running pilot lights
- Drainage: 1½″ BSP outlet at the bottom rear of the trough
Shortlist this configuration, add project notes and compare your options.
Product overview
The Basterfield B65230 is a single-station motorised boot scrubber manufactured in South Africa. Its Grade 304 stainless steel construction, robust bristles and protective grid support routine wet footwear cleaning. The unit is used by one person at a time, cleaning one boot at a time with brushes arranged for the sole and lower sides.
Operation is controlled manually with on/off controls. Switching the unit on starts the brushes rotating, opens the ½″ solenoid for water spray onto the brushes and starts inline soap dosing. A peristaltic soap dosing pump provides an adjustable soap flow rate.
A 0.37kW motor drives the brushes, with motor protection provided by a built-in motor starter. The control arrangement includes an isolator, emergency stop and pilot lights showing power and unit-running status. Choose the 220V single-phase or 380V three-phase configuration for the required electrical supply.
The wash trough has a 1½″ BSP drainage outlet at the bottom rear. Allow access to the water supply, drainage connection and electrical controls when positioning the station.
Use the B65230 at a dedicated footwear-cleaning point between changing and production areas. Suitable applications include wet boot-cleaning routines in food and beverage plants, meat and poultry processing, dairy facilities, seafood processing and fresh-produce packhouses. Plan for users to clean each boot in turn.
Select the electrical configuration and request a quotation with the installation location and available services.
Features & benefits
Sole and Lower Side Brushing
A single station cleans the sole and lower sides of one boot at a time. One user operates the machine at a time.
Hard-Wearing Bristles and Protective Grid
Robust bristles provide hard-wearing brushing, with a protective grid fitted over the brushing area.
Manual On/Off Operation
Switching the unit on starts brush rotation, activates water spray onto the brushes and starts inline soap dosing together.
Adjustable Peristaltic Soap Dosing
A peristaltic pump introduces soap into the water line. Its adjustable flow rate allows the soap feed to be set for the cleaning process.
½″ Solenoid Water Control
The ½″ solenoid provides automatic water control during operation, supplying spray to the brushes when the unit is switched on.
0.37kW Motor with Starter Protection
A 0.37kW motor drives the brushes. A built-in motor starter provides motor protection.
Isolator, Emergency Stop and Pilot Lights
An isolator and emergency stop are provided. Separate pilot lights indicate that power is available and that the unit is running.
1½″ BSP Rear Drainage Outlet
The trough drains through a 1½″ BSP outlet positioned at its bottom rear, providing a defined drainage connection.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
- Electrical supply
- Configurable
- 220 V single-phase
- 380 V three-phase
- Control Power Source
- Fixed
- Phase-to-Neutral
- Material
- Fixed
- Stainless Steel Grade 304
- Number of Stations / Spouts
- Fixed
- One
- Supply Configuration
- Fixed
- 3P+N+E
| Specification | Value | Configuration |
|---|---|---|
| Electrical supply |
| Configurable |
| Control Power Source |
| Fixed |
| Material |
| Fixed |
| Number of Stations / Spouts |
| Fixed |
| Supply Configuration |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||||||
|---|---|---|---|---|---|---|---|---|
| B65230-220 | Boot Scrubber Stainless Steel Grade 304 220V Single-Phase 0.37kW with Manual On/Off Control, Sole and Lower Side Brushes, Protective Grid, ½″ Solenoid Water Control, Adjustable Peristaltic Soap Dosing and 1½″ BSP Drainage Outlet Boot Scrubber Motorised 220V Single-Phase | - | 220 V single-phase | Stainless Steel Grade 304 | One | - | View specifications
| |
| B65230(R) | Boot Scrubber Stainless Steel Grade 304 380V Three-Phase 0.37kW with Manual On/Off Control, Sole and Lower Side Brushes, Protective Grid, ½″ Solenoid Water Control, Adjustable Peristaltic Soap Dosing and 1½″ BSP Drainage Outlet Boot Scrubber Motorised 380V Three-Phase | Phase-to-Neutral | 380 V three-phase | Stainless Steel Grade 304 | One | 3P+N+E | View specifications
|
