E55810(W) Countertop Drip Trays with 40 mm Waste Outlet

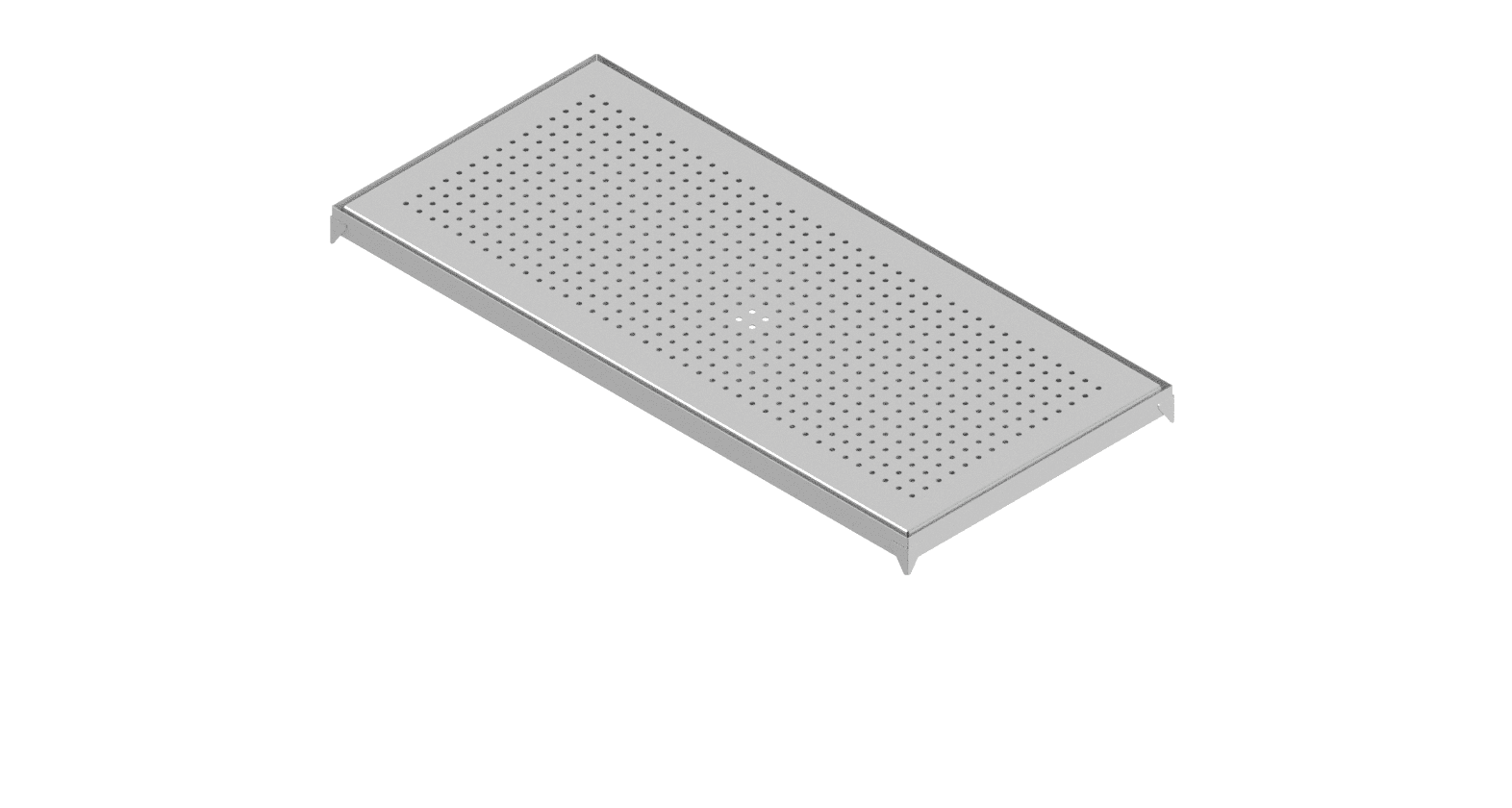

Image indicative of the range. Configurations may differ.
1 / 1 product images
Grade 304 stainless steel countertop drip trays with removable perforated inserts and centre outlets for 40 mm (1½″ BSP) waste fittings. Choose lengths of 300, 450 or 650 mm and widths of 200 or 300 mm for connection to pipework below the counter.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
Choose your specifications
Select Length, Width to complete your configuration.
Length
Width
Complete the options above to review your configuration and request a quote.
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield E55810(W) range is designed for countertop installations where a drip tray is fitted with a waste fitting and plumbed into pipework. Each tray is manufactured from Grade 304 stainless steel with a removable perforated insert and a centre outlet for a 40 mm (1½″ BSP) waste fitting.
Place the tray on the countertop and fit a suitable 40 mm (1½″ BSP) waste fitting. Provide a cut-out in the countertop beneath the centre waste outlet so the fitting can connect to the pipework below. Size the cut-out to suit the selected fitting and allow access below the counter for connection and servicing.
Choose a length of 300, 450 or 650 mm and a width of 200 or 300 mm. The six published configurations are 35 mm high. Check the available counter area and below-counter clearance when selecting a size.
For a tray with a side drainage spout, see the separate E55810(0350S) product.
Features & benefits
For Plumbed Countertop Installations
Centre waste outlet for fitting a waste and connecting to pipework below the counter.
40 mm Waste Connection
Outlet for a 40 mm (1½″ BSP) waste fitting.
Grade 304 Stainless Steel
Stainless steel collecting tray with a removable perforated insert.
Six Countertop Sizes
Lengths of 300, 450 and 650 mm; widths of 200 and 300 mm; published models are 35 mm high.
Installation & support
Technical information & documents
Product documents
Installation, specifications and warranty information.
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 300 mm
- 450 mm
- 650 mm
- Width
- Configurable
- 200 mm
- 300 mm
- Height
- Fixed
- 35 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Material
- Fixed
- Stainless Steel Grade 304
- Waste Connection
- Fixed
- 40 mm (1½″ BSP)
| Specification | Value | Configuration |
|---|---|---|
| Material |
| Fixed |
| Waste Connection |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||||||
|---|---|---|---|---|---|---|---|---|
| E55810(0650W) | Grade 304 Stainless Steel Countertop Drip Tray, 650 x 300 mm, 35 mm High, with Removable Perforated Insert and Centre Outlet for a 40 mm (1½″ BSP) Waste Fitting. Drip Tray 650 x 300 mm with 40 mm Waste | 35 mm | 650 mm | Stainless Steel Grade 304 | 40 mm (1½″ BSP) | 300 mm | View specifications
| |
| E55810(W-0300x0200) | Grade 304 Stainless Steel Countertop Drip Tray, 300 x 200 mm, 35 mm High, with Removable Perforated Insert and Centre Outlet for a 40 mm (1½″ BSP) Waste Fitting. Drip Tray 300 x 200 mm with 40 mm Waste | 35 mm | 300 mm | Stainless Steel Grade 304 | 40 mm (1½″ BSP) | 200 mm | View specifications
| |
| E55810(W-0300x0300) | Grade 304 Stainless Steel Countertop Drip Tray, 300 x 300 mm, 35 mm High, with Removable Perforated Insert and Centre Outlet for a 40 mm (1½″ BSP) Waste Fitting. Drip Tray 300 x 300 mm with 40 mm Waste | 35 mm | 300 mm | Stainless Steel Grade 304 | 40 mm (1½″ BSP) | 300 mm | View specifications
| |
| E55810(W-0450x0200) | Grade 304 Stainless Steel Countertop Drip Tray, 450 x 200 mm, 35 mm High, with Removable Perforated Insert and Centre Outlet for a 40 mm (1½″ BSP) Waste Fitting. Drip Tray 450 x 200 mm with 40 mm Waste | 35 mm | 450 mm | Stainless Steel Grade 304 | 40 mm (1½″ BSP) | 200 mm | View specifications
| |
| E55810(W-0450x0300) | Grade 304 Stainless Steel Countertop Drip Tray, 450 x 300 mm, 35 mm High, with Removable Perforated Insert and Centre Outlet for a 40 mm (1½″ BSP) Waste Fitting. Drip Tray 450 x 300 mm with 40 mm Waste | 35 mm | 450 mm | Stainless Steel Grade 304 | 40 mm (1½″ BSP) | 300 mm | View specifications
| |
| E55810(W-0650x0200) | Grade 304 Stainless Steel Countertop Drip Tray, 650 x 200 mm, 35 mm High, with Removable Perforated Insert and Centre Outlet for a 40 mm (1½″ BSP) Waste Fitting. Drip Tray 650 x 200 mm with 40 mm Waste | 35 mm | 650 mm | Stainless Steel Grade 304 | 40 mm (1½″ BSP) | 200 mm | View specifications
|
