E55810(W) Countertop Drip Trays With 40 mm Waste Outlet
1 / 2 product images
Grade 304 stainless steel countertop drip trays with removable perforated inserts and centre outlets for 40 mm (1½″ BSP) waste fittings. Choose lengths of 300, 450 or 650 mm and widths of 200 or 300 mm for connection to pipework below the counter.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
2 of 2 options selected
E55810(0650W) is ready to quote.
Length
Width
Selected model
E55810(0650W)
- Length
- 650 mm
- Width
- 300 mm
- Height
- 35 mm
- Material
- Stainless Steel Grade 304
- Waste Connection
- 40 mm (1½″ BSP)
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview

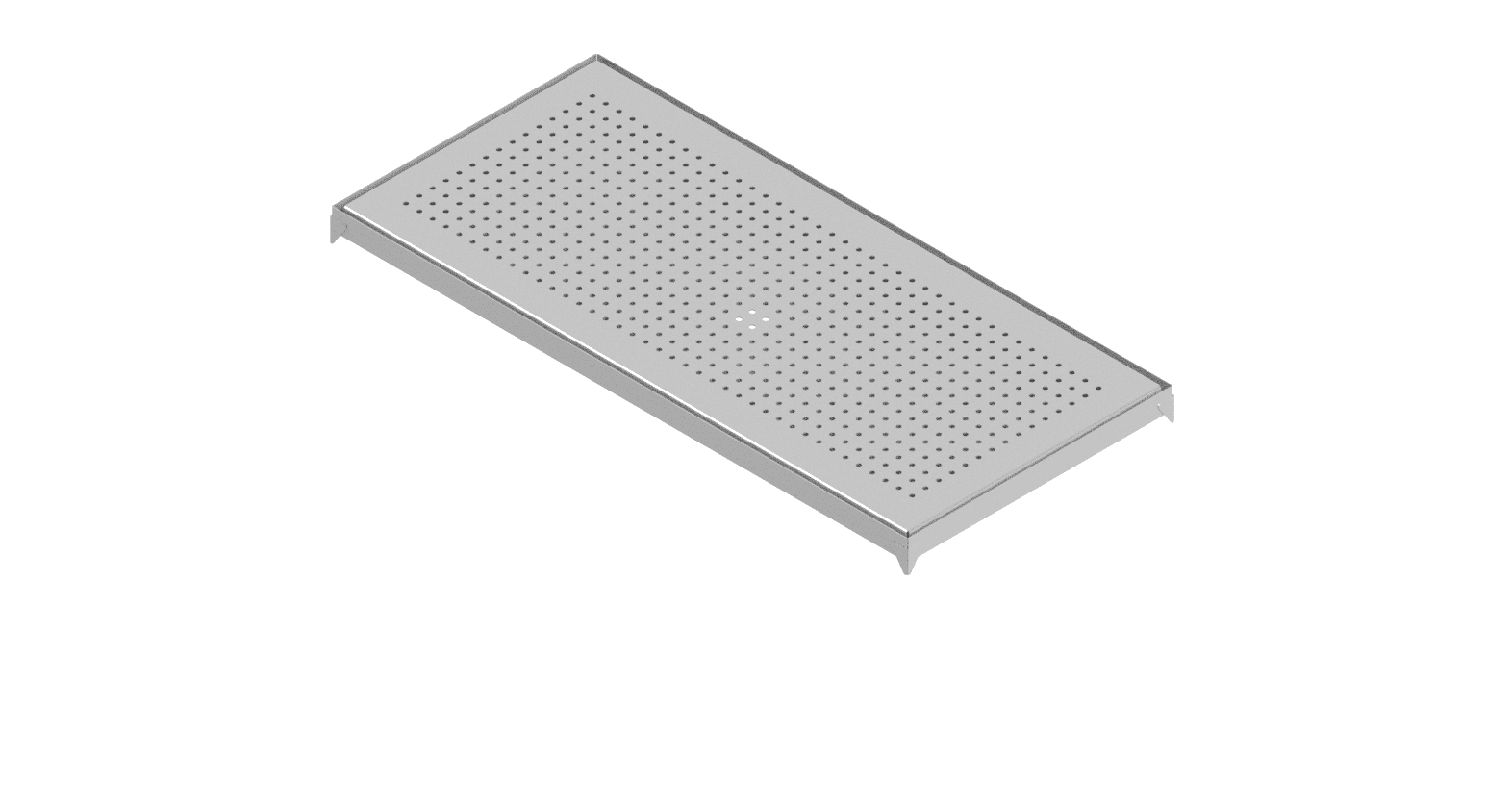

The Basterfield E55810(0650W) is a 650 mm long x 300 mm wide Grade 304 stainless steel countertop drip tray, 35 mm high. A removable perforated insert sits above the collecting tray.
Place the tray on the countertop and fit a suitable 40 mm (1½″ BSP) waste fitting. Provide a cut-out in the countertop beneath the centre waste outlet so the fitting can connect to the pipework below. Size the cut-out to suit the selected fitting and allow access below the counter for connection and servicing.
This model is supported on stainless steel feet.
Specifications
Basterfield E55810(0650W). Grade 304 stainless steel countertop drip tray, 650 x 300 mm, 35 mm high, with removable perforated insert and centre outlet for a 40 mm (1½″ BSP) waste fitting. Provide a cut-out below the waste outlet to suit the selected waste fitting and connection to pipework.
- Model: E55810(0650W)
- Length: 650 mm
- Width: 300 mm
- Overall height: 35 mm
- Material: Grade 304 stainless steel
- Insert: Perforated and removable
- Waste connection: 40 mm (1½″ BSP)
- Outlet position: Centre, beneath the tray
- Installation: On countertop, with cut-out for waste fitting and pipework below
- Support: Stainless steel feet
Product overview
The Basterfield E55810(W) range is designed for countertop installations where a drip tray is fitted with a waste fitting and plumbed into pipework. Each tray is manufactured from Grade 304 stainless steel with a removable perforated insert and a centre outlet for a 40 mm (1½″ BSP) waste fitting.
Place the tray on the countertop and fit a suitable 40 mm (1½″ BSP) waste fitting. Provide a cut-out in the countertop beneath the centre waste outlet so the fitting can connect to the pipework below. Size the cut-out to suit the selected fitting and allow access below the counter for connection and servicing.
Choose a length of 300, 450 or 650 mm and a width of 200 or 300 mm. The six published configurations are 35 mm high. Check the available counter area and below-counter clearance when selecting a size.
