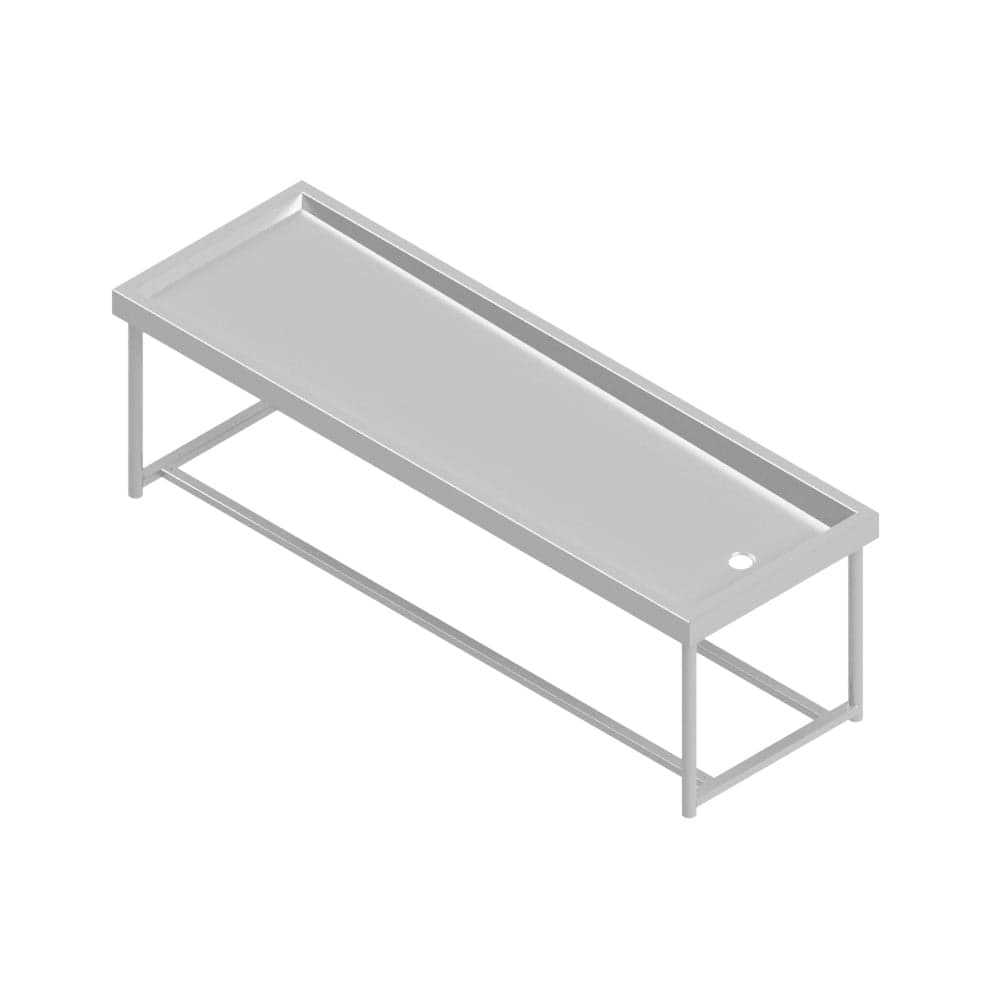

H72440 Stainless Steel Post Mortem Table
Image indicative of the range. Configurations may differ.
1 / 2 product images
Stainless steel post-mortem table measuring 1980 × 765 × 900 mm, with a 30 mm recessed slab, drainage fall and pre-punched Ø40 mm waste opening. Choose 1.2 mm or 1.5 mm thickness in Grade 304, or select Grade 316 under advanced configurations.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Price on request
2 of 2 options selected
H72440(315-1980) is ready to quote.
Material Thickness
Advanced Material
Selected model
H72440(315-1980)
Your configuration
Price on request
- Material
- Stainless Steel Grade 316
- Material Thickness
- 1.5 mm
- Length
- 1980 mm
- Height
- 900 mm
- Adjustable Feet
- Yes
- Construction
- All Welded
- Drainage
- Drainage Fall
- Drainage Hole Diameter
- 40 mm
- Finish
- Brushed
- Framework Material
- Stainless Steel
- Framework Profile
- Tubular
- Mounting Type
- Free Standing
- Recessed Slab Depth
- 30 mm
- Slab Edge
- Tapered
- Slab Underbracing
- Yes
- Waste Outlet Hole
- Pre-Punched
- Width
- 765 mm
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
The H72440(315-1980) post-mortem table uses Grade 316 stainless steel with a 1.5 mm material thickness. Overall dimensions: 1980 mm (L) × 765 mm (W) × 900 mm (H). 30 mm recessed slab with drainage fall and pre-punched Ø40 mm waste opening. Tapered slab edge and reinforced underbracing. All welded construction, stainless steel tubular frame and adjustable feet. Brushed finish.
Specifications
Basterfield H72440(315-1980) post-mortem table. Grade 316 stainless steel, 1.5 mm material thickness. Overall dimensions: 1980 mm (L) × 765 mm (W) × 900 mm (H). 30 mm recessed slab with drainage fall and pre-punched Ø40 mm waste opening. Tapered slab edge and reinforced underbracing. All welded construction, stainless steel tubular frame and adjustable feet. Brushed finish.
- Model: H72440(315-1980)
- Material: Stainless Steel Grade 316
- Material thickness: 1.5 mm
- Overall dimensions: 1980 mm (L) × 765 mm (W) × 900 mm (H)
- Recessed slab depth: 30 mm
- Drainage: Fall to a pre-punched Ø40 mm waste opening
- Slab: Tapered edge and reinforced underbracing
- Construction: All welded
- Frame: Stainless steel tubular frame
- Feet: Adjustable for levelling
- Finish: Brushed polish
Shortlist this product, add project notes and compare your options.
Product overview
The Basterfield H72440 is a freestanding stainless steel post-mortem table for examination and body preparation in hospital mortuaries and pathology and mortuary service facilities. Overall dimensions are 1980 mm long × 765 mm wide × 900 mm high.
Grade 304 stainless steel is available in 1.2 mm and 1.5 mm material thicknesses. Grade 316 is available in both thicknesses under advanced configurations.
The slab has a 30 mm deep recess with a fall towards a pre-punched Ø40 mm waste opening. The edge tapers towards the recess, and underbracing reinforces the slab.
All welded construction and a stainless steel tubular supporting frame form the table structure. Adjustable foot pieces allow the table to be levelled during installation. Visible stainless steel surfaces have a brushed polish.
Features & benefits
304 and 316 Stainless Steel
Choose Grade 304 as standard or Grade 316 under advanced configurations.
Two Material Thicknesses
Both stainless steel grades are available in 1.2 mm and 1.5 mm thicknesses.
1980 × 765 × 900 mm Overall Size
All four configurations share the same overall table dimensions.
Recessed Slab with Drainage Fall
A 30 mm deep recess falls towards a pre-punched Ø40 mm waste opening.
Reinforced Slab and Tapered Edge
Underbracing reinforces the slab, with the top edge tapering towards the recess.
Tubular Frame and Adjustable Feet
All welded construction with a stainless steel tubular frame and adjustable foot pieces for levelling.
Brushed Finish
Visible stainless steel surfaces have a brushed polish.
Installation & support
Technical information & documents
Product documents
Specification sheets, warranty information and technical media.
Product specification sheet
Dimensions, materials and product data for H72440.
PDFProduct warranty
12-month warranty and claims information for H72440.
PDFDrawings, manuals & certificates
Tell us if you need an installation manual, CAD file, drawing or compliance certificate.
Product data
Specifications & models
Specifications
Overall size envelope
- Length
- Fixed
- 1980 mm
- Height
- Fixed
- 900 mm
- Width
- Fixed
- 765 mm
- Material
- Configurable
- Stainless Steel Grade 304
- Stainless Steel Grade 316
- Material Thickness
- Configurable
- 1.2 mm
- 1.5 mm
- Adjustable Feet
- Fixed
- Yes
- Construction
- Fixed
- All Welded
- Drainage
- Fixed
- Drainage Fall
- Drainage Hole Diameter
- Fixed
- 40 mm
- Finish
- Fixed
- Brushed
- Framework Material
- Fixed
- Stainless Steel
- Framework Profile
- Fixed
- Tubular
- Mounting Type
- Fixed
- Free Standing
- Recessed Slab Depth
- Fixed
- 30 mm
- Slab Edge
- Fixed
- Tapered
- Slab Underbracing
- Fixed
- Yes
- Waste Outlet Hole
- Fixed
- Pre-Punched
| Specification | Value | Configuration |
|---|---|---|
| Material |
| Configurable |
| Material Thickness |
| Configurable |
| Adjustable Feet |
| Fixed |
| Construction |
| Fixed |
| Drainage |
| Fixed |
| Drainage Hole Diameter |
| Fixed |
| Finish |
| Fixed |
| Framework Material |
| Fixed |
| Framework Profile |
| Fixed |
| Mounting Type |
| Fixed |
| Recessed Slab Depth |
| Fixed |
| Slab Edge |
| Fixed |
| Slab Underbracing |
| Fixed |
| Waste Outlet Hole |
| Fixed |
Available models & compare variants
Compare 4 product variants
Filter the table and compare product codes, dimensions, attributes, and published pricing.
| Price & actions | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H72440(112-1980) | Post Mortem Table Stainless Steel Grade 304 1.2mm Thick 1980mm (L) × 765mm (W) × 900mm (H) with 30mm Recessed Slab, Drainage Fall, Pre-Punched Ø40mm Waste Outlet, Tapered Slab Edge, Reinforced Underbracing, All Welded Construction, Stainless Steel Tubular Frame, Adjustable Feet and Brushed Finish Post Mortem Table Stainless Steel Grade 304 1.2mm | 900 mm | Yes | All Welded | Drainage Fall | 40 mm | Brushed | Stainless Steel | Tubular | 1980 mm | Stainless Steel Grade 304 | 1.2 mm | Free Standing | 30 mm | Tapered | Yes | Pre-Punched | 765 mm | View specifications
| |
| H72440(115-1980) | Post Mortem Table Stainless Steel Grade 304 1.5mm Thick 1980mm (L) × 765mm (W) × 900mm (H) with 30mm Recessed Slab, Drainage Fall, Pre-Punched Ø40mm Waste Outlet, Tapered Slab Edge, Reinforced Underbracing, All Welded Construction, Stainless Steel Tubular Frame, Adjustable Feet and Brushed Finish Post Mortem Table Stainless Steel Grade 304 1.5mm | 900 mm | Yes | All Welded | Drainage Fall | 40 mm | Brushed | Stainless Steel | Tubular | 1980 mm | Stainless Steel Grade 304 | 1.5 mm | Free Standing | 30 mm | Tapered | Yes | Pre-Punched | 765 mm | View specifications
| |
| H72440(312-1980) | Post Mortem Table Stainless Steel Grade 316 1.2mm Thick 1980mm (L) × 765mm (W) × 900mm (H) with 30mm Recessed Slab, Drainage Fall, Pre-Punched Ø40mm Waste Outlet, Tapered Slab Edge, Reinforced Underbracing, All Welded Construction, Stainless Steel Tubular Frame, Adjustable Feet and Brushed Finish Post Mortem Table Stainless Steel Grade 316 1.2mm | 900 mm | Yes | All Welded | Drainage Fall | 40 mm | Brushed | Stainless Steel | Tubular | 1980 mm | Stainless Steel Grade 316 | 1.2 mm | Free Standing | 30 mm | Tapered | Yes | Pre-Punched | 765 mm | View specifications
| |
| H72440(315-1980) | Post Mortem Table Stainless Steel Grade 316 1.5mm Thick 1980mm (L) × 765mm (W) × 900mm (H) with 30mm Recessed Slab, Drainage Fall, Pre-Punched Ø40mm Waste Outlet, Tapered Slab Edge, Reinforced Underbracing, All Welded Construction, Stainless Steel Tubular Frame, Adjustable Feet and Brushed Finish Post Mortem Table Stainless Steel Grade 316 1.5mm | 900 mm | Yes | All Welded | Drainage Fall | 40 mm | Brushed | Stainless Steel | Tubular | 1980 mm | Stainless Steel Grade 316 | 1.5 mm | Free Standing | 30 mm | Tapered | Yes | Pre-Punched | 765 mm | View specifications
|
