ProductMeat and Carcass Trolleys
M30840(200) Stainless Steel Meat Trolley

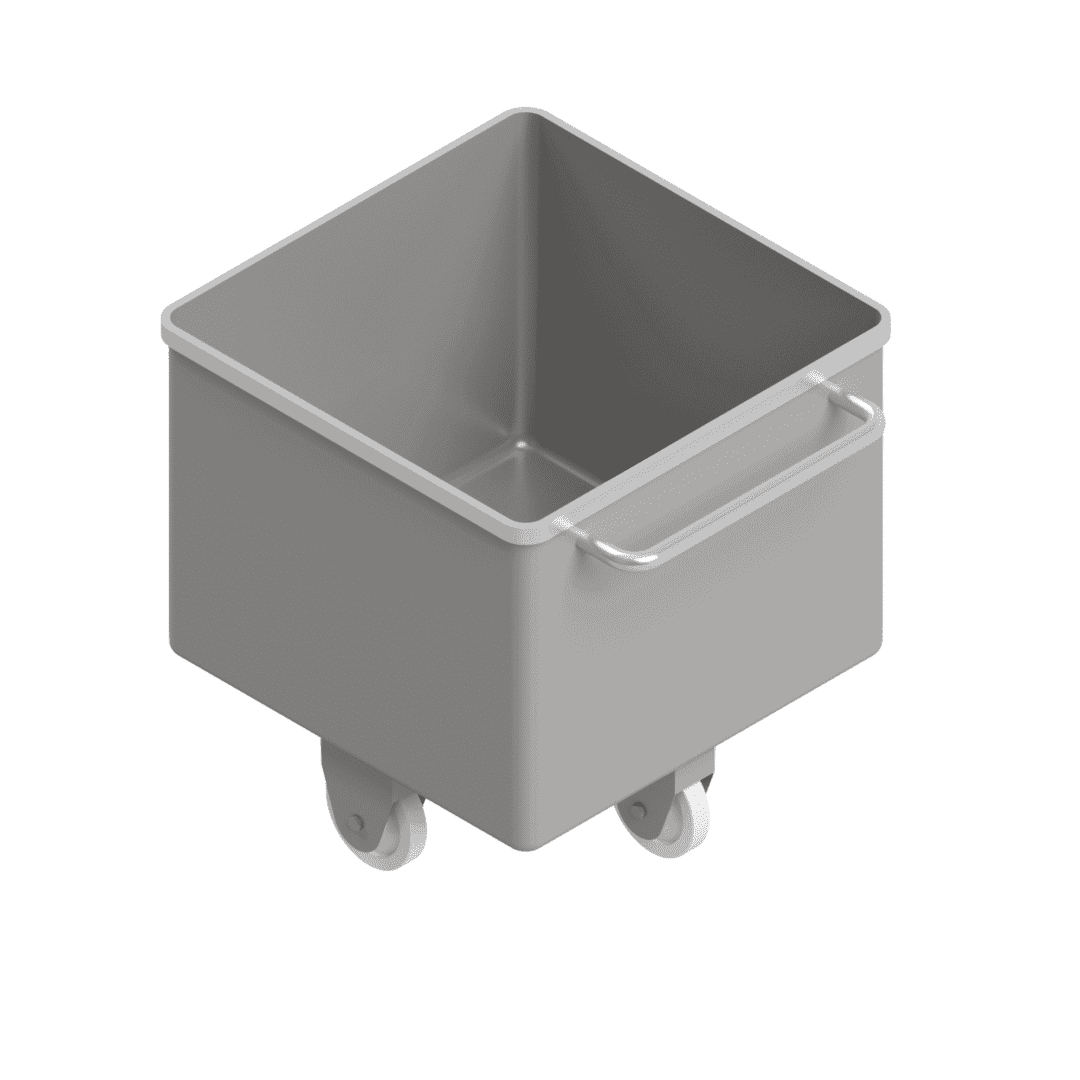

Image indicative of the range. Configurations may differ.
1 / 6 product images
200 L Grade 304 stainless steel meat trolley with radiused internal corners, fixed push handle and 150 mm castors in a diamond formation.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Price on request
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Share this model with a colleague or reopen its specifications later.
Shortlist this configuration, add project notes and compare your options.
Product overview
200 L Grade 304 stainless steel meat trolley for transporting product in abattoirs, butcheries and processing areas.
The container measures 660 mm long x 660 mm wide x 505 mm high. Overall dimensions, including the castors and fixed push handle, are 753 mm long x 660 mm wide x 685 mm high. Use the overall dimensions when checking access and clearance.

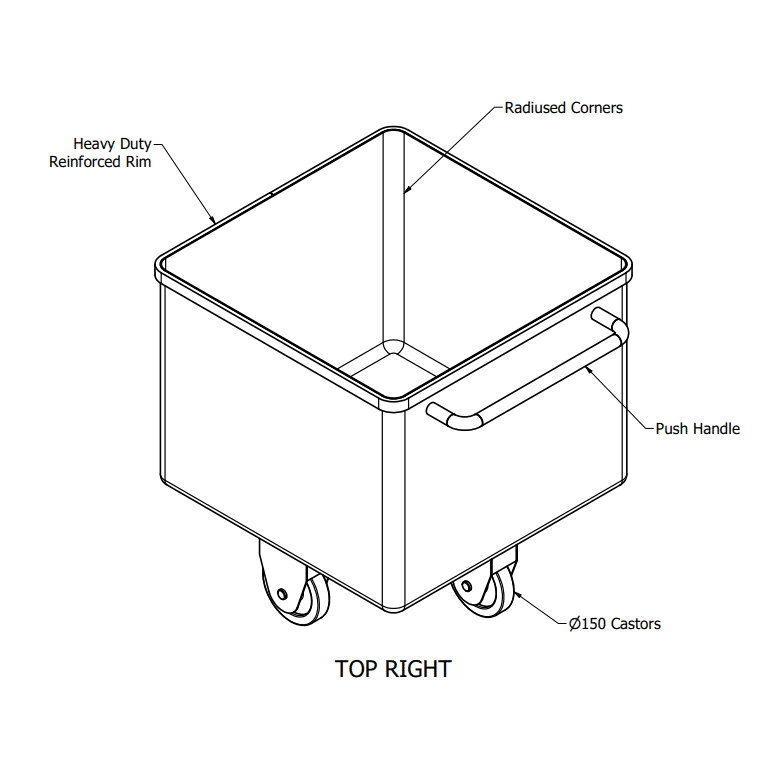

The container has a reinforced rim and radiused internal corners for access during cleaning. The trolley is fitted with a fixed stainless steel push handle and 20 mm round-bar stainless steel axles.
The 150 mm diameter castors are arranged in a diamond formation, with the centre castors set lower to provide a central pivot for turning.
Features & benefits
200 L Container
Grade 304 stainless steel container with a reinforced rim and radiused internal corners.
Separate Clearance Dimensions
Container: 660 x 660 x 505 mm. Overall, including handle and castors: 753 x 660 x 685 mm (L x W x H).
Diamond Castor Arrangement
150 mm diameter castors with lower-set centre castors provide a central turning pivot.
Product data
Specifications & models
Specifications
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct FAQ
