M30890(1800x750x1900) Stainless Steel Carcass Trolley
Image indicative of the range. Configurations may differ.
1 / 5 product images
Grade 304 stainless steel carcass trolley, 1800mm x 750mm x 1900mm, with easy-clean fully welded construction, six Ø150mm industrial white polymer wheels, offset centre wheels, push handles and a heavy-duty drip tray.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
R22,354.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Choose the quantity you need and add this item to your quote. We will confirm final pricing and delivery.
Shortlist this configuration, add project notes and compare your options.
Product overview
The Basterfield M30890 carcass trolley is made from Grade 304 stainless steel for moving carcasses in meat processing areas. The uprights and base use 40mm x 40mm square tube. The hanging cross member uses Ø38.1mm round tube with a 1.5mm wall thickness. Overall dimensions are 1800mm (L) x 750mm (W) x 1900mm (H).
Fully welded construction without crevices makes the unit easy to clean and reduces places where residue can collect. The heavy-duty drip tray is made from 1.5mm Grade 304 stainless steel and collects runoff during handling.
Six industrial castor wheels with white polymer wheels, each 150mm in diameter, support the trolley. The offset centre wheels allow the trolley to be shifted onto the centre pair and pivoted for easy changes of direction, including one-hand rotation. Convenient push handles assist with moving and positioning the trolley. The unit weighs 68kg.
Features & benefits
Grade 304 Stainless Steel
The uprights and base use 40mm x 40mm square tube. The hanging cross member uses Ø38.1mm round tube with a 1.5mm wall thickness.
Easy-Clean Welded Construction
Fully welded construction without crevices makes the trolley easy to clean and reduces places where residue can collect.
Six Industrial Wheels
Six Ø150mm industrial castor wheels with white polymer wheels support the trolley during movement.
Offset Centre Wheels
Shift the trolley onto its offset centre pair to pivot and change direction easily, including one-hand rotation.
Heavy-Duty Drip Tray
The included 1.5mm Grade 304 stainless steel drip tray collects runoff during carcass handling.
Convenient Push Handles
Push handles assist with moving and positioning the trolley.
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF downloadProduct warranty
12-month warranty and claims information.
PDF download
Technical media
- View file

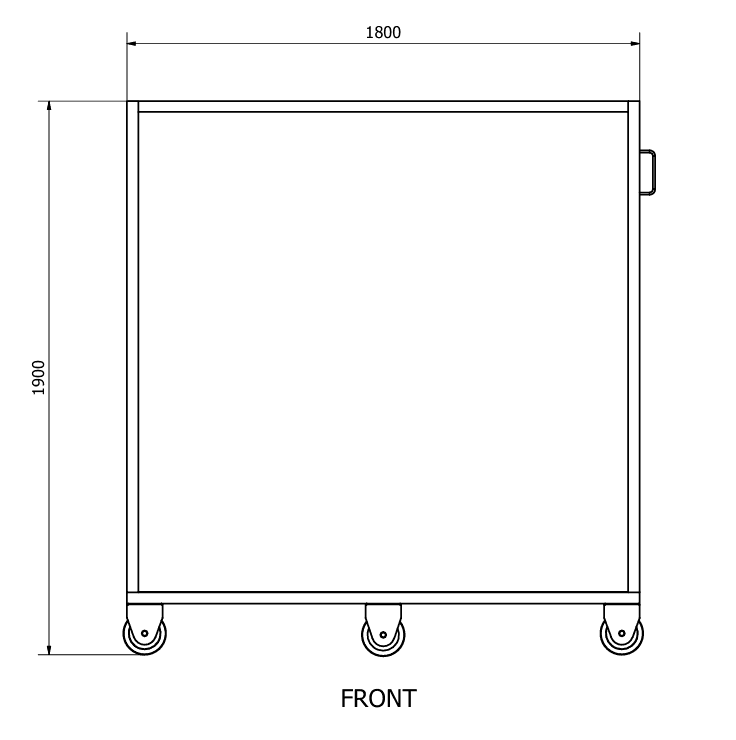

Front elevation — 1800mm length and 1900mm overall height
Image · Technical media
- View file

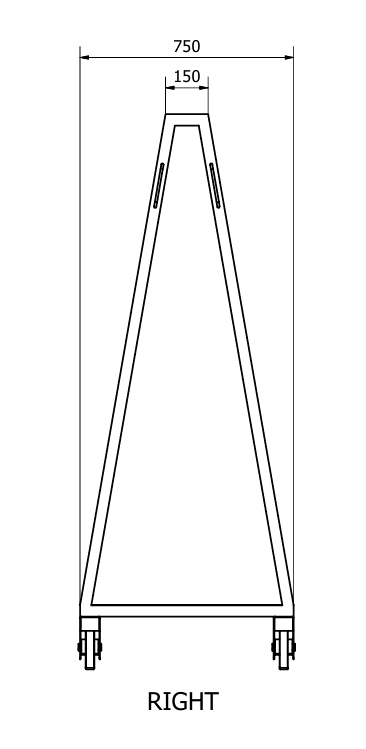

Right elevation — 750mm overall width
Image · Technical media
- View file

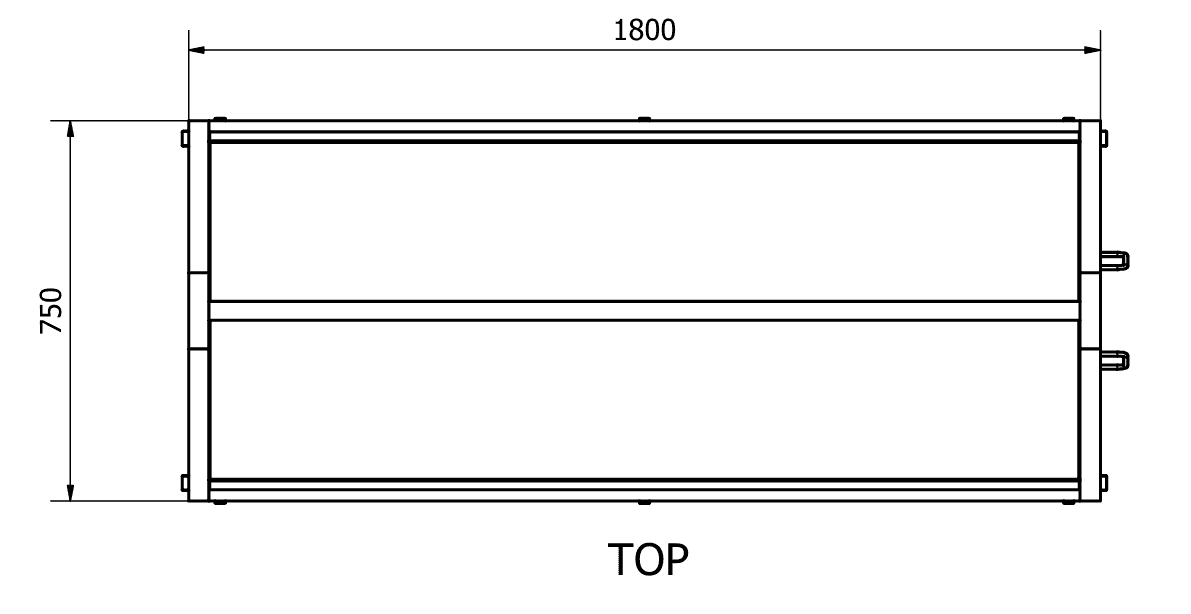

Top view — 1800mm x 750mm
Image · Technical media
- View file

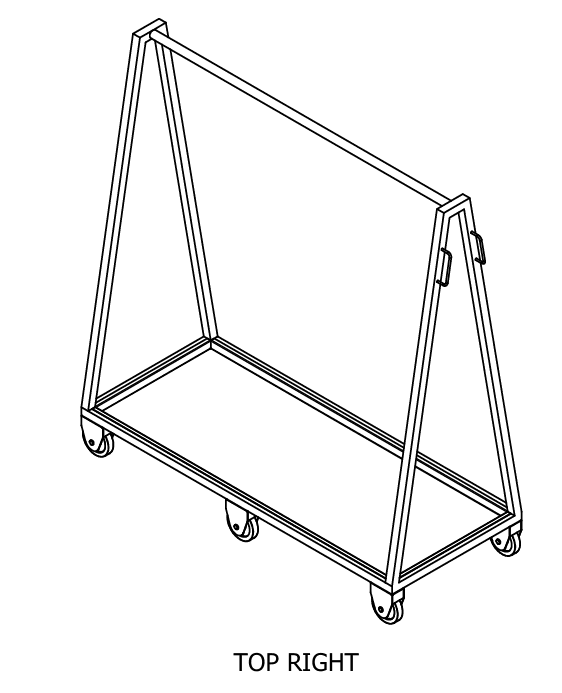

Isometric view — frame, hanging cross member, drip tray and push handles
Image · Technical media
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Height
- Fixed
- 1900 mm
- Length
- Fixed
- 1800 mm
- Width
- Fixed
- 750 mm
- Castor Diameter (mm)
- Fixed
- 150 mm
- Castor Type
- Fixed
- Industrial
- Construction
- Fixed
- Fully Welded Without Crevices
- Cross Member Diameter
- Fixed
- 38.1 mm
- Cross Member Wall Thickness
- Fixed
- 1.5 mm
- Drip Tray
- Fixed
- Included
- Drip Tray Material
- Fixed
- Stainless Steel Grade 304
- Drip Tray Thickness
- Fixed
- 1.5 mm
- Framework Profile
- Fixed
- 40mm x 40mm Square Tube Uprights and Base
- Handle Type
- Fixed
- Push Handles
- Material
- Fixed
- Stainless Steel Grade 304
- Number of Castors
- Fixed
- 6
- Weight
- Fixed
- 68 kg
- Wheel Arrangement
- Fixed
- Offset Centre Pair for Pivoting and One-Hand Rotation
- Wheel Material
- Fixed
- White Polymer
| Specification | Value | Configuration |
|---|---|---|
| Castor Diameter (mm) |
| Fixed |
| Castor Type |
| Fixed |
| Construction |
| Fixed |
| Cross Member Diameter |
| Fixed |
| Cross Member Wall Thickness |
| Fixed |
| Drip Tray |
| Fixed |
| Drip Tray Material |
| Fixed |
| Drip Tray Thickness |
| Fixed |
| Framework Profile |
| Fixed |
| Handle Type |
| Fixed |
| Material |
| Fixed |
| Number of Castors |
| Fixed |
| Weight |
| Fixed |
| Wheel Arrangement |
| Fixed |
| Wheel Material |
| Fixed |
