B17740 Wall Mounted Trough Urinal with Automatic Flushing System

Durable and hygienic stainless steel trough urinal with hands-free flushing via an automatic tipping tray. Ideal for schools, stadiums, public restrooms, and other high-use facilities.

From: R5,182.00 Excl. VAT

Add to quote

Lead Time:

± 10-15 working days

This product is manufactured to order. If you have any questions about the lead time for a specific configuration or quantity, please don't hesitate to contact our team. We're happy to help!

Country of Origin: Manufactured in Johannesburg, South Africa

The B17740 Wall Mounted Trough Urinal is a robust, hygienic, and low-maintenance solution purpose-built for high-traffic washroom environments such as schools, public ablution facilities, and commercial premises.

Manufactured from high-grade 1.2mm thick Grade 304 Stainless Steel, the B17740 delivers excellent resistance to corrosion, vandalism, and impact damage, while ensuring a smooth, non-porous surface that promotes easy cleaning and maximum hygiene.

The wall-mounted design eliminates the need for floor support and simplifies cleaning beneath the unit. Pre-drilled fixing holes allow for fast, cost-effective installation. Integrated stainless steel end panels allow the unit to be flush-mounted between walls or used as a standalone fixture.

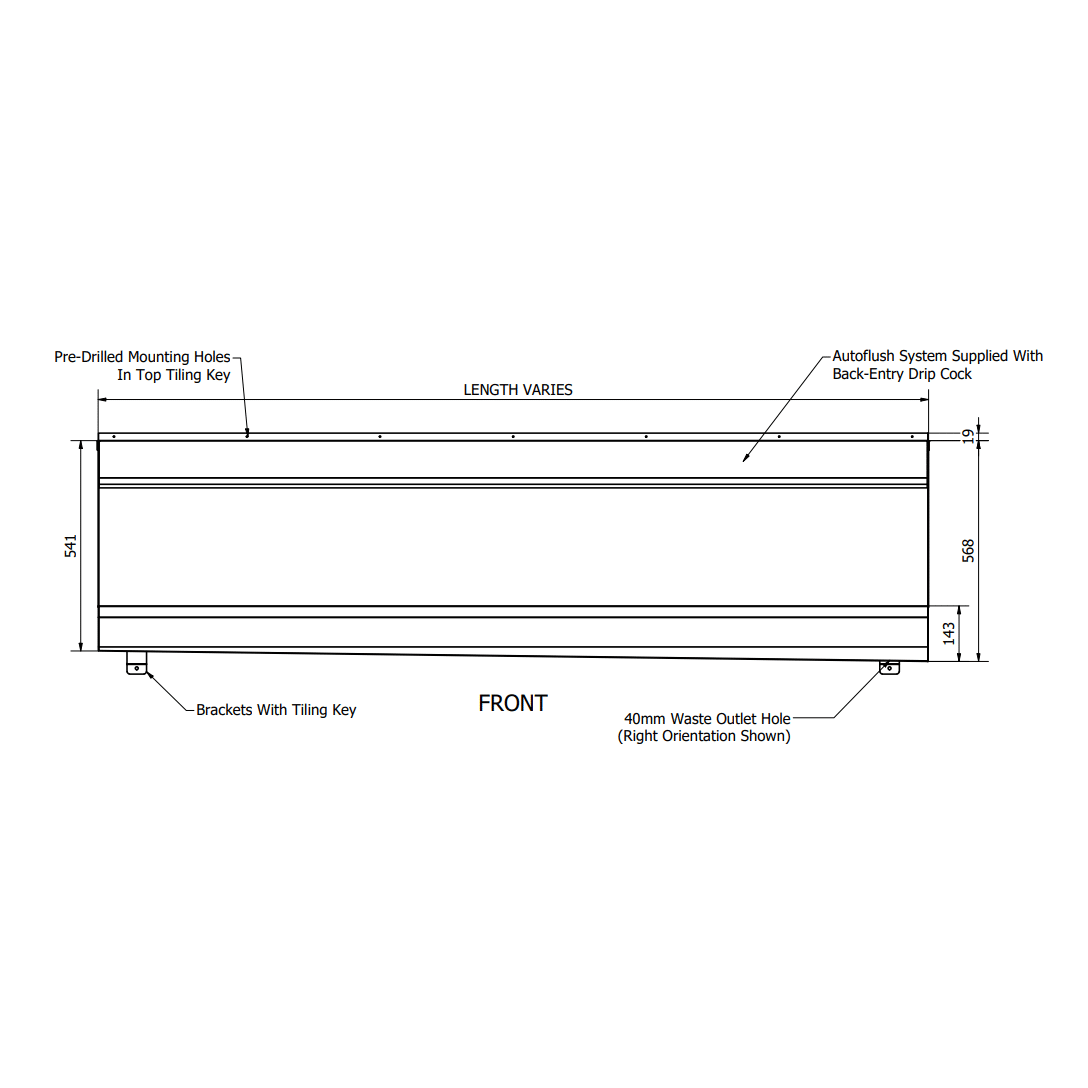

A back-entry automatic flushing system ensures hands-free operation, reducing maintenance and water misuse. The system features a tipping tray mechanism filled via an adjustable drip cock. Once full, the tray tips automatically, releasing water evenly across the urinal for a consistent and hygienic flush cycle.

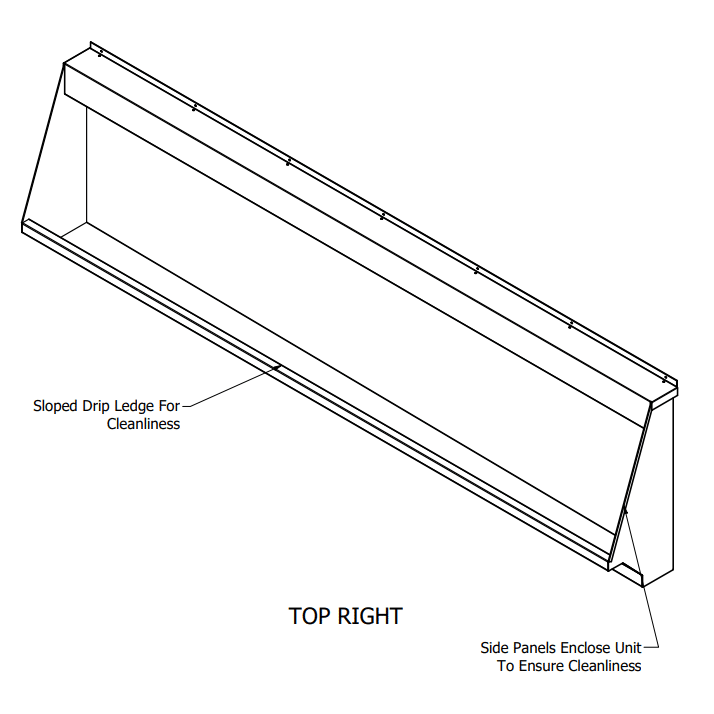

The ergonomic design includes a sloped drip ledge and extended trough projection to minimize splashback and improve user comfort. A sound-deadened back panel reduces noise from use and flushing, ensuring a quieter environment.

Available in a range of lengths to suit various installations, the B17740 includes a 40mm waste outlet positioned left or right as required. The dull polished stainless steel finish is both durable and professional, offering superior performance and longevity compared to ceramic alternatives.

Specifications

  • Model: B17740

  • Material: Grade 304 Stainless Steel, 1.2mm thick

  • Finish: Dull polished (satin) finish

  • Installation: Wall-mounted with pre-drilled fixing holes

  • Flushing System: Automatic tipping tray with adjustable drip cock (back-entry)

  • Water Connection: Back-entry inlet

  • Waste Outlet: 40mm diameter, left- or right-hand position

  • Design Features:

    • Sloped drip ledge to reduce splashback

    • Wide ergonomic projection

    • Sound-deadened back panel for noise reduction

    • Integrated end panels for flush wall or standalone installation

  • Available Lengths: Customizable to site requirements

  • Use Case: Suitable for schools, commercial, institutional and public restrooms

  • Maintenance: Easy-to-clean, low-maintenance design

Short Form Specification

Urinal shall be Basterfield B17740 Wall Mounted Trough Urinal, manufactured from 1.2mm Grade 304 Stainless Steel with a dull polished finish. Unit shall feature wall-mounted installation with pre-drilled fixing holes, back-entry automatic tipping-tray flush system with adjustable drip cock, sloped drip ledge, sound-deadened back panel, and 40mm waste outlet (left- or right-hand position). Supplied complete with integrated end panels. Length to be specified.

Locally Manufactured

Proudly manufactured in South Africa

Quick Production

Typical lead times of 10 - 15 working days

Product Customisations

Custom product specifications available
