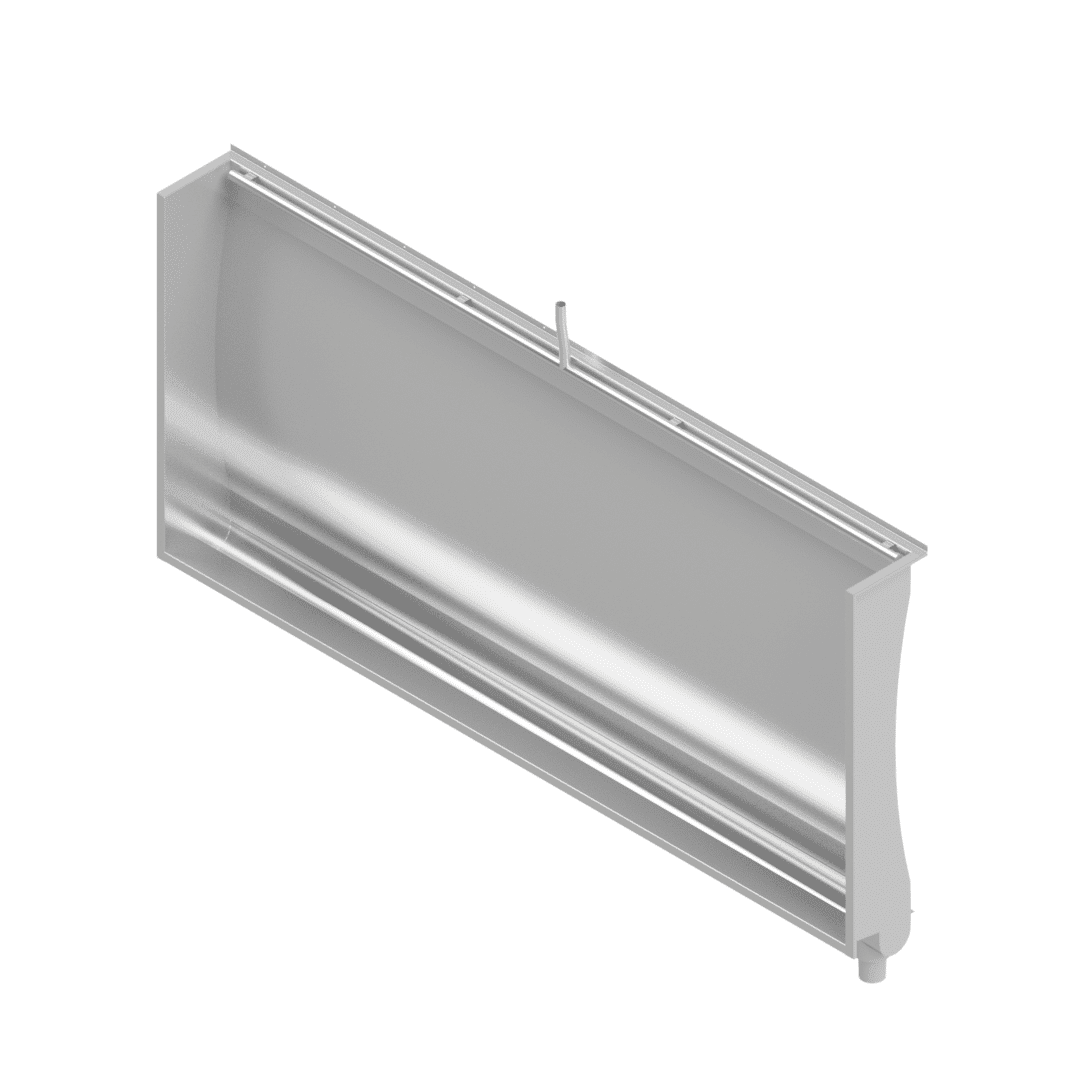

B17710 Stainless Steel Curved Back Urinal
1 / 6 product images
Grade 304 stainless steel curved-back trough urinal for flush-valve operation, with a concealed sparge pipe and selectable length and waste outlet position. B17720 is the alternative with built-in mechanical auto-flush.
Typical lead time
Current estimate: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
R12,536.00 (excl. VAT)
Ex works · Delivery charges excluded
Indicative pricing · final price confirmed in your quote
Prices shown are indicative and based on the latest available information. They may change with prevailing material costs, order quantities, specifications, and other requirements. Final pricing is confirmed in a formal quotation.
Length: 2440 mm · Waste Outlet Orientation: Left Hand
B17710(2440L) is ready to quote.
Length
Waste Outlet Orientation
Selected model
B17710(2440L)
Final pricing and delivery are confirmed in your quotation.
Talk to salesModel details
Overview
The Basterfield B17710 is the flush-valve version of the stainless steel curved-back trough urinal. Water is supplied through a flush valve to the concealed sparge pipe, which distributes flushing water across the urinal. The chosen flush valve and control arrangement determine how a flush is initiated.
B17710 does not incorporate the drip-fed tipping tray fitted to B17720. For built-in mechanical automatic flushing, choose B17720: its tipping tray slowly fills through a drip cock, periodically tips over to release the collected water and flush the urinal, then returns to fill again. B17720 uses this mechanical filling cycle rather than infrared detection or electronic control.
B17710 has welded Grade 304 stainless steel construction, a satin finish, a curved back, a sloped drip ledge and a sound-deadened back panel. A concealed sparge pipe is supplied from the top inlet. Select the required length and a centre, left-hand or right-hand 70 mm waste outlet to suit the plumbing layout. Confirm the flush valve, inlet connection and end details when specifying the installation.
Selected configuration: Length: 2440 mm; Waste Outlet Orientation: Left Hand.
Specifications
Basterfield B17710(2440L) curved-back trough urinal, flush-valve type; welded Grade 304 stainless steel with satin finish; concealed sparge pipe and top water inlet; sound-deadened back panel; 70 mm waste outlet in the selected centre, left-hand or right-hand position; length as selected. Flushing actuation is determined by the specified flush valve and control arrangement. No integral drip-fed tipping tray; specify B17720 for built-in mechanical auto-flush. Selected configuration: Length: 2440 mm; Waste Outlet Orientation: Left Hand.
- Model: B17710(2440L)
- Length: 2440 mm
- Waste Outlet Orientation: Left Hand
- Flushing arrangement: Flush-valve type with concealed sparge pipe
- Flush activation: Determined by the specified flush valve and control
- Integral mechanical tipping tray: Not fitted; see B17720 for this arrangement
Shortlist this configuration, add project notes and compare your options.
Product overview
The Basterfield B17710 is the flush-valve version of the stainless steel curved-back trough urinal. Water is supplied through a flush valve to the concealed sparge pipe, which distributes flushing water across the urinal. The chosen flush valve and control arrangement determine how a flush is initiated.
B17710 does not incorporate the drip-fed tipping tray fitted to B17720. For built-in mechanical automatic flushing, choose B17720: its tipping tray slowly fills through a drip cock, periodically tips over to release the collected water and flush the urinal, then returns to fill again. B17720 uses this mechanical filling cycle rather than infrared detection or electronic control.
B17710 has welded Grade 304 stainless steel construction, a satin finish, a curved back, a sloped drip ledge and a sound-deadened back panel. A concealed sparge pipe is supplied from the top inlet. Select the required length and a centre, left-hand or right-hand 70 mm waste outlet to suit the plumbing layout. Confirm the flush valve, inlet connection and end details when specifying the installation.
Features & benefits
Flush-valve operation
The urinal is arranged for flushing through a specified flush valve and control. B17720 is the separate model with an integral mechanical tipping tray.
Concealed sparge pipe
The concealed sparge pipe distributes flushing water across the urinal from the top water inlet.
Grade 304 stainless steel
Welded Grade 304 stainless steel construction with a satin finish and sound-deadened back panel.
Length and waste outlet choices
Select the required length and a centre, left-hand or right-hand 70 mm waste outlet to match the installation layout.
Installation & support
Technical information & documents
Product documents
Installation, specifications and warranty information.
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct data
Specifications & models
Specifications
Overall size envelope
- Length
- Configurable
- 915 mm
- 1065 mm
- 1220 mm
- 1370 mm
- 1525 mm
- 1675 mm
- 1830 mm
- 2135 mm
- 2440 mm
Dimension values vary by product configuration and are not freely interchangeable. Compare product variants to confirm valid combinations.
- Waste Outlet Orientation
- Configurable
- Left Hand
- Right Hand
- Centre
| Specification | Value | Configuration |
|---|---|---|
| Waste Outlet Orientation |
| Configurable |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | |||||
|---|---|---|---|---|---|
| B17710(0915C) | Floor Mounted Curved Back Urinal Flush Valve Type to B17710{PSS} 915mm Length Centre Outlet FM Curved Back Urinal 915mm Length Centre Outlet | 915 mm | Centre | View specifications
| |
| B17710(0915L) | Floor Mounted Curved Back Urinal Flush Valve Type to B17710{PSS} 915mm Length Left Hand Outlet FM Curved Back Urinal 915mm Length Left Hand Out | 915 mm | Left Hand | View specifications
| |
| B17710(0915R) | Floor Mounted Curved Back Urinal Type Fv to B17710(pss) 915mm Right Hand Outlet Floor Mounted Curved Back Urinal 915mm Length Rh | 915 mm | Right Hand | View specifications
| |
| B17710(1065C) | B17710(1065C) Curved Back Trough Urinal 1065mm Length Centre Waste Outlet Length: 1065. Waste Outlet Orientation: Centre. Curved Back Trough Urinal | 1065 mm | Centre | View specifications
| |
| B17710(1065L) | B17710(1065L)Curved Back Trough Urinal 1065mm Length Left-Hand Waste Outlet Length: 1065. Waste Outlet Orientation: Left Hand. Curved Back Trough Urinal | 1065 mm | Left Hand | View specifications
| |
| B17710(1065R) | Floor Mounted Curved Back Urinal Type FV to B17710(PSS) 1065MM Right Hand Outlet Floor Mounted Curved Back Urinal 1065 RH | 1065 mm | Right Hand | View specifications
| |
| B17710(1220C) | Floor Mounted Curved Back Urinal Flush Valve Type to B17710{PSS} 1220mm Length Centre Outlet Floor Mounted Curved Back Urinal 1220 Center | 1220 mm | Centre | View specifications
| |
| B17710(1220L) | Floor Mounted Curved Back Urinal Type FV to B17710(PSS) 1220MM Left Hand Outlet Floor Mounted Curved Back Urinal 1220 LH | 1220 mm | Left Hand | View specifications
| |
| B17710(1220R) | Floor Mounted Curved Back Urinal Type Fv to B17710(pss) 1220mm Right Hand Outlet Floor Mounted Curved Back Urinal 1220 Rh | 1220 mm | Right Hand | View specifications
| |
| B17710(1370C) | B17710(1370C) Curved Back Trough Urinal 1370mm Length Centre Waste Outlet Length: 1370. Waste Outlet Orientation: Centre. Curved Back Trough Urinal | 1370 mm | Centre | View specifications
|
