B17654(PT) Wall-Mounted Stainless Steel Toilet with Top Entry
1 / 2 product images

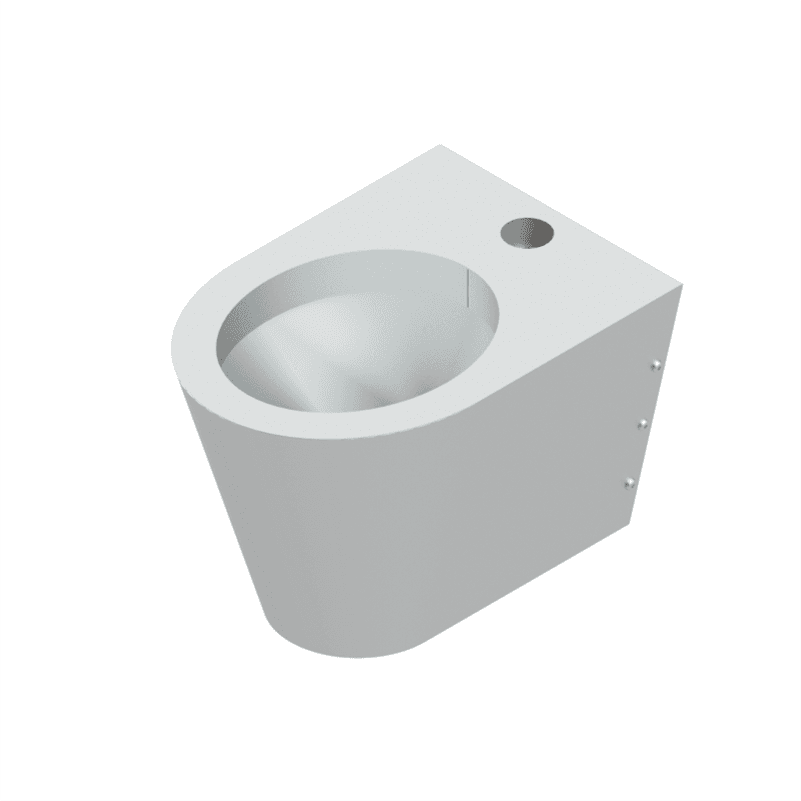

Wall-mounted stainless steel WC pan with P-trap and top-entry flush inlet for public, commercial and institutional washrooms. Toilet mounting holes are optional and omitted as standard. Excludes toilet seat and flush valve unless otherwise specified.
Typical lead time: ± 10-15 working days. Final timing will be confirmed in your quotation.
Configure & quote
Choose a configuration
Your configuration
Price on request
Toilet mounting holes: No holes
B17654(PT) is ready to quote.
Toilet mounting holes
Selected model
B17654(PT)
Model details
Overview
Stainless Steel Toilet Wall Mounted with P-Trap, Top-Entry Flush Inlet and No Toilet Mounting Holes. Excludes toilet seat and flush valve unless otherwise specified.
The B17654 top-entry WC pan is a wall-mounted stainless steel toilet with a P-trap and a top-entry flush inlet. It is intended for public, commercial, educational and institutional ablution facilities.
Toilet mounting holes are omitted by default. Select the optional standard toilet mounting holes when required; the selected item code gains the -H suffix. For the P-trap, top-entry version, B17654(PT) has no toilet mounting holes and B17654(PT-H) has standard toilet mounting holes.
Excludes toilet seat and flush valve unless otherwise specified. A flushing system is selected and priced separately. Compatible top-entry models offer the B17110(L380-DPB) 9 L stainless steel cistern or, as an alternative, the Walcro 106T exposed lever-operated flushing valve with a 25 mm inlet. Select the flushing arrangement for the available water supply and installation layout.
Coordinate the wall support, waste outlet, flushing connection and selected seat with the site layout. Specify the mounting-hole option when ordering.
Specifications
B17654(PT). Stainless Steel Toilet Wall Mounted with P-Trap, Top-Entry Flush Inlet and No Toilet Mounting Holes. Excludes toilet seat and flush valve unless otherwise specified.
- Model: B17654(PT)
- Material: Stainless steel
- Mounting: Wall mounted
- Trap type: P-Trap
- Flushing inlet: Top Entry
- Toilet mounting holes: No holes (standard)
- Excluded: Toilet seat and flush valve unless otherwise specified
- Optional flushing: B17110(L380-DPB) cistern or Walcro 106T valve
Share this model with a colleague or reopen its specifications later.
Shortlist this configuration, add project notes and compare your options.
Product overview
The B17654(PT) top-entry WC pan is a wall-mounted stainless steel toilet with a P-trap and a top-entry flush inlet. It is intended for public, commercial, educational and institutional ablution facilities.
Toilet mounting holes are omitted by default. Select the optional standard toilet mounting holes when required; the selected item code gains the -H suffix. For the P-trap, top-entry version, B17654(PT) has no toilet mounting holes and B17654(PT-H) has standard toilet mounting holes.
Excludes toilet seat and flush valve unless otherwise specified. A flushing system is selected and priced separately. Compatible top-entry models offer the B17110(L380-DPB) 9 L stainless steel cistern or, as an alternative, the Walcro 106T exposed lever-operated flushing valve with a 25 mm inlet. Select the flushing arrangement for the available water supply and installation layout.
Coordinate the wall support, waste outlet, flushing connection and selected seat with the site layout. Specify the mounting-hole option when ordering.
Features & benefits
Wall-mounted WC pan
Stainless steel pan for wall-mounted installation.
Top-entry flushing option
P-trap top-entry models can use the optional B17110(L380-DPB) cistern or Walcro 106T valve.
No toilet mounting holes as standard
The default item has no toilet mounting holes. Select the optional holes version to add -H to the item code.
Seat and flush valve excluded
Excludes toilet seat and flush valve unless otherwise specified.
Product data
Specifications & models
Specifications
- Toilet mounting holes
- Configurable
- No holes
- Standard toilet mounting holes
- Flushing Inlet Orientation
- Fixed
- Top Entry
- Trap Type
- Fixed
- P-Trap
| Specification | Value | Configuration |
|---|---|---|
| Toilet mounting holes |
| Configurable |
| Flushing Inlet Orientation |
| Fixed |
| Trap Type |
| Fixed |
Available models & compare variants
Compare your preferred models
Select two to four models below. Your selection is kept when you search, filter or change pages.
| Price & actions | ||||||
|---|---|---|---|---|---|---|
| B17654(PT-H) | Stainless Steel Toilet Wall Mounted with P-Trap, Top-Entry Flush Inlet and Standard Toilet Mounting Holes. Excludes Toilet Seat and Flush Valve Unless Otherwise Specified. Wall-Mounted WC Pan, P-Trap, Top Entry -H | Standard toilet mounting holes | Top Entry | P-Trap | View specifications
| |
| B17654(PT) | Stainless Steel Toilet Wall Mounted with P-Trap, Top-Entry Flush Inlet and No Toilet Mounting Holes. Excludes Toilet Seat and Flush Valve Unless Otherwise Specified. Wall-Mounted WC Pan, P-Trap, Top Entry | No holes | Top Entry | P-Trap | View specifications
|
Specification support
Need a second set of eyes?
Installation & support
Technical information & documents
Product documents
Download installation, specification and warranty PDFs.
Product specification sheet
Dimensions, materials and product data.
PDF
Product warranty
12-month warranty and claims information.
PDF
Need a drawing, CAD file or compliance certificate?
Request technical filesProduct FAQ
